Box type electric pressure calibration table alkd102a

وصف

Overview

Quick Details

Warranty:: 1 years

Place of Origin:: Jiangsu, China

Brand Name:: AILEIKE

Model Number:: ALKD102A

Pressure range::: - 0.095 ~ 2.5MPa

Current measurement range::: 0 ~ 22mA

DC output::: 24 VDC

Accuracy::: 0.05% F.S (pressure) 0.05% (current)

Temperature range::: 5 ~ 50 ℃

Power supply voltage::: AC220V

Relative humidity::: no more than 80% RH

Overload capacity::: 1.2 ~ 1.5 times of full scale

Overall dimension::: 360 * 260 * 290mm

Weight::: 8 kg

Packaging & Delivery

Lead Time:

Quantity(Pieces)	1 - 1	2 - 3	4 - 5	>5
Est. Time(days)	5	5	7	To be negotiated

Product Description

Specification

item	value
Warranty	1 years
Place of Origin	China
	Jiangsu
Brand Name	AILEIKE
Model Number	ALKD102A
Pressure range:	- 0.095 ~ 2.5MPa
Current measurement range:	0 ~ 22mA
DC output:	24 VDC
Accuracy:	0.05% F.S (pressure) 0.05% (current)
Temperature range:	5 ~ 50 ℃
Power supply voltage:	AC220V
Relative humidity:	no more than 80% RH
Overload capacity:	1.2 ~ 1.5 times of full scale
Overall dimension:	360 * 260 * 290mm
Weight:	8 kg

Packing & Delivery

Packing：Standard packaging
Port: any port in China, etc
Delivery time: 5-7 working days after receiving the deposit
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Functional features

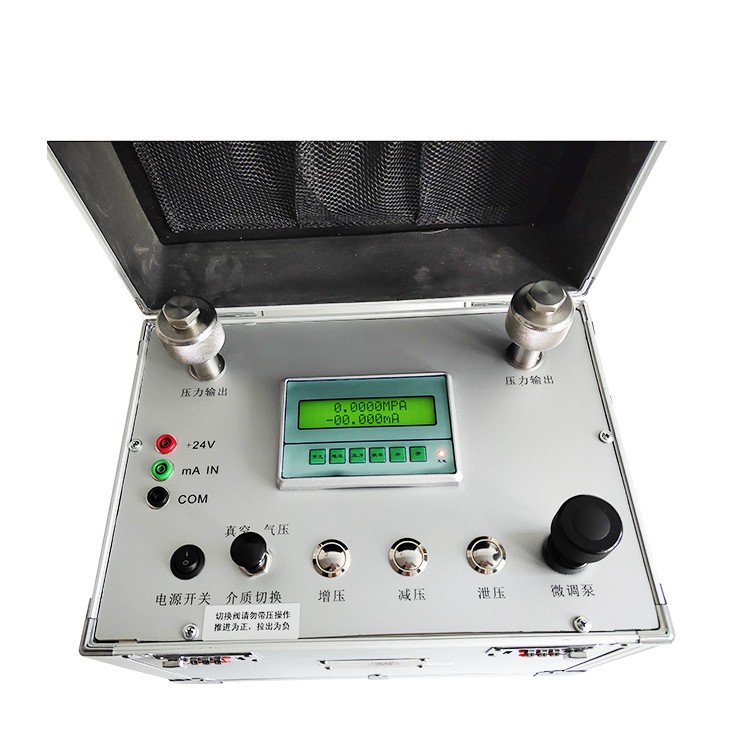

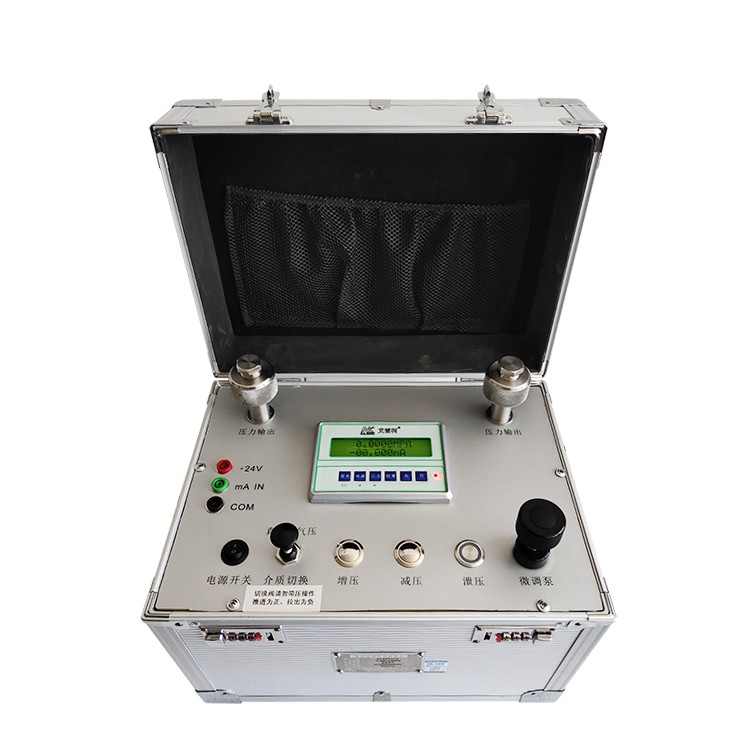

Alkd series electric pressure calibration bench is a portable instrument with AC power supply. It can measure current while measuring pressure and display pressure and current at the same time. The instrument is equipped with 24 VDC output. Before pressurization, the panel is equipped with pressure and pressure reducing buttons. The electric calibrator has beautiful appearance, exquisite structure and simple operation. It is an ideal standard for calibrating pressure transmitter, differential pressure transmitter, spring tube type ordinary (precision) pressure gauge, pressure vacuum gauge and pressure detector.

he high-performance microprocessor continuously corrects the zero point and linearity of the instrument to ensure that the zero point and accuracy of the instrument have good repeatability and stability, and the measurement accuracy is high.

High performance CPU and temperature sensor are used to automatically compensate the temperature drift of the instrument to ensure wide temperature range under accuracy. The pressure system adopts ultra quiet air compressor, which has the characteristics of high pressure speed and long service life under noise.
