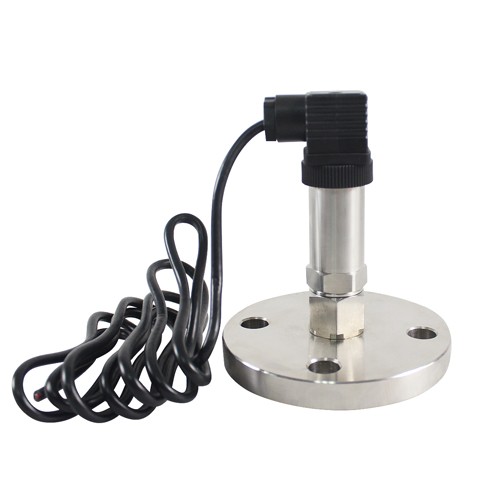

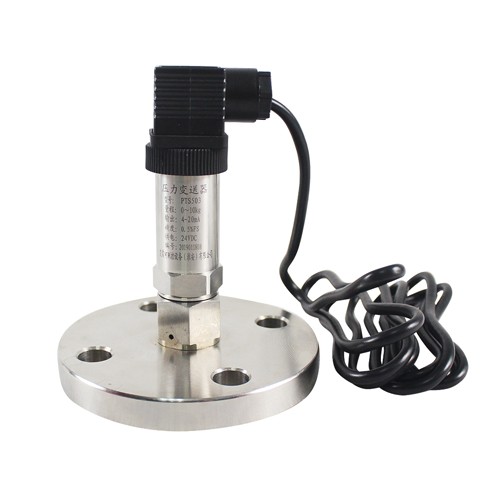

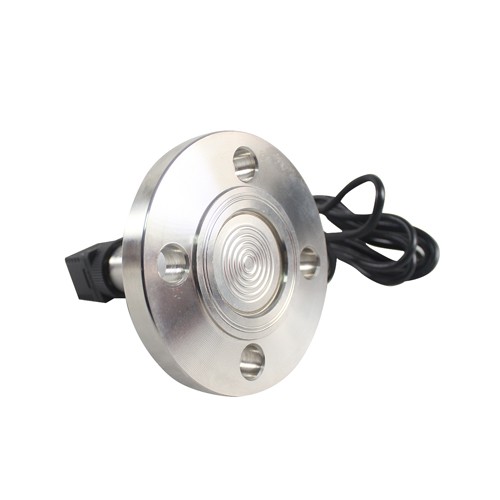

Delicate diaphragm pressure transmitter alkpts503mf

وصف

Compact pressure transmitter, using metal diffusion silicon sensor, metal ductility, the product is composed of sensor and integrated electronic circuit and stainless steel housing. Widely used in air conditioning equipment, constant pressure water supply, automatic control, refrigeration equipment, water treatment system, hydraulic system, construction machinery, fermentation tank process detection, etc.

Technical indicators:

Range: -100kPa ~0~ 100MPa

Output signal: 4~20mA

Power supply: 24VDC

Operating temperature: -30~85℃

Pressure interface: M20*1.5 (default)

Protection grade: IP65

Accuracy grade: 0.5%F.S

Flange specifications: DN25 DN32 DN40 DN50 DN65, etc. (according to on-site requirements)

Measurement medium: all kinds of liquids and gases
