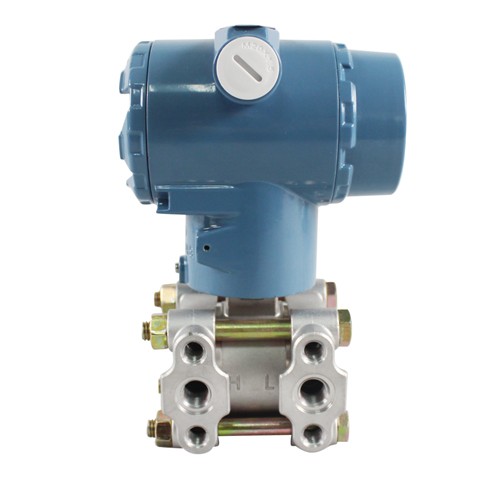

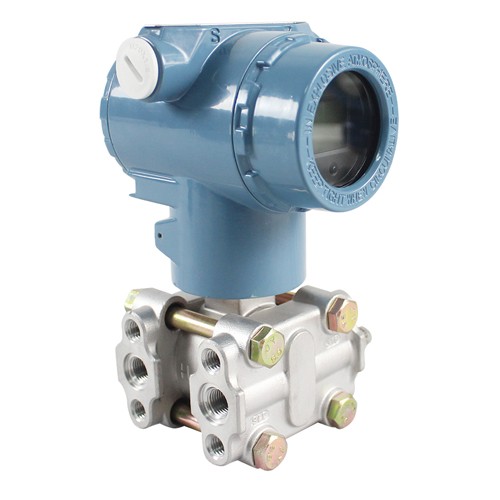

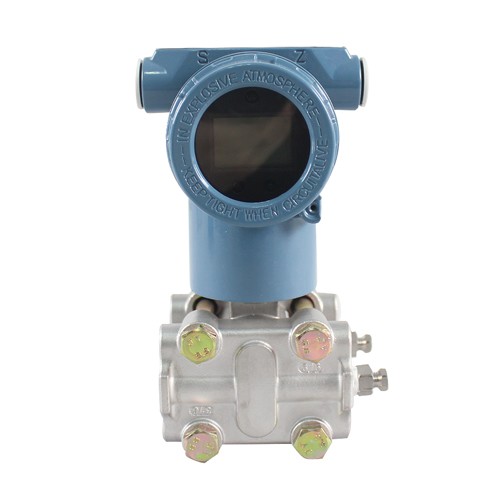

Differential pressure transmitter alkdpe01

Differential pressure transmitter alkdpe01

وصف

The differential pressure transmitter ALKDPE01 is used to measure the liquid level, density and pressure of liquid, gas or steam, and then convert it into 4 ~ 20mA DC signal output. The intelligent type can communicate with Hart hand manipulator, and can be set by it. The on-site adjustable intelligent differential pressure transmitter is a new product developed by our company according to the on-site requirements, through the keys to achieve on-site zeroing, configuration and other operations.

The characteristics of intelligent differential pressure transmitter

Small and beautiful appearance, light weight

Scale migration function, scale migration ratio 100:1

Damping: 0 ~ 32 seconds adjustable, step 0.1 seconds

Zero and full degree compensation and correction function

Output current multi-point correction

Display multiple monitoring variables, optional pressure unit

Output current square function.

With self - diagnosis and fault alarm output function.

With EEPROM non - volatile memory, not afraid of power loss and loss of data with the original calibration data recovery function.

Remote, parameter setting and function configuration are realized through HART communication hand operator and button.

Performance index of intelligent differential pressure transmitter
