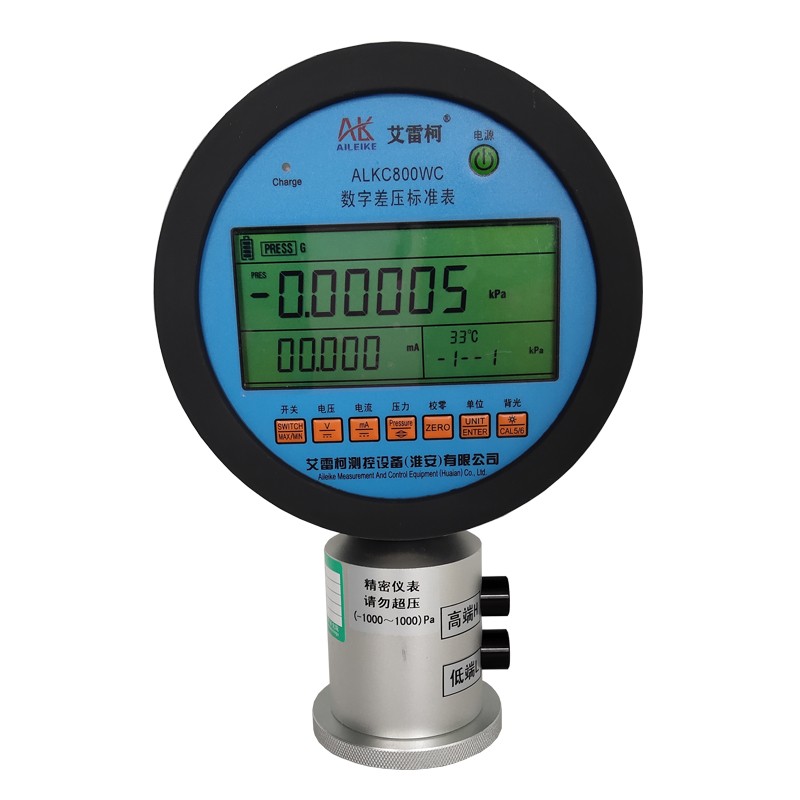

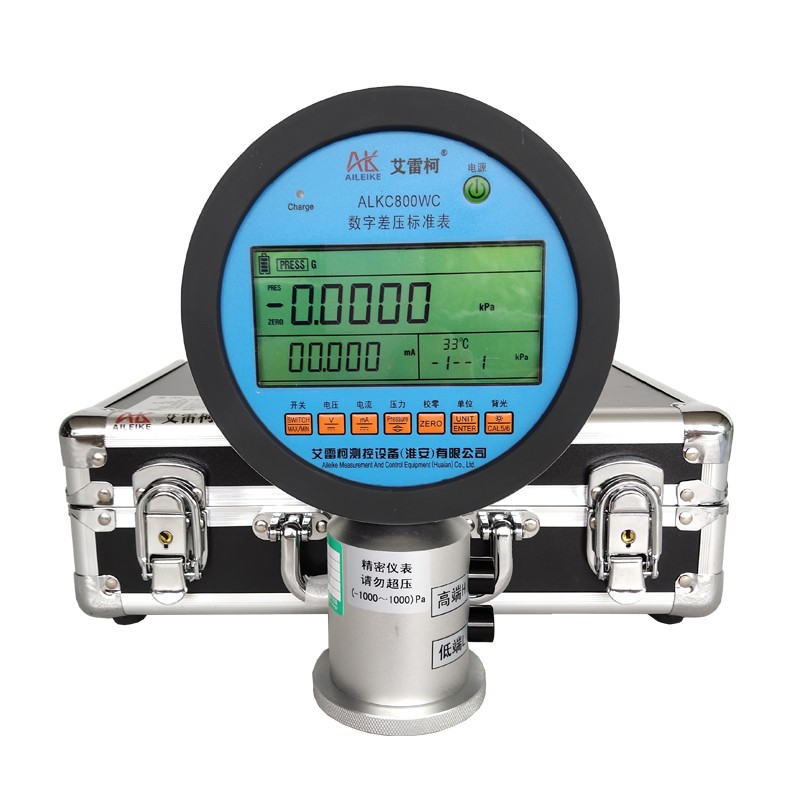

Digital differential pressure standard meter alkc800wc

وصف

The Digital differential pressure standard meter alkc800wc has optional 5-digit and 6-digit digital display, which can be used in industrial application. It can display current, voltage and pressure fluctuation. The pressure gauge is equipped with 11 optional pressure units, backlight and reset function.

Place of origin: Jiangsu, China
Brand: aileike
Model: alkc800wc
Type: pressure gauge
Pressure range: - 60 ~ 60kpa
Accuracy: ± 0.05% FS
Dimensions: 155 * 47mm
Net weight: 1000 g
Place of work: field of work or laboratory
Pressure unit: 11 different pressure units are available

Digital differential pressure standard meter is a kind of multifunctional instrument. When measuring pressure, it can measure ± 25madc current or ± 50VDC voltage. The pressure switch can automatically test and record the pressure switch value. The output is 24 V, which can be used as the power supply of 4-20 mA two-wire transmitter.

11 pressure units, PA, (kPa), mmHg, kgf / cm2, mmh2o, psi, mbar, bar, MHG, mh2o, inHg, inh2o

The 24 bit a / D converter and microprocessor are used to continuously calibrate the performance and technical indexes of the instrument to ensure that the instrument can be used in a wide temperature range for a long time without affecting the accuracy of the instrument. The digital calibration of pressure, current and voltage does not need any hardware adjustment. Zero and full scale can be adjusted directly on the panel.
