وصف

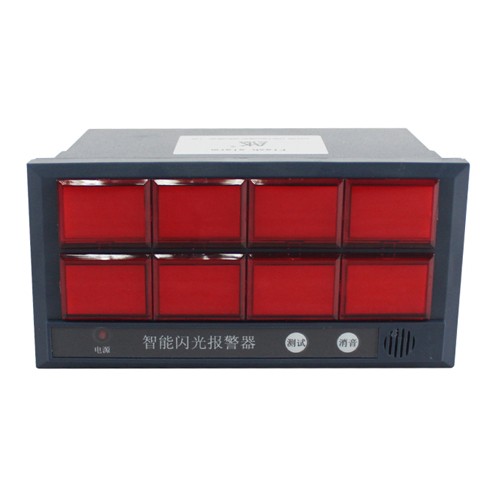

The intelligent flash alarm xxs-08 is generally installed on the instrument panel in the control room. Its input signal is contact type, which can be used together with various electric contact type control and detection instruments to indicate that the parameters exceed the limit in the production process, so as to attract the attention of the operators and ensure the production safety. Due to the standard structure and CMOS integrated circuit, the instrument is small in size, Stable performance.
parameter
1. AC power supply voltage: 220 V ± 10%, frequency: 50 Hz ± 5%.
2. Ambient temperature: - 10 ℃ ~ + 50 ℃, relative temperature ＜ 90%.
3. The line resistance between the contact element and the alarm shall not exceed 50 Ω.
4. The external sound alarm is AC 220 V, 8 W electric bell or buzzer (provided by the user).
5. Contact capacity: 1a, AC non inductive load.
6. The energy consumption power of the instrument is 10W (excluding the electric bell).
7. Overall dimension 160 * 80mm
