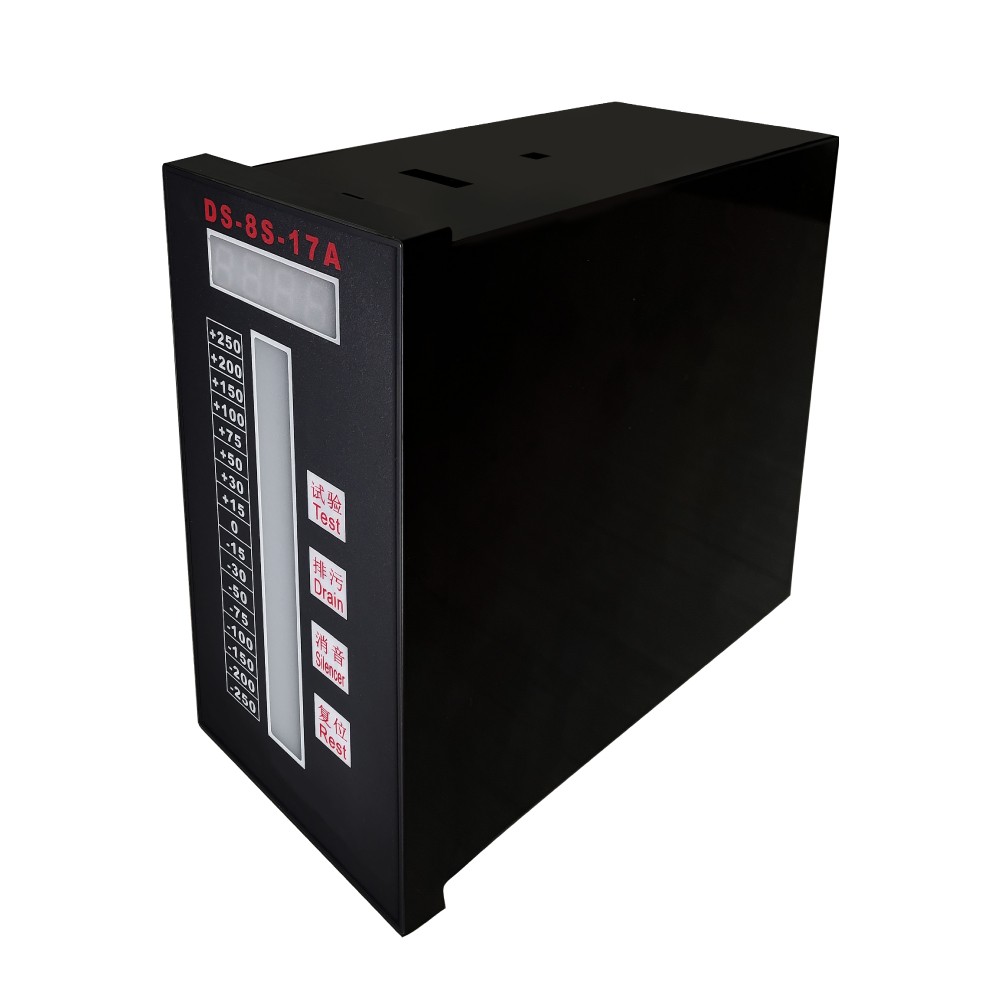

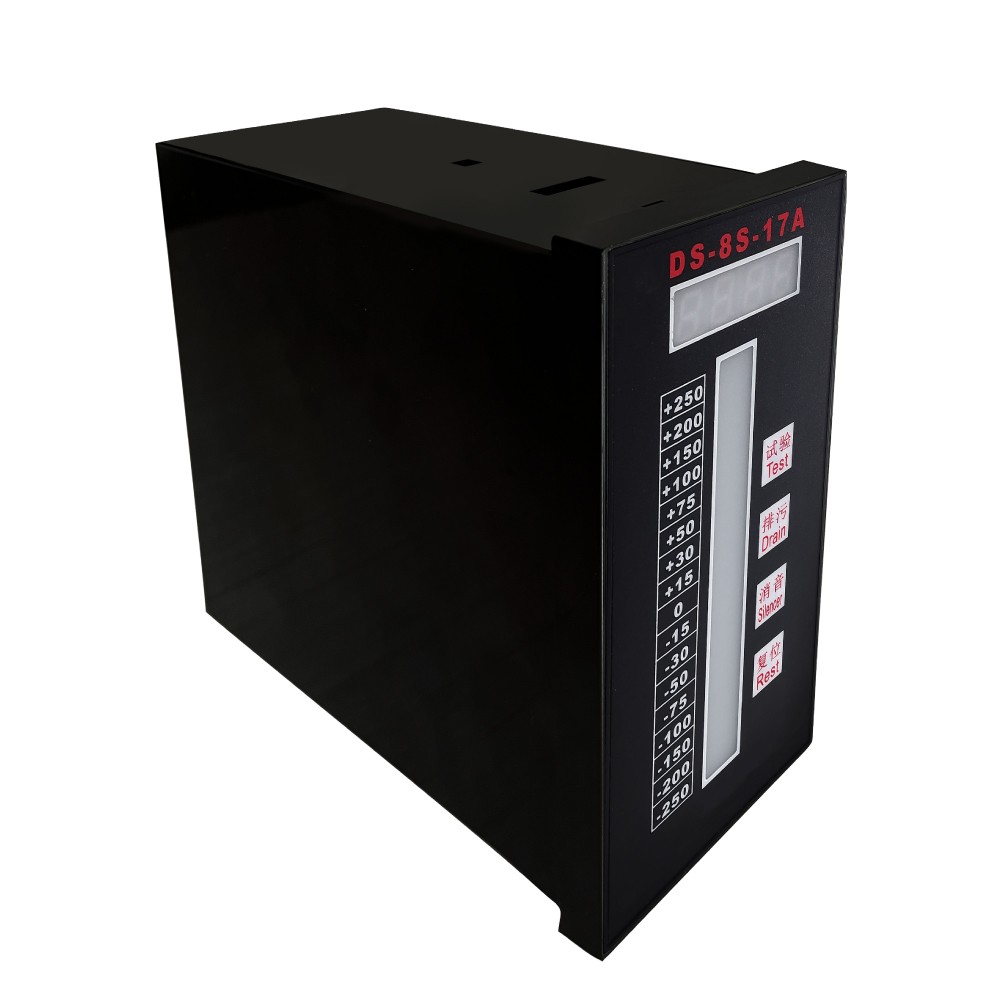

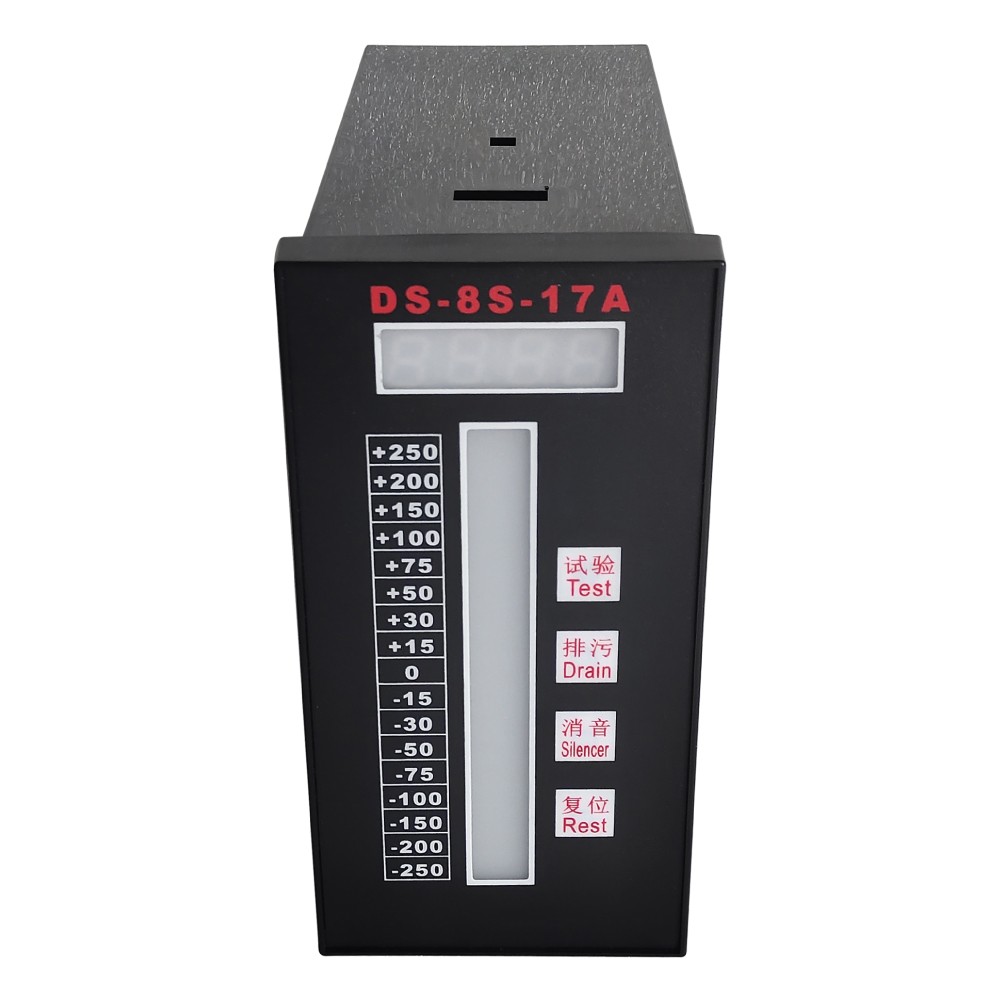

Electric contact level gauge

Product name

Electric contact level gauge

Model

DS-8S-17A

Liquid resistance range

The 0-500K instrument is set to around 0-150K at the factory

Analog display

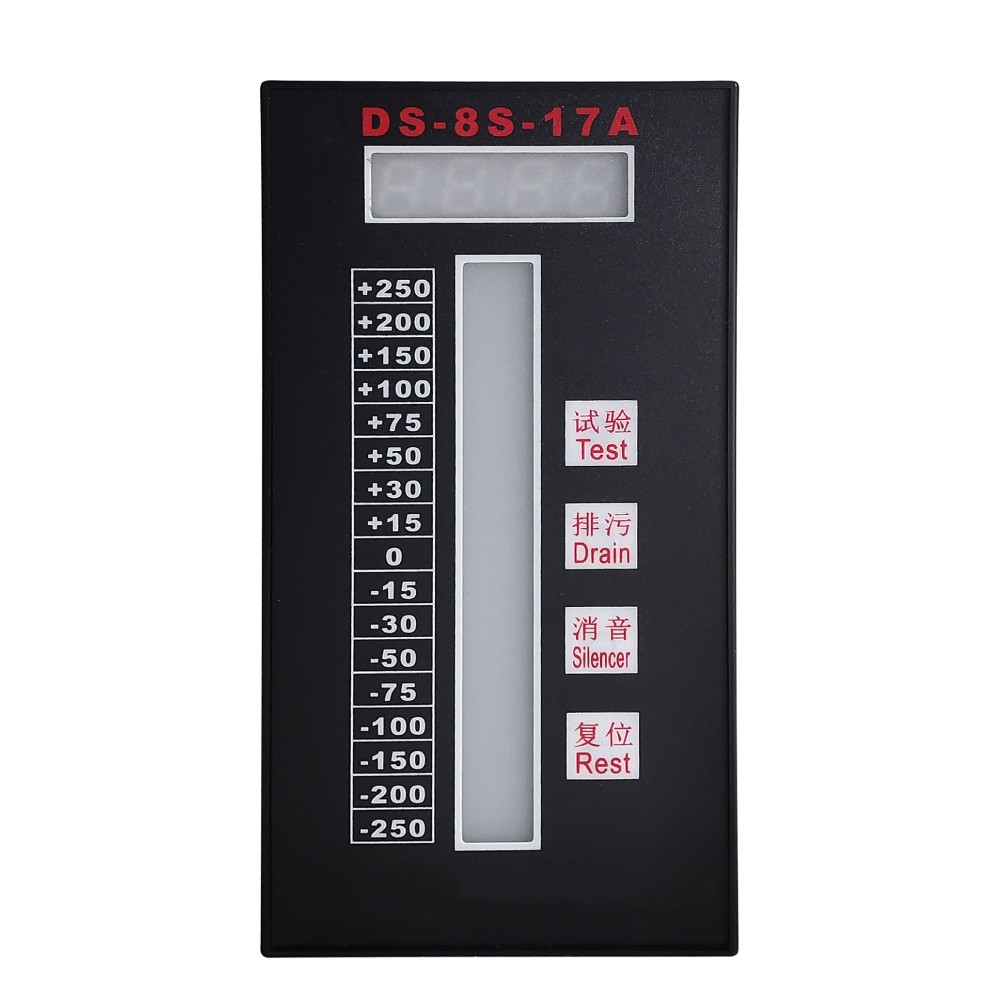

Dual color LED light column display, combined with ruler scale to display real-time liquid level value

Digital display

Corresponding simulated display values display numerical values

Alarm method

The upper and lower limits exceed the normal liquid level

Input method

a. Electric contact signal

b. Analog signal 4-20mA: 0~10mA:  1~5V

Analog signal output

4~20mA；0~10mA:1~5V

Alarm output

contact capacity

AC220V，3A

Supply voltage

AC220V土10% 50Hz士1Hz

Power consumption

15VA

Instrument working conditions

The ambient temperature ranges from 10 ℃ -+40 ℃; Relative humidity of 85%; Non corrosive gas

Instrument opening size

75×152mm

Product weight

Approximately 0.75Kg

Product size

80×160×180mm

Package weight

Approximately 0.9Kg

Package size

100×200×200mm

Outer packaging weight

Approximately 1.9kg (packaging material is cardboard box)

Product packaging size

150×250×250mm
