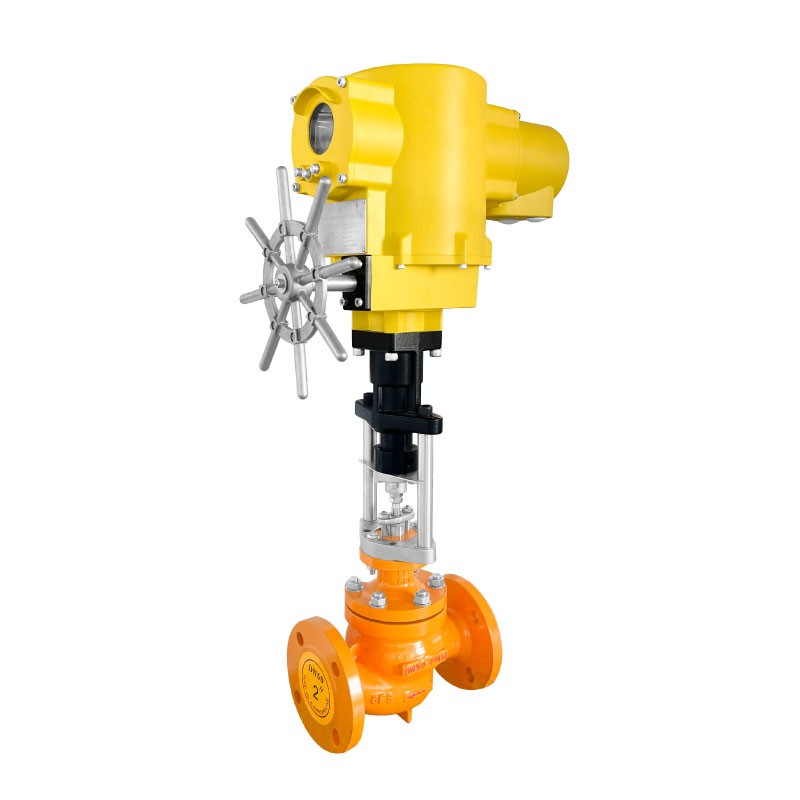

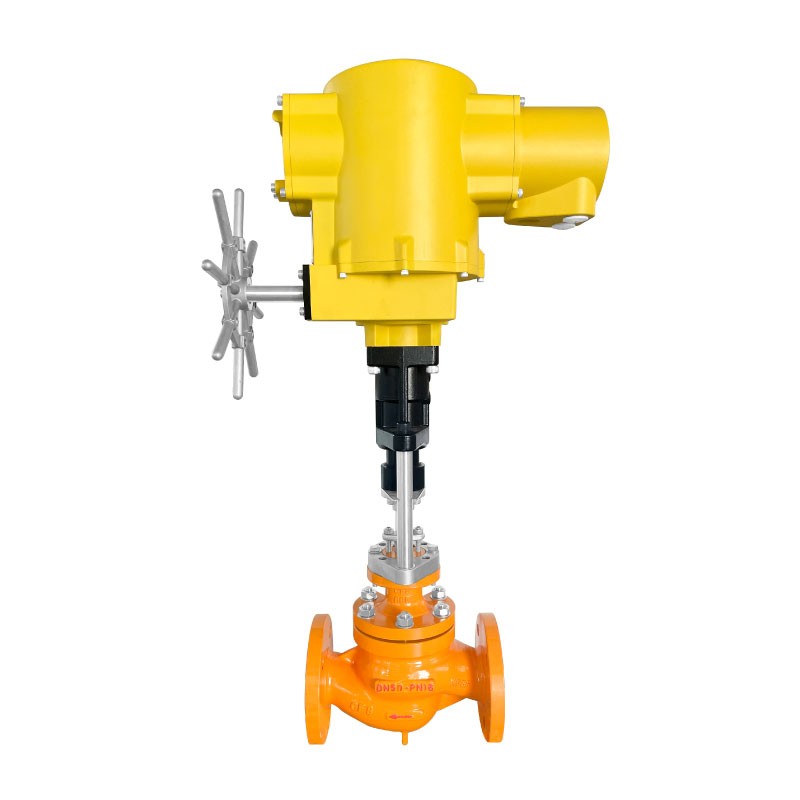

Electric porous sleeve regulating valve ALKZDLM

Electric porous sleeve regulating valve ALKZDLM

البند المنتج：ALKZDLM

وصف

Product Features

1、The electric porous regulating valve adjusts the flow rate by changing the aperture size. When the medium passes through the valve, the flow rate will be precisely adjusted according to the size of the aperture.

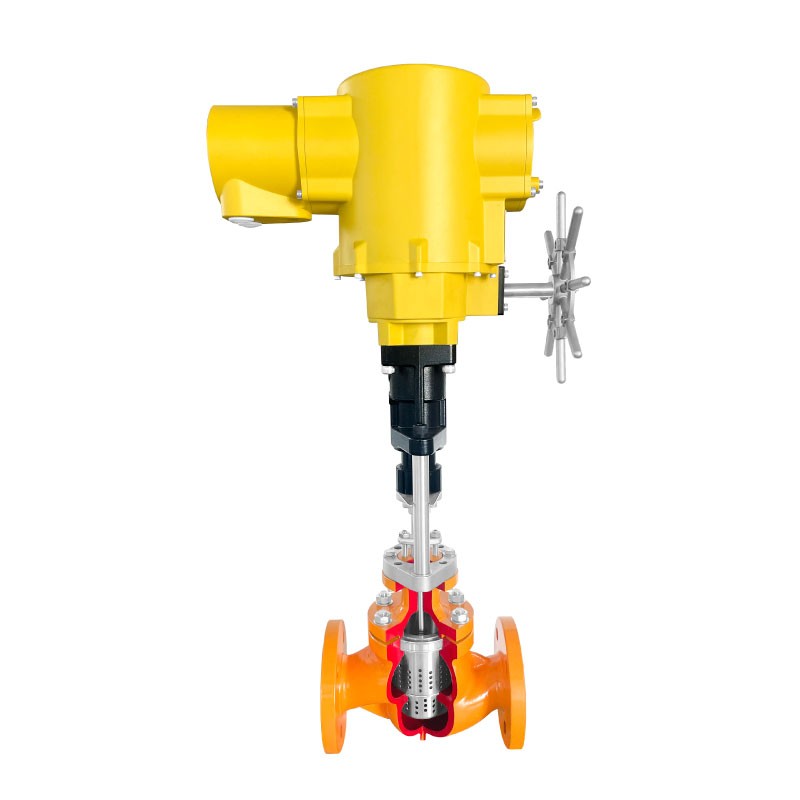

2、Composed of components such as valve body, valve core, locating pin, and orifice plate. This structure enables the valve to have high stability and reliability when regulating flow.

3、Electric porous regulating valves can be automatically opened and closed through remote control or automatic control systems, greatly improving production efficiency.

Product Display
01	02	03	04
Flange connection	Electric actuator	Wheel type precis- ion handwheel	Precision cast Thickened valve body
Made of high-quality materials,has high mechanical strength and Scalability, high strength, High temperature resistance, not easy to rust	Contains built-in controller Module integrated structure	Reasonable design,simple structure,easy to operate, long service life	The valve body is made of stainless steel, thickened, corrosion-resistant and rust proof, with tight contact and no leakage, reducing wear and tear

Function Display

Electric actuator

High thrust output shaft

Precision cast

thickened valve body

Liquid crystal

display panel

External

Inductive button

Wheel type

precision

handwheel

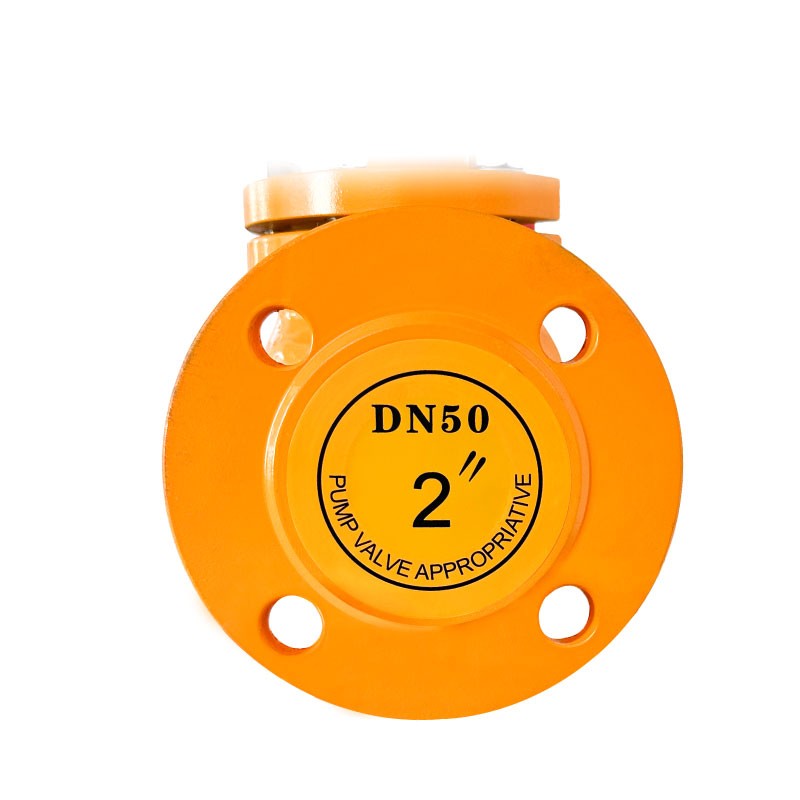

Flange

connection

Product Information
Customized processing	Yes
Product name	Electric porous sleeve regulating valve
Nominal pressure	1.6MPa~4.0MPa
Nominal diameter	DN25~DN450
Drive mode	Electric
Body material	Cast steel/stainless steel
Connection method	Flange connection
Temperature	-20℃~250℃
Cover form	Bolt compression type
Gasket	Spiral wound gasket
Upper valve cover form	Standard, heat sink, extended
Operation mode	Electric on/off
Packing material	Reinforced PTFE V-shaped packing and flexible graphite
