Product Features
1、It consists of an electronic electric actuator and a single seat regulator. The electric actuator has a servo system inside, which does not require a separate servo amplifier. It can be controlled with input signals and power supply, and the connection is simple.
2、The electric single seat regulating valve is suitable for situations with small pressure difference, high medium viscosity, or slight particle impurities.

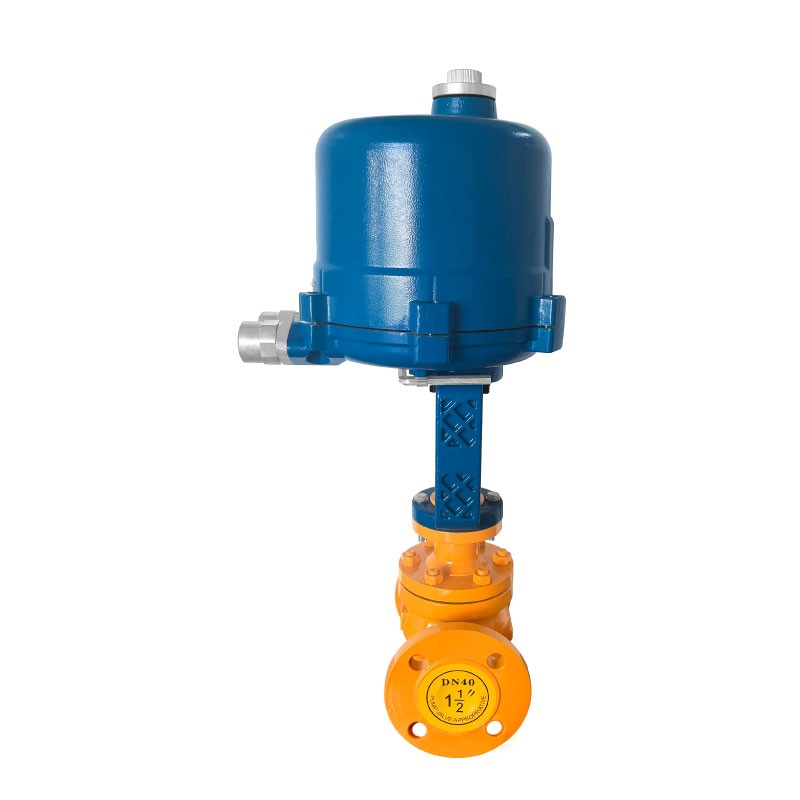

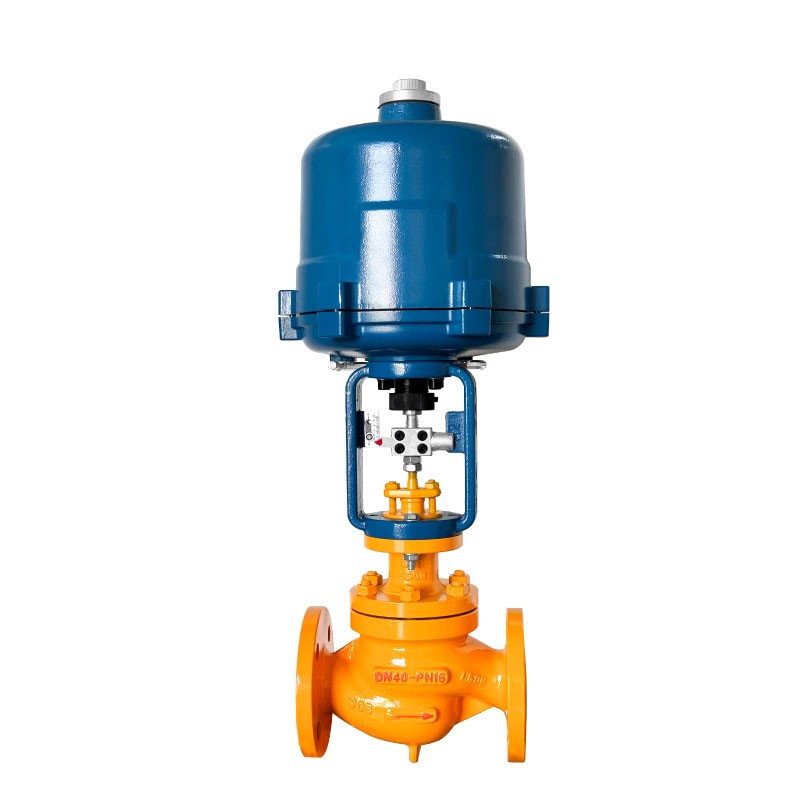

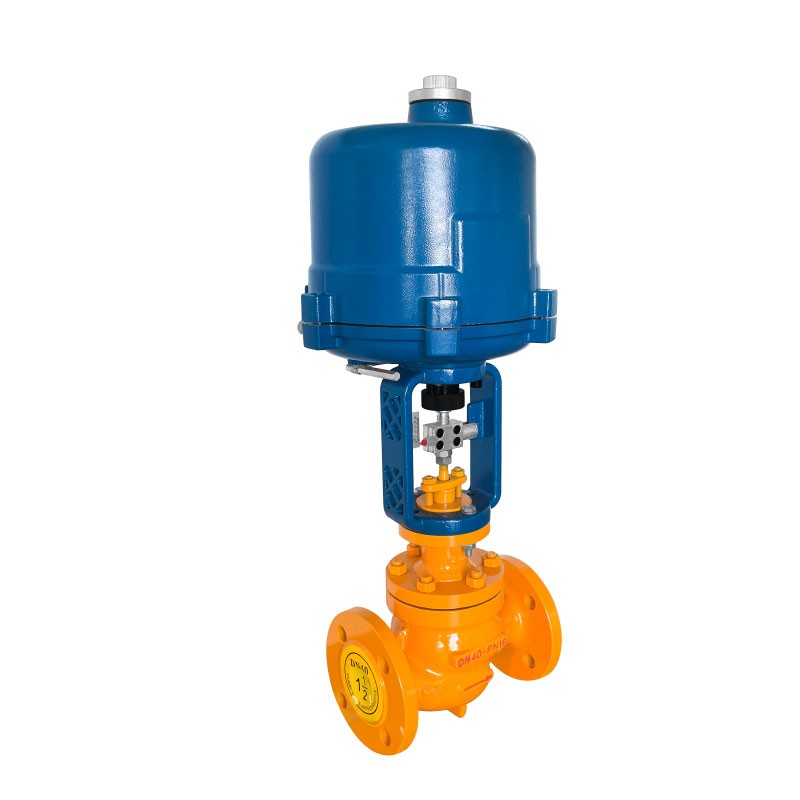

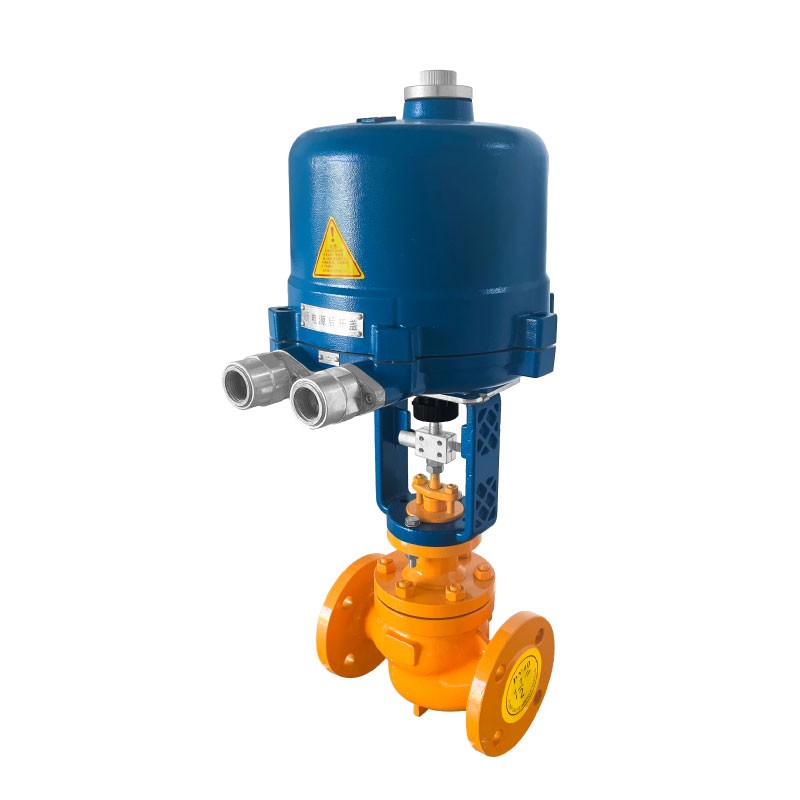

Product Display
01
02
03
04
Flange connection
Electric actuator
Opening display
Precision cast thickened
valve body
Made of high-quality
materials,has high mechanical strength and
scalability, high strength,
High temperature resistance, not easy to rust
Regulating device input electrical signal
Safe and explosion-proof, with
excellent stability
Clear scale to prevent
Wear and tear and safety issues occur
The valve body is made of 304 stainless steel,
Thickened valve body,
corrosion-resistant
and rust resistant,
Close contact without
leakage,
Reduce wear and tear
Function Display
01
02
03
04
05
Electric actuator
Output shaft
Stainless steel
valve body
Travel ruler
Flange connection
Product Information
Customized processing
Yes
Product name
Electric single seat regulating valve
Nominal pressure
1.6MPa~6.4MPa
Nominal diameter
DN25~DN300
Drive mode
Electric
Body material
Cast steel/stainless steel
Connection method
Flange connection
Temperature
-20℃~200℃
Cover form
Bolt compression type
Input signal
4~20mA
Supply voltage
220V
Adjustable range
50：1
Traffic characteristics
Equal percentage, linear
Packing material
V-shaped PTFE packing, graphite
