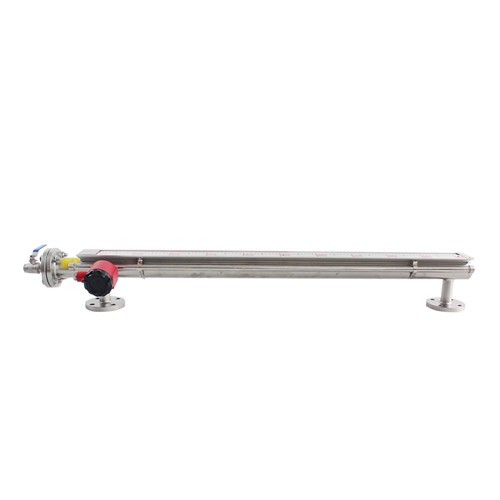

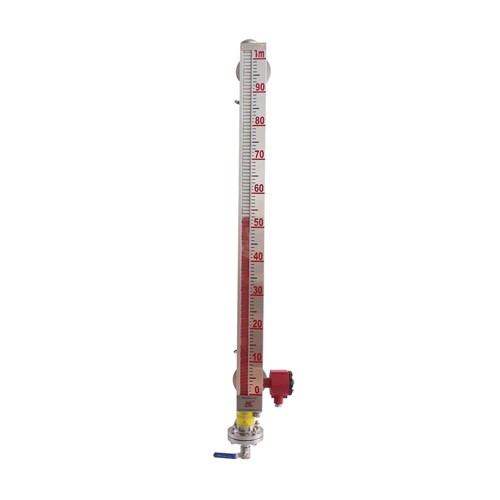

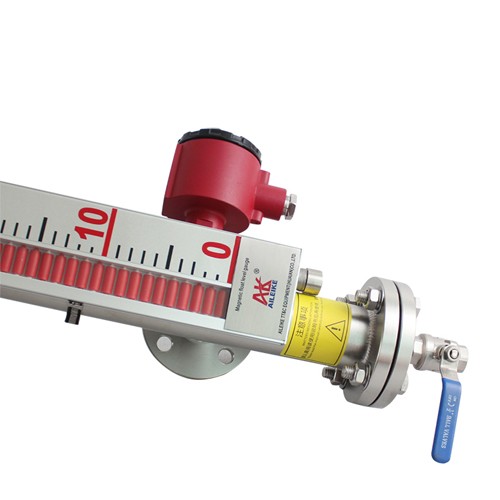

Magnetic flip plate liquid level meter is used in low temperature to high temperature, vacuum to high pressure and other
environments. It is an ideal liquid level measurement product in petroleum, chemical industry and other industrial departments.
Depending on the location of the installation in the container, two forms of side loading and top loading are provided. Depending
on the working medium, stainless steel andABS、PP-RThree kinds of engineering plastics, of whichABS、PP-RThe material is suitable
for corrosive media such as acid, alkali and so on.
|
Installation form content |
Side mounting type |
Top mounting type |
|
|
Installation spacing |
Stainless steel |
500 ~ 5000 (mm) |
500-2500 (mm) |
|
(range of measurement) |
ABS 、 PP-R |
500 ~ 4000 (mm) |
|
|
Working pressure |
0.6,1.6,2.5,4.0MPa |
0.6,1.6,2.5MPa |
|
|
Dielectric density |
>0.6g/cm3 |
>0.76g/cm3 |
|
|
Flange connection |
Stainless steel |
Flange 20-40 (DN20 PN1.0-4.0) |
Flange 200-25 (DN200 PN1.6) |
|
(GB9119-88) |
(GB9119-88) |
||
|
ABS |
Flange 20-10 (DN20 PN1.0) |
Flange 200-6 (DN200 PN0.6) |
|
|
(GB9119-88) |
(GB9119-88) |
||
|
Main material |
ICr18Ni9Ti, ABS, PP-R (work pressure 0.6MPa) |
||
|
Dielectric temperature |
-40 ~ 100 ℃ (ABS, PP-R:-40~80 ℃) |
||
|
Ambient temperature |
-40 degrees Celsius / 70 ℃ |
||
|
Indication error |
±100mm |
||
|
Dielectric viscosity |
≤ 1st (10-4m)2/ s) |
||
|
Upper and lower limits |
1. Control sensitivity: 10mm |
||
|
2. Output contact capacity: AC220V 2A |
|||
|
3. Contact life: 5 × 104 times |
|||
|
4. Explosion-proof characteristics: iaIICT4 intrinsically safe type |
|||
|
Telex, telex |
1. Accuracy: ±1.5% |
||
|
2. Output load: 750 Ω |
|||
|
3. Output signal: 0~10mA output, 220V AC power supply |
|||
|
4~20mA output, 24V DC two-wire system |
|||
|
4. Explosion-proof characteristics: iaIICT4 intrinsically safe type |
|||
