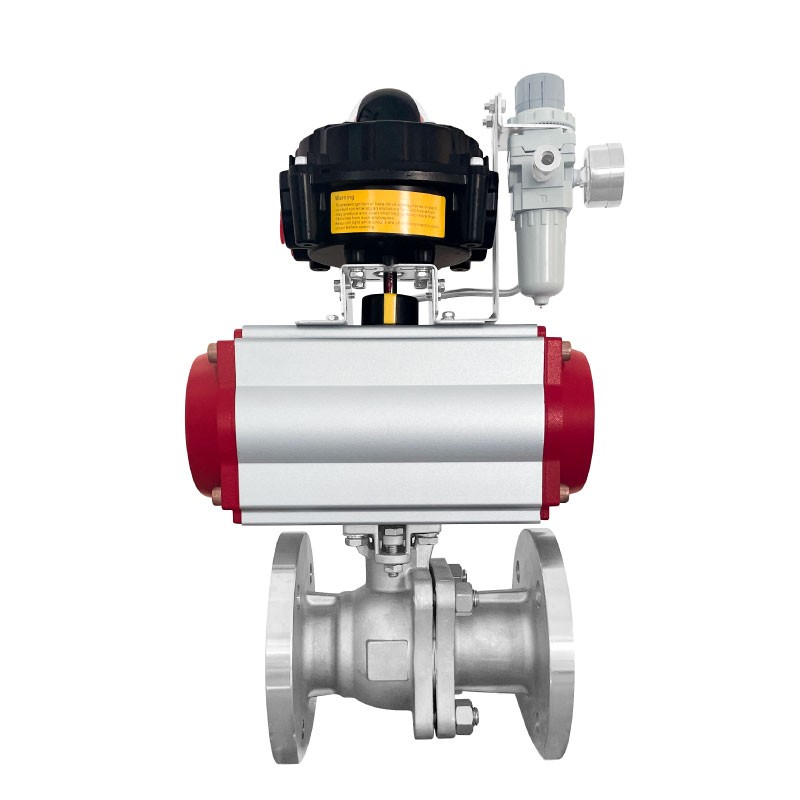

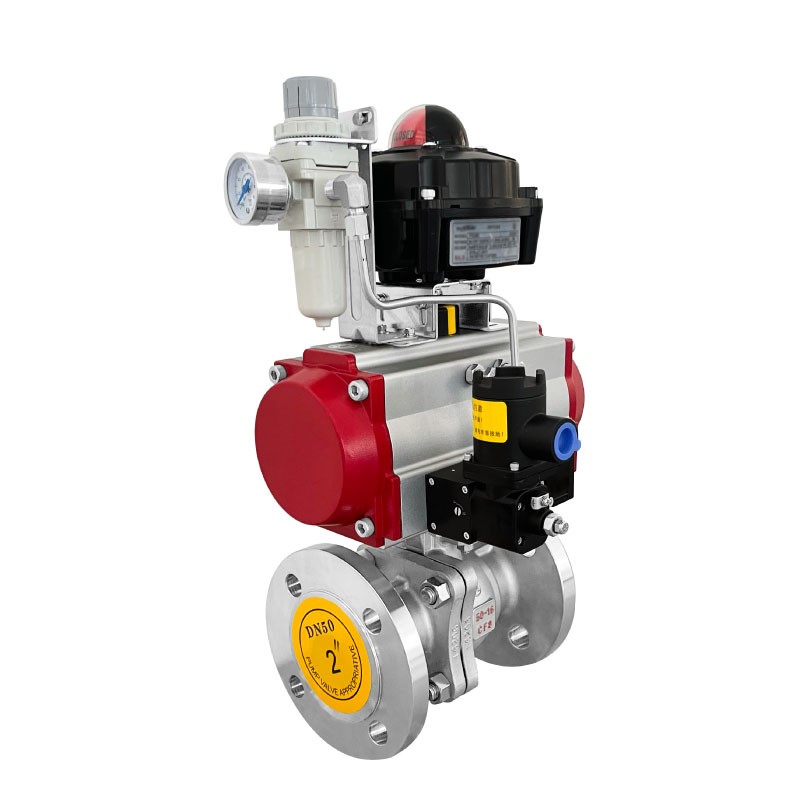

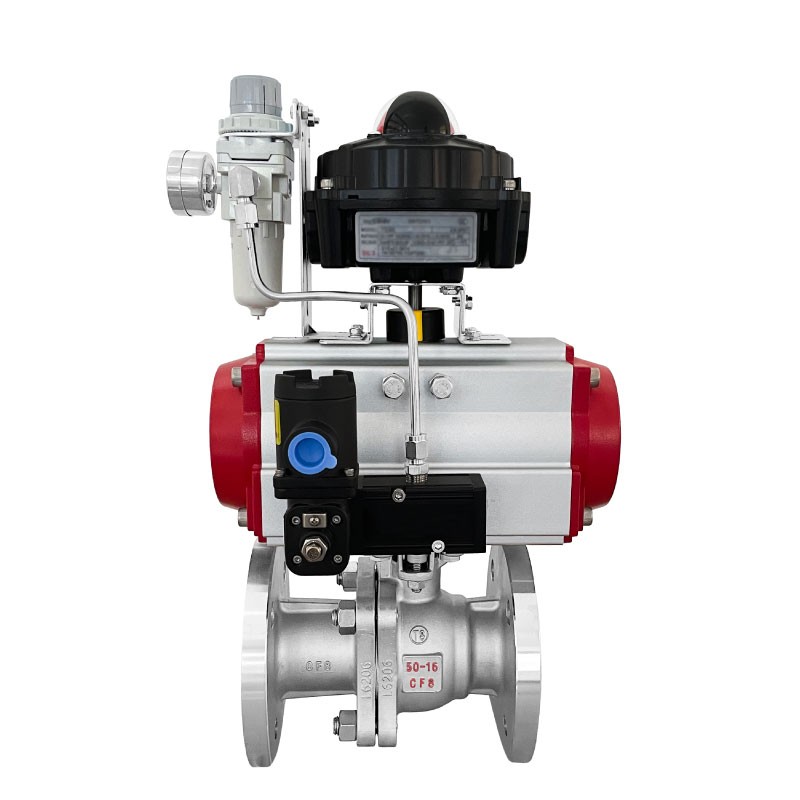

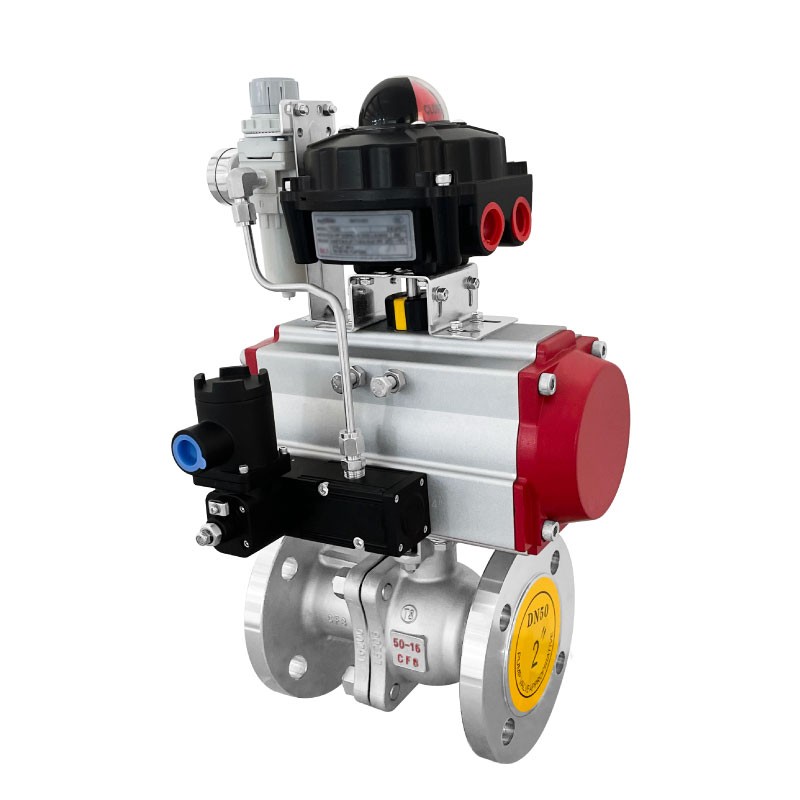

Pneumatic V-shaped ball valve

البند المنتج：ALK

وصف

Product Features

Low fluid resistance, ball valve is one of the valve types with low fluid resistance.

The actuator adopts high-performance cylinder piston actuator, with a simple structure and large output torque. Ball valves are suitable for controlling high-pressure or high-pressure differential fluids containing fibers and particles.

The valve stem seal is reliable. As the valve stem only rotates without lifting, the packing seal of the valve stem is not easily damaged, and the sealing ability increases with the pressure of the medium.

Product Display
01	02	03
Stainless steel flange	Pneumatic actuator	Precision cast thickened valve body
Stainless steel flange, earthquake resistant stable, with high mechanical strength and with high ductility and strength, High temperature resistance, not easy to rust	Gear type dual piston, High output torque, low friction coefficient, flexible rotation, and small volume	The valve body is made of stainless steel material,corrosion and rust resistance, long service life

Function Display

Supporting instrument

Explosion proof

reply device

Pneumatic

actuator

Flange

connection

Filter

Explosion-proof

Solenoid valves

Precision cast

thickened

valve body

V-ring ball valve core

The edge of the V-shaped ball valve core is V-shaped, and there is a V-shaped opening on the ball. With the rotation of the ball, the flow rate can be adjusted using the change of the middle opening area, and it can cut off impurities in the fluid and close the control suitable for pulp, mortar, and viscous fluids.

Product Information
Customized processing	Yes
Product name	Pneumatic V-type ball valve
Nominal pressure	1.6MPa~6.4MPa
Nominal diameter	DN18~DN200
Drive mode	Pneumatic
Body material	Cast steel/stainless steel
Connection method	Flange connection
Temperature	-40~80℃
Core corner	0 °± 4 ° to 90 °± 4 ° (adjustable)
Operating Pressure	Double acting 0.2~1, single acting 0.3~1
Allowable leakage level	Soft seal VI Hard seal IV
