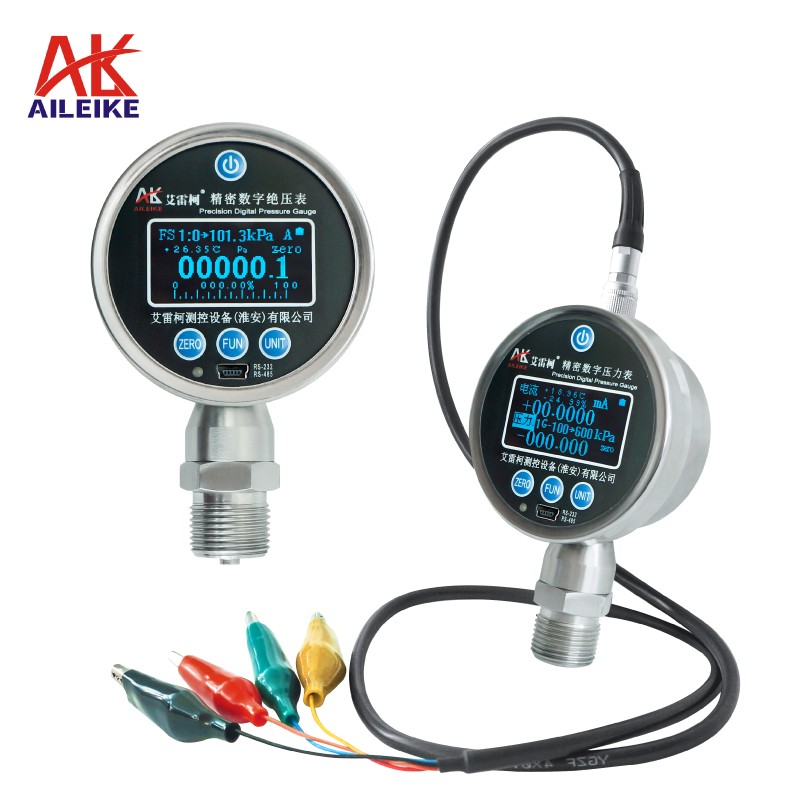

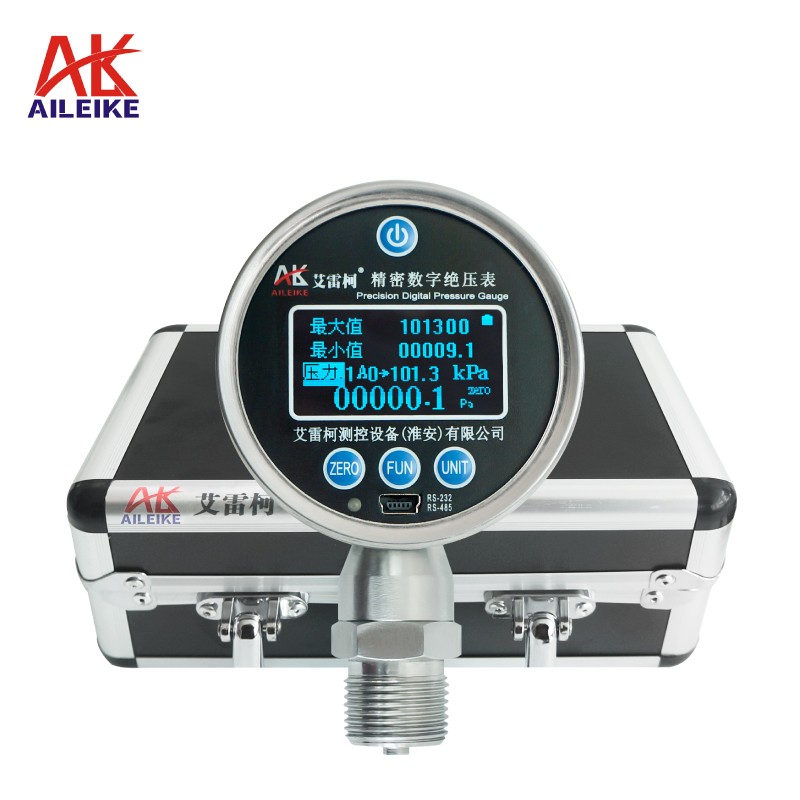

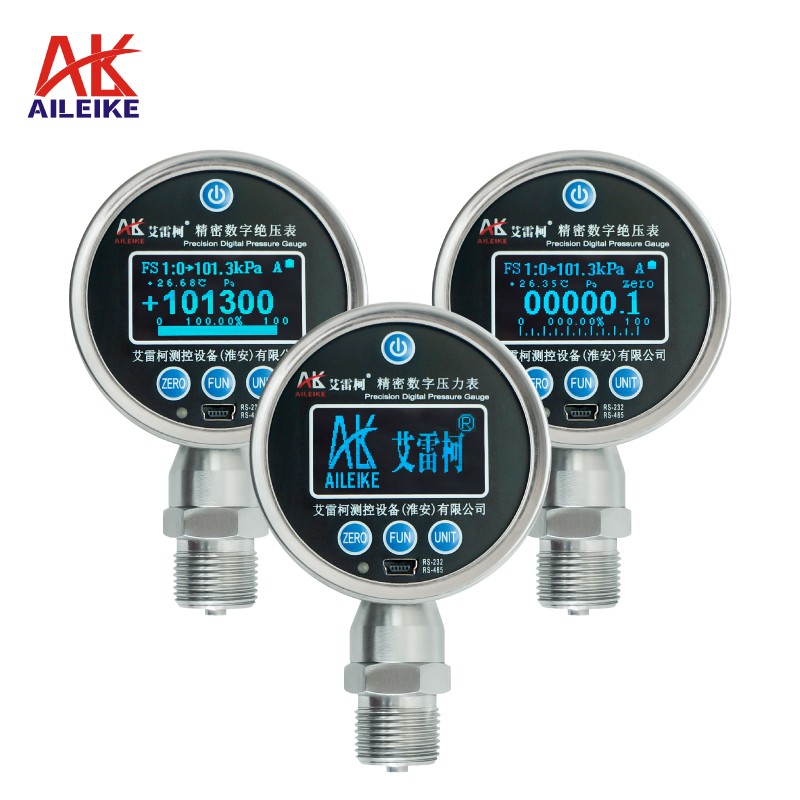

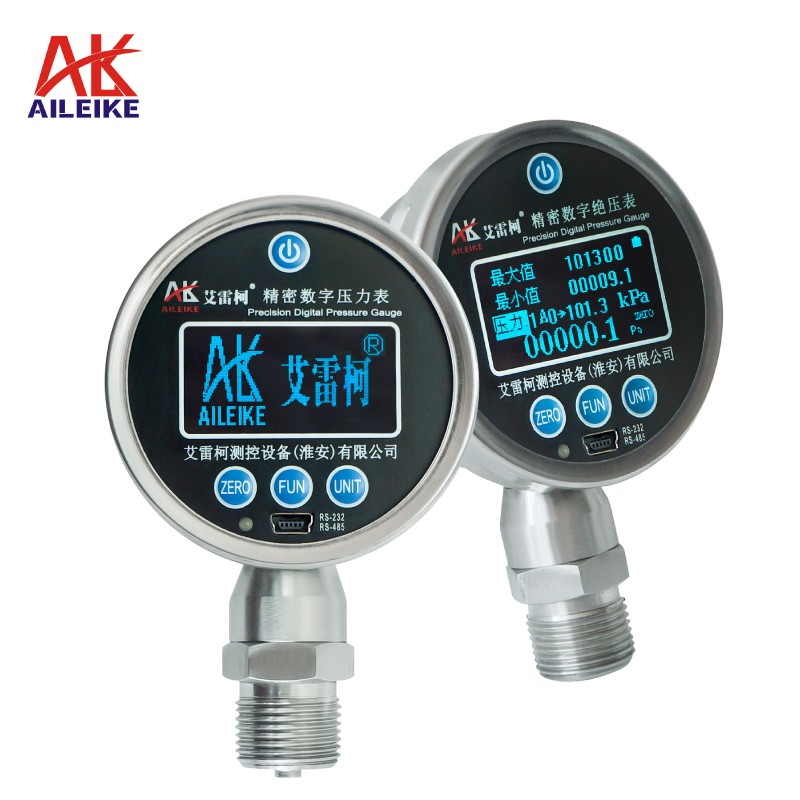

Precision digital pressure gauge ALKC400S

1

2

3

4

5

6

7

Electrical signal

measurement

interface

Power switch

OLED display

Function keys

Charging interface

RS-232 RS-485

communication

interface

Charging indicator light

Red light charging

Green light full

Pressure sensor

1

Yellow: Voltage measurement/pressure switch test terminal

2

Green: Voltage output terminal

3

Red: Current measurement terminal

4

Black: Common terminal

Product name

Precision digital pressure gauge

Model

ALKC400S

Accuracy

0.05%F·S

Enclosure material

±25.0000mA

Pressure range

±50.0000V

Protection rating

- 1~0~600~1000bar/ 1.013-0bar abs(Pressure selectable)

Power supply voltage

RS-485

LCD display

5-digit or 6-digit display selectable via key

Pressure connection

The thread size is M20 × 1.5(M). If you need other thread sizes, please contact us for consultation.

Overload capacity

1.2 times the full scale

Ambient temperature

0～50℃

Power supply

External charger 220VAC 50HZ 3VA

Measurement medium

Air, water, oil and other non corrosive media for stainless steel

Product weight

Approximately 0.25kg (only for the pressure gauge body)

Product size

65×40×100mm

Package weight

Approximately 2.5kg

Package size

240×230×160mm
