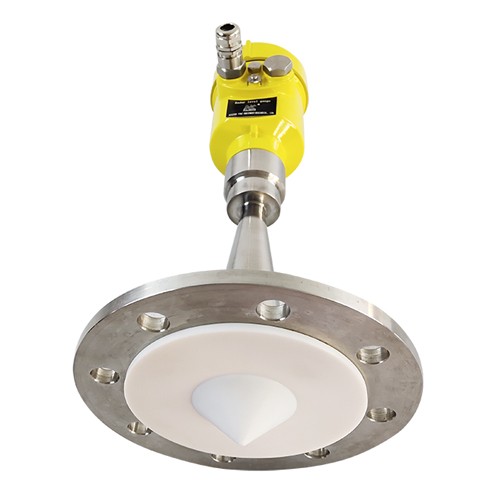

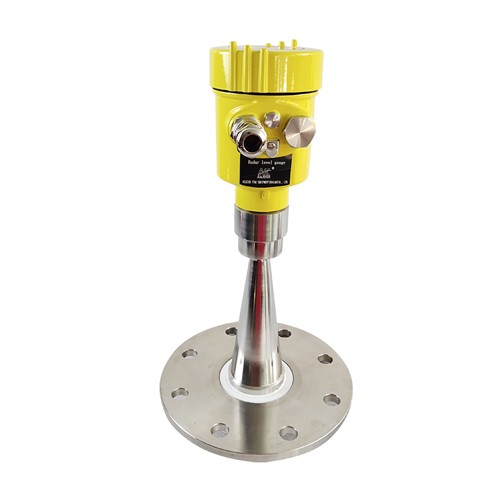

Sanitary plane radar level meter alklc023

وصف

Sanitary plane radar level meter alklc023 is used for liquid storage containers and highly corrosive containers

Measuring range: 20 m
Process connection: Flange
Medium temperature: -40 ~ 150℃
Process pressure: -0.1~2Mpa
Pure c: + / - 5 mm
Frequency range: 26GHz
Explosion-proof grade: Exb II BT4 Gb
Protection level: IP67
Signal output: 4...20mA/HART (two-wire/four-wire) RS485/Mod Bus

ALKLC023 selection

Unit	Parameters
Explosion proof	P standard (non-explosion-proof)
	1 flameproof (Exb II BT4 Gb)
Process link / material	B flangeDN80/Stainless steel 304
	CFlangeDN100/Stainless steel 304
	DFlangeDN125/Stainless steel 304
	EFlangeDN150/Stainless steel 304
	FFlangeDN200/Stainless steel 304
	HFlangeDN250/Stainless steel 304
	MFlangeDN80/Universal joint (304Stainless steel)
	KFlangeDN100/Universal joint (304Stainless steel)
	TFlangeDN125/Universal joint (304Stainless steel)
	ZFlangeDN150/Universal joint (304Stainless steel)
	WFlangeDN200/Universal joint (304Stainless steel)
	VFlangeDN250/Universal joint (304Stainless steel)
	Special customization
Antenna type / material	B horn antenna Φ 76mm/ stainless steel 304
	C horn antenna Φ 96mm/ stainless steel 304
	D horn antenna Φ 121mm/ stainless steel 304
Sealing / process temperature	V Ordinary/(-40~150) ℃
	K High temperature/(-40~250) ℃
	T High temperature/(-60 ~ 400) ℃
Electronic unit	3 (4 ~ 20) mA/24V DC/HART two-wire system
	4 (4 ~ 20) mA/220V AC four-wire system
	RS485/Modbus/ four-wire system
Shell / protection grade	L aluminum / IP67
	G stainless steel 304/IP67
Cable incoming line	M M20x1.5
	N 1/2NPT
Special agreement	Y special agreement
