وصف

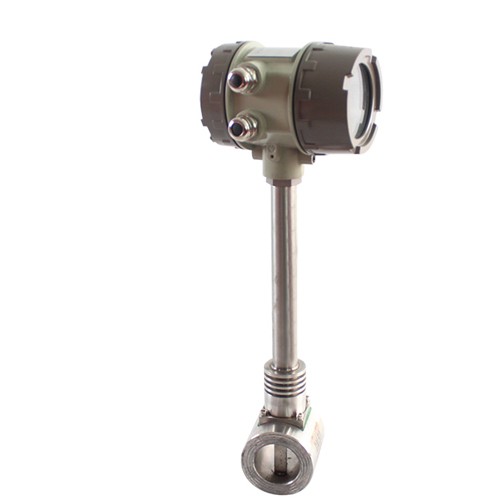

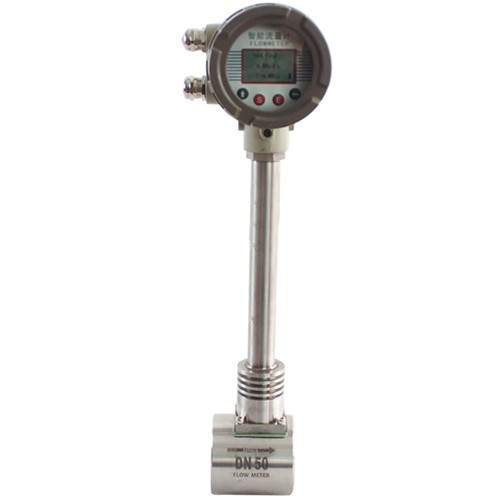

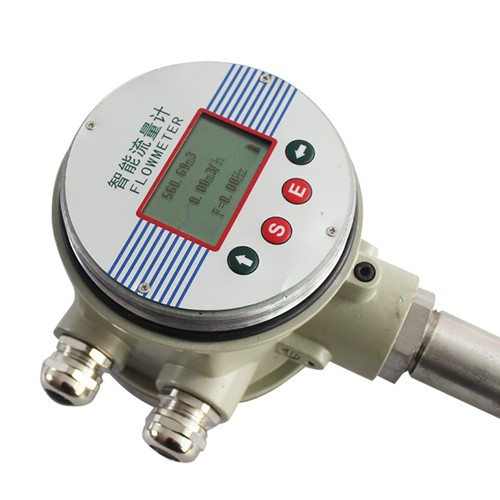

The vortex flowmeter lugb-50 is based on the Karman vortex principle. It is mainly used for the flow measurement of industrial pipeline medium fluid, such as gas, liquid, steam and other media. It is characterized by small pressure loss, large measuring range and high accuracy. It is almost not affected by fluid density, pressure, temperature, viscosity and other parameters when measuring volume flow under working conditions. There are no movable mechanical parts, so it has good reliability and less maintenance. The instrument parameters can be stable for a long time.
technical parameter
|
Measuring medium |
Liquid, gas, steam |
|
|
Medium temperature(℃) |
-40～+300； 350～450（Capacitive, order by agreement） |
|
|
Medium pressure |
1.6Mpa 2.5Mpa 4.0Mpa ≥4.0Mpa Order by agreement |
|
|
Allowable vibration acceleration |
Piezoelectric transducer：≤0.2g |
|
|
accuracy |
Grade 1.0 Grade 1.5 Grade 2.5 |
|
|
Range ratio |
8:1 10:1 15:1 |
|
|
Flow range |
Liquid：0.35~7.0m/s gas：5.0~60.0m/s steam：6.0~70.0m/s |
|
|
Specifications
|
Full tube
|
Flange clamp type specification DN15-DN300 |
|
|
Plug in |
DN200-DN1500 |
|
texture of material |
304 |
|
|
Reynolds number |
2×10³~7*10 extend 1*10~7*10 |
|
|
resistance coefficient |
Full tube Cd≤2.6 |
|
|
Protection level |
Common type：IP65 Diving type：IP68 |
|
|
Explosion proof grade |
Intrinsically safe：EX（ia）ⅡCT2-T5 |
|
|
environment condition |
ambient temperature |
-40℃~+55℃（Non explosion proof places） -25℃~+55℃（Explosion proof place） |
|
|
RH |
≤90% |
|
|
atmospheric pressure |
86~106kPa |
|
Power supply |
Pulse type 12VDC～ +24VDC Current mode 12VDC～+24VDC 4-20mA Battery powered 3.6V |
|
|
output signal |
Frequency pulse signal 2~3000Hz Low level≤1V High level ≥5V |
|
|
|
Two line system 4-20mA Explosion proof load≤300Ω Non explosion proof load≤500Ω |
|
Reference table for working condition flow range of vortex flow sensor
Instrumen taperture
(mm)
liquid
Gas
measuring range
(m3/h)
Output frequency range (Hz)
measuring range
(m3/h)
Output frequency range (Hz)
15
1.2-6
118-590
4~28
400~2700
20
1.5-10
56-374
6~40
224~1500
25
2～16
41～330
8~50
170～1030
40
2.5~25
12～120
25~180
120～870
50
3.5~40
9～105
35～300
92～735
65
7.5~70
9~83
50~500
59~588
80
12～130
7～80
80～800
50～493
100
18~160
6～49
120～1200
36～370
125
25~250
4 ~ 40
180~1800
30~300
150
50~400
4～38
320～2800
31～270
200
70~700
3～30
560～6000
22～240
250
120~1200
2.5～25
890～8000
18～170
300
200~2000
2.4～24
1360～12000
17～150
(300)
200~1800
11～98
1560～15000
83～830
(400)
350～3000
11～92
2750～27000
83～836
(500)
500～4000
10～79
4300～43000
84～834
(600)
700～5600
9.5～76
6200～61000
83～830
(800)
900～7200
7～55
11000～110000
83～829
(1000)
1300～12000
6.3～56
17000～170000
83～820
