Ultrasonic flowmeter external clamp pipeline flow sensor

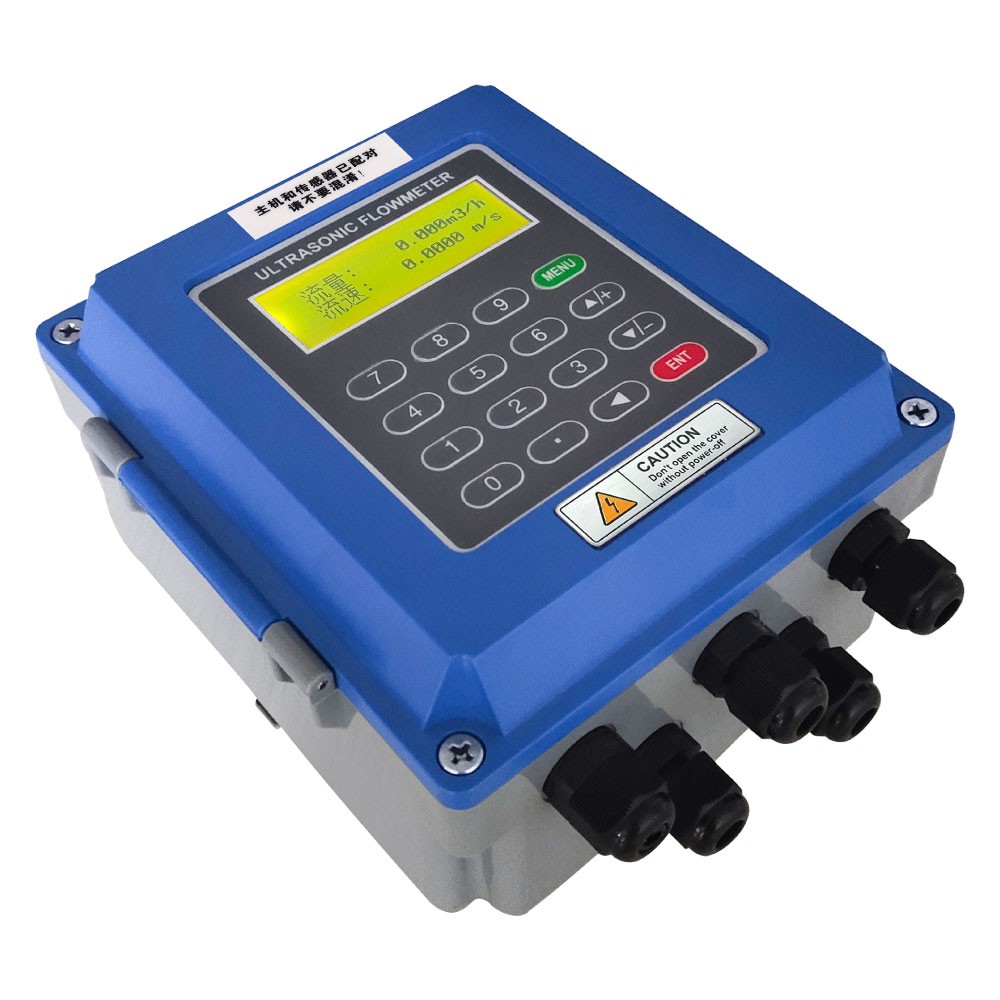

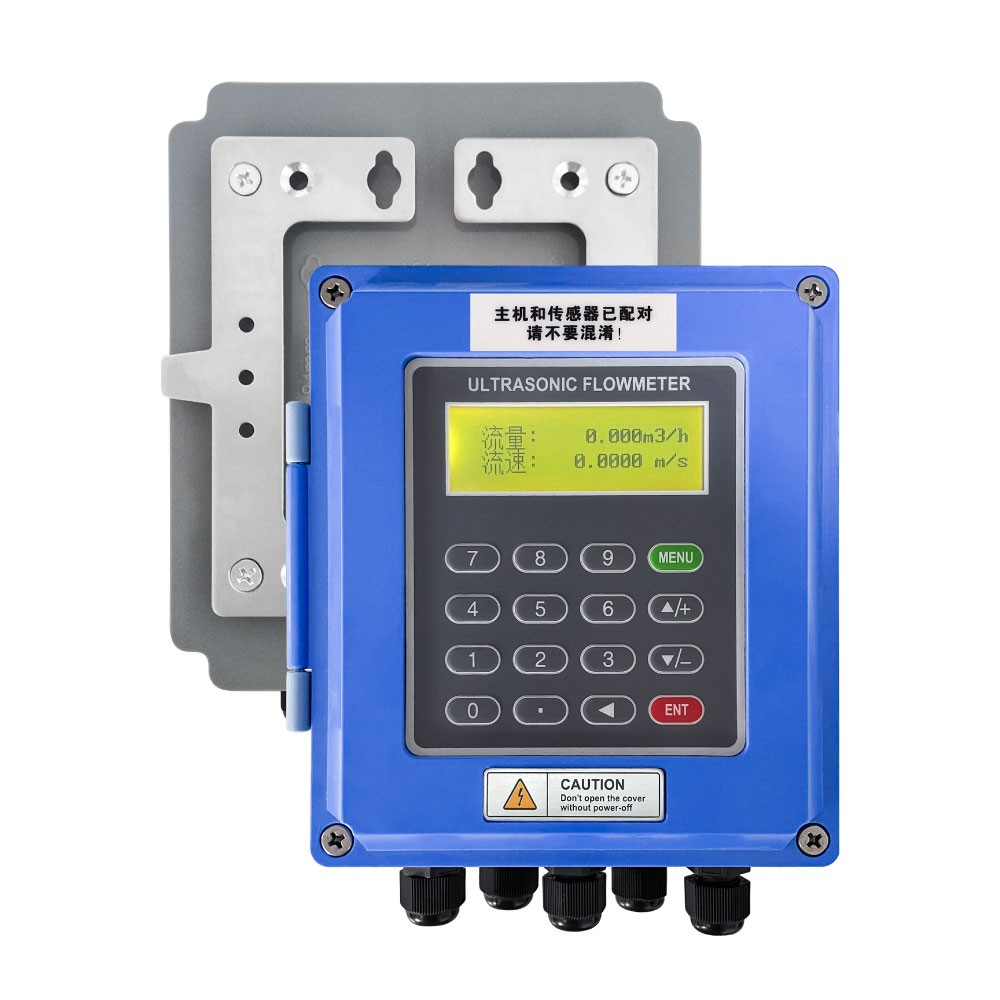

Product display

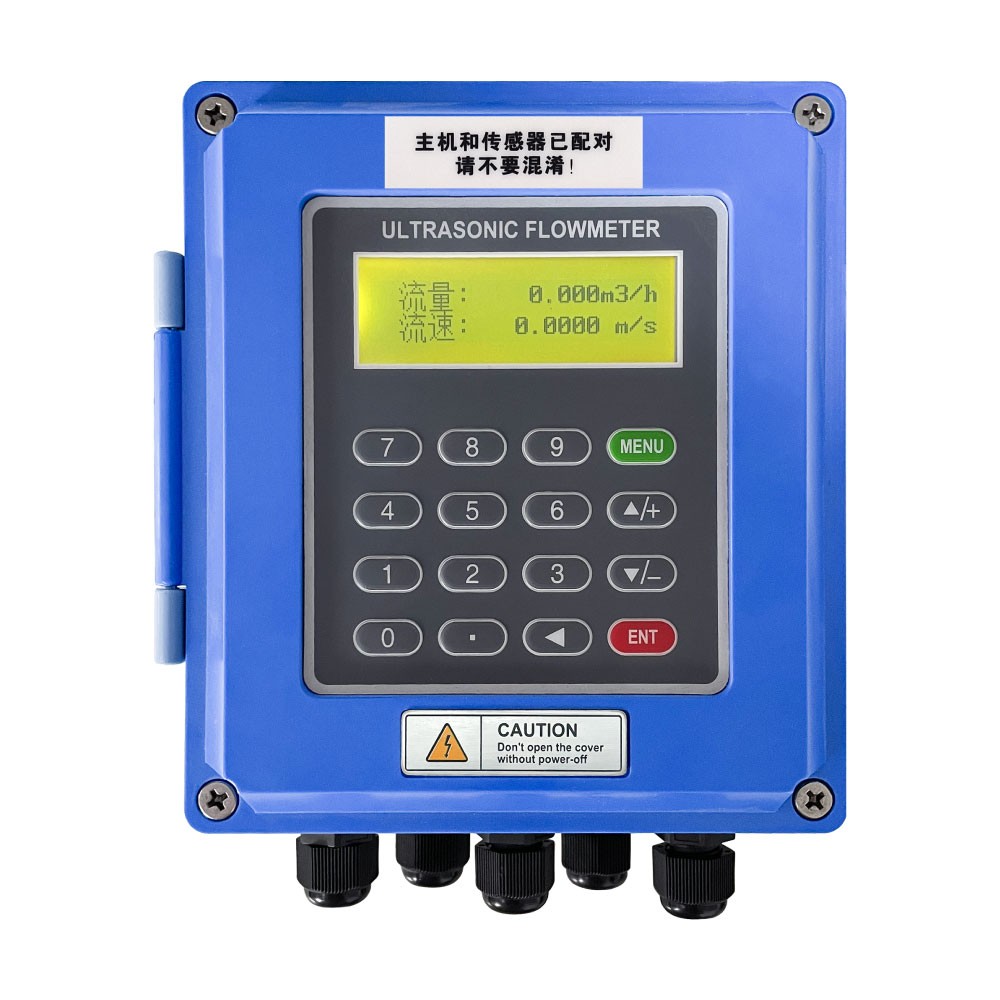

LCD display

Upgraded header

High definition LCD backlight display

Easy and intuitive reading

Protective shell

Anti corrosion, moisture-proof,

and dustproof housing

Outdoor installation for

long-term use

ABS electrical interface

Anti aging and cracking

Moisture and dust prevention

Long service life

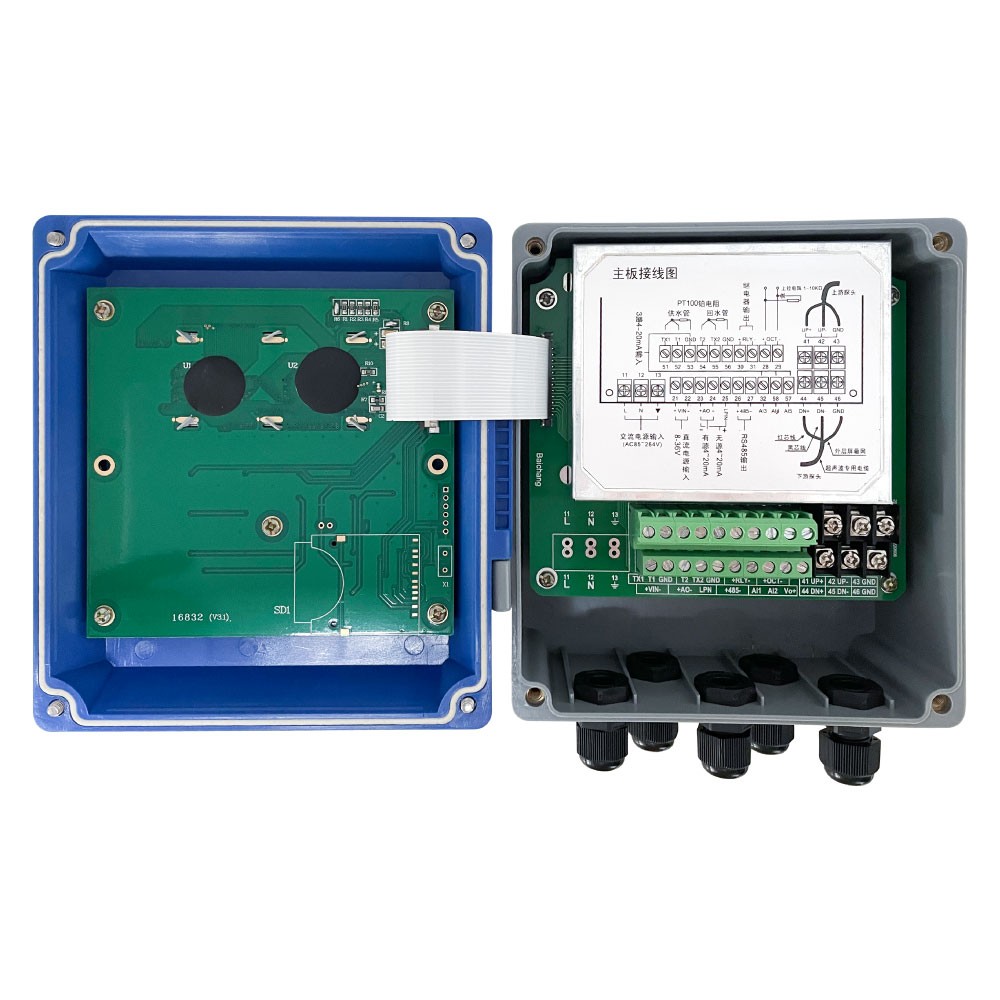

Imported chips

SMT fully automatic

chip placement circuit

High quality and performance

Use more accurately

Product information
Product name	Ultrasonic flowmeter
Installation method	Wall mounted
Display	LCD display
Accuracy level	±1%
Applicable caliber	DN15~6000mm
Protection level	IP65
Product size	140x85x170mm
Shell material	ABS engineering plastics
Signal input	1-channel analog input
Power supply mode	220V AC/24V DC dual power supply
Communication mode	RS485， Support Modbus protocol
Signal output	4~20mA output/relay output/pulse output
Measurement medium	A single stable liquid that can conduct ultrasonic waves, such as water, seawater, sewage, alcohol, etc
Communication mode	140×85×170mm
Product weight	Approximately 0.6kg
Package size	170×105×200mm(packaging material is cardboard box)
package weight	Approximately 1.6kg
Sensor temperature	Standard probe: -40~90 ℃ High temperature probe: -40~160 ℃

External clamp type sensor
Product Name	External clip typesmall probe
Installation method	Adsorption type
Temperature	-40~90℃
Measuring caliber	DN15~100mm
Protection level	IP65
Shell material	ABS engineering plastics
Weight	0.05kg
Product size	32×25×65mm

External clamp type sensor
Product Name	External clamp type middle probe
Installation method	Adsorption type
Temperature	-40~90℃
Measuring caliber	DN50~700mm
Protection level	IP65
Shell material	ABS engineering plastics
Weight	0.15kg
Product size	45×40×88mm

External clamp type sensor
Product Name	External clamp type large probe
Installation method	Adsorption type
Temperature	-40~90℃
Measuring caliber	DN300~6000mm
Protection level	IP65
Shell material	ABS engineering plastics
Weight	0.35kg
Product size	54×54×120mm
