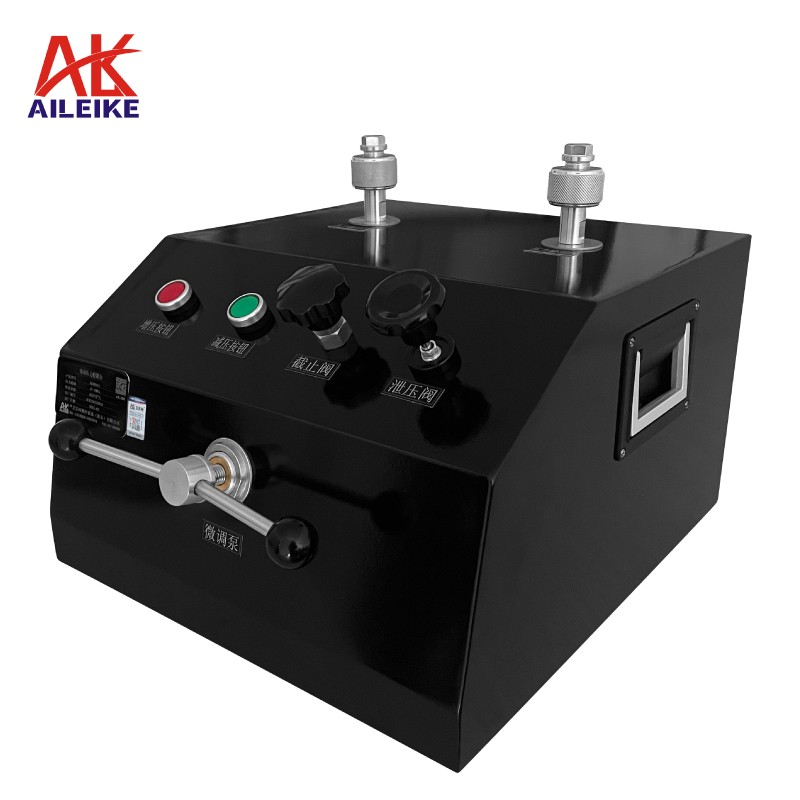

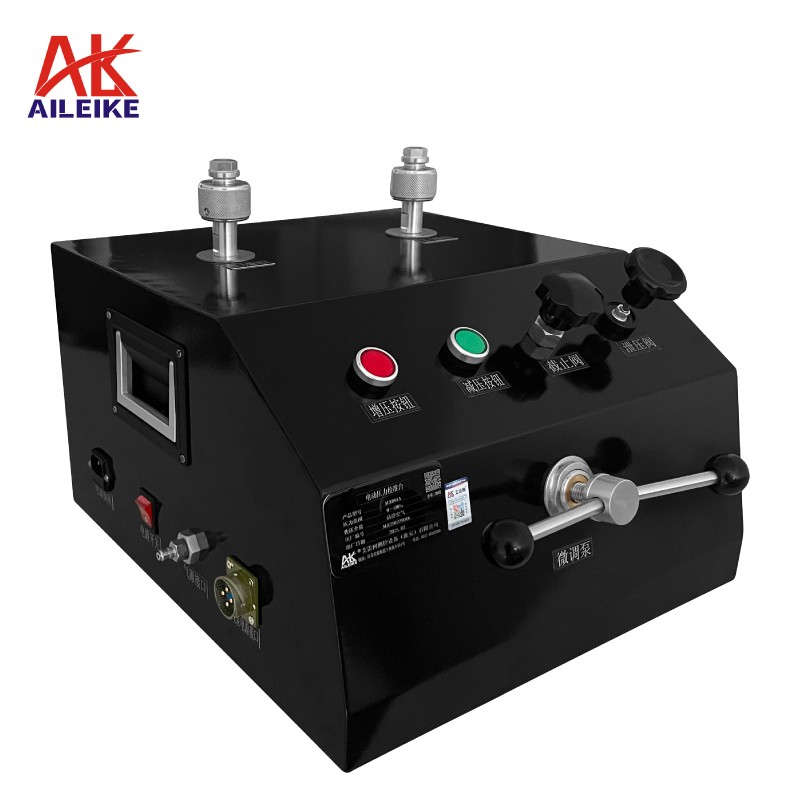

Automatic pressure calibration table ALKD91A -0.95~100bar

01

02

03

04

Electric pneumatic

calibration table

be easy to carry about

Available as field

measurements

Use of pressure building device

Boost/Depressurize/Trim

Three pressure

repair methods

Dynamic response

stabilization

Good sealing performance

Clear and intuitive

operation panel

Allows operators

to be self-paced

Wide measuring range

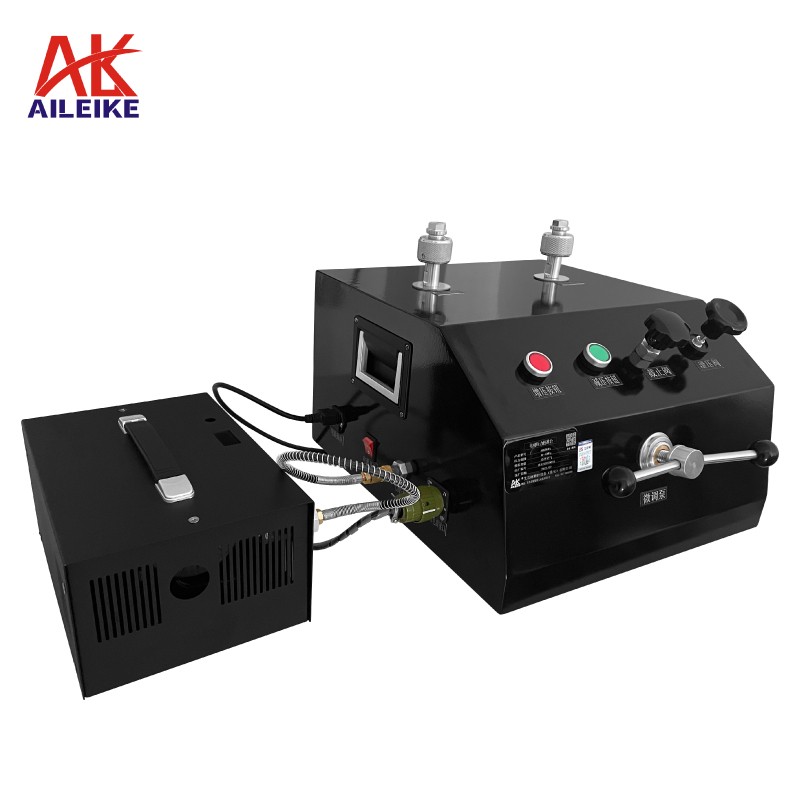

External booster pump

Small size and light weight

Efficient pressurization for

improved calibration efficiency

Ease of use and maintenance

1

2

3

4

5

6

7

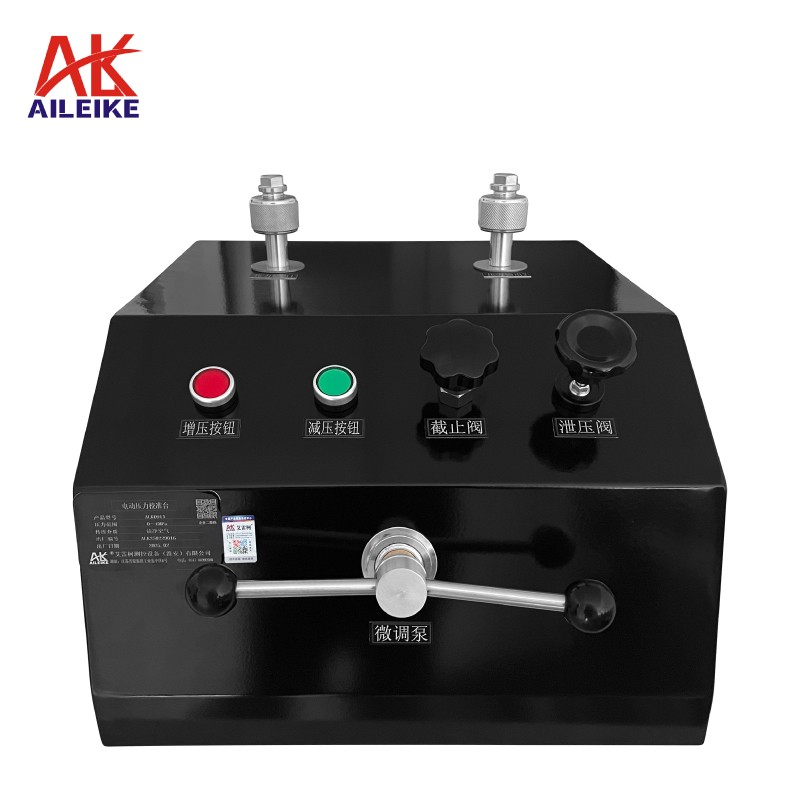

Pressure Output Port 1

Connecting threads：

M20X1.5

Pressure Output Port 2

Connecting threads：

M20X1.5

Pressure

relief button

Stop valve

Boost button

Pressure

relief valve

Fine-tuning

Pump

Product name

Electrodynamic pressure calibration

Model

ALKD91A

Measuring range

-0.95~100bar/-13~1450psi/-0.095~10MPa (Pressure selectable)

Accuracy

Pressure:0.05%F.S Pressure:0.02%F.S

Output port

Two

Drift

<0.01%F.S/year

Power Consumption

<500VA

Pressure fluctuation range

0.05%F.S/5S

Temperature

15~35℃

Measurement medium

0~80%RH

Pressurization method

AC220±10% 50Hz

Measurement medium

Non-Corrosive gas

Net Weight

Approximately 22kg

Product size

400×440×345mm(Electrodynamic pressure calibration)

290×210×150mm(External Booster Pump)

Packaged weight

Approximately 32kg (packaging material is Wooden box)

Product packaging size

700×500×390mm
