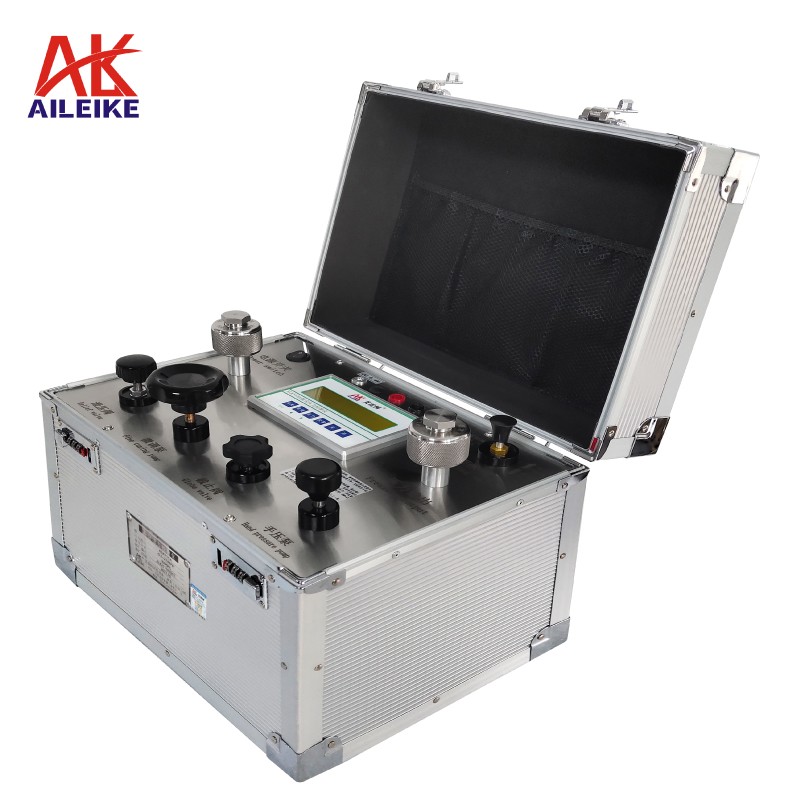

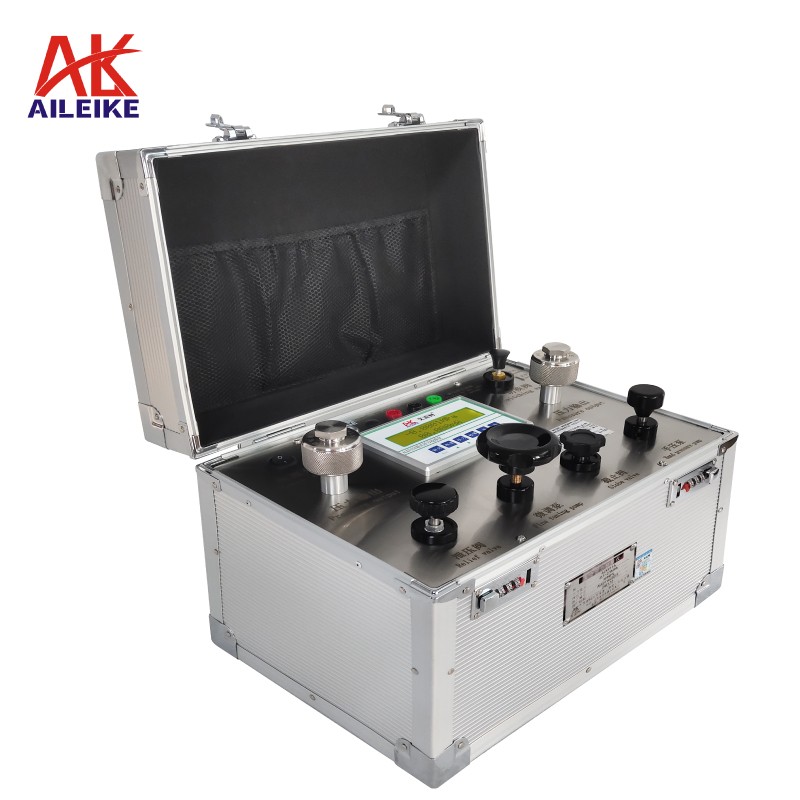

Box type pressure calibrator ALKY15A -0.95~40bar

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

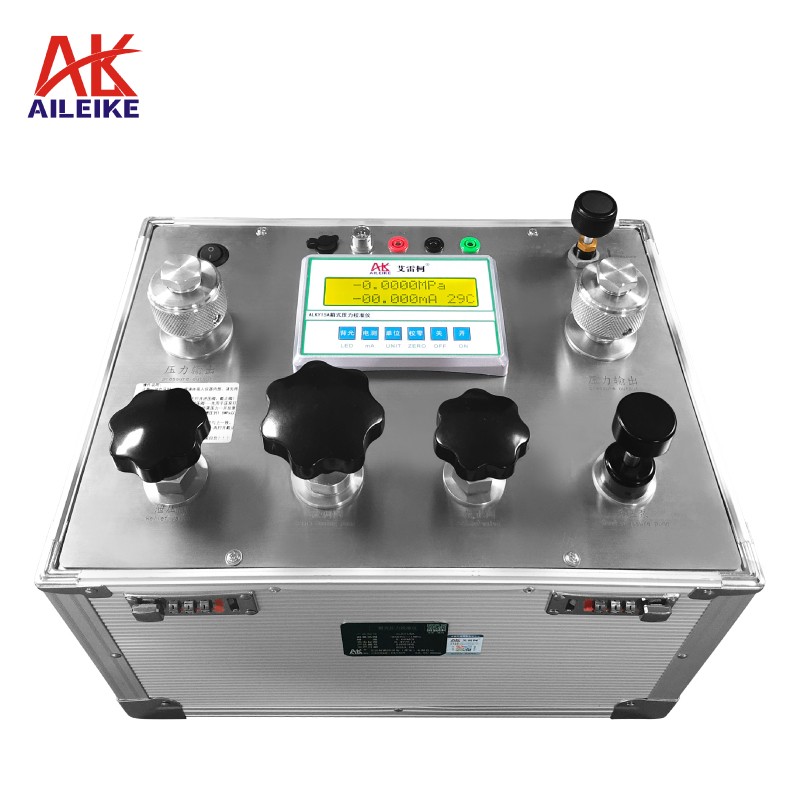

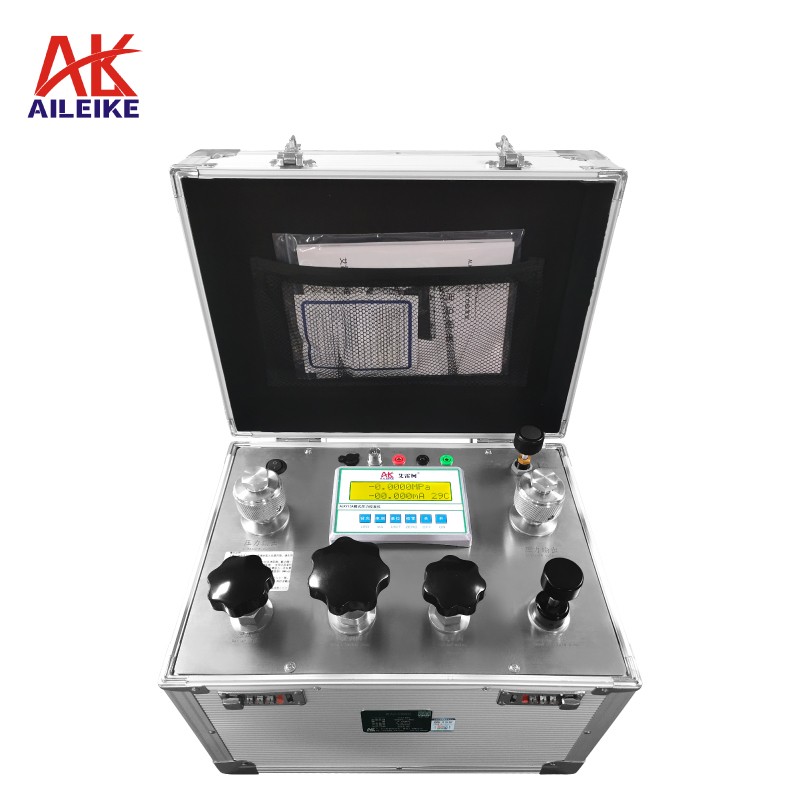

Power

button

Power

port

Signal

port

24V power

output

Common terminal

mA input

terminal

Positive/

Negative

pressure

switching

valve

Pressure

output

Installation of the instrument

under test

connecting

threads：

M20X1.5

Display

screen

With temperature

compensation

Function key

Pressure

output

Installation of the instrument

under test

connecting

threads：

M20X1.5

Pressure

relief valve

Closes during

pressurization

opens after

measurement

completion

Fine

adjustment

valve

Fine pressure

adjustment

Stop valve

Close when

approaching

the target range

then fine-tune

Hand pump

Manual

pressure

generation

Product name

Box type pressure calibrator

Model

ALKY15A (with temperature compensation)

Measuring range

-0.95~40bar

Relative humidity

≤80%RH

Ambient temperature

0~80%RH

DC operating time

≥16h

Pressure connection

The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation.

Temperature compensation

There is (0~50) ℃

Unit switching

6 units can be switched

Current measurement

0~22mA

DC Output

24VDC

Accuracy

Pressure: 0.05% F.S

Current: 0.05% ± 1d

Display

41/2LCD, 51/2LCD dual display for pressure, current, and temperature

Load capacity

1.2 times the upper range limit

Way of Pressure

Hand movement

Measurement medium

Clean air

Power supply

220VAC 50Hz 3VA

Net Weight

Approximately 6.5kg

Product size

365×228×320mm

Packaged weight

Approximately 8kg (packaging material is Wooden box)

Product packaging size

410×270×360mm

Product standard configuration

Certificate of conformity x 1

Instruction manual x 1

Charger x 1

Sealing ring x 4

Hoses x 1

Probe x 1

Factory inspection report x 1
