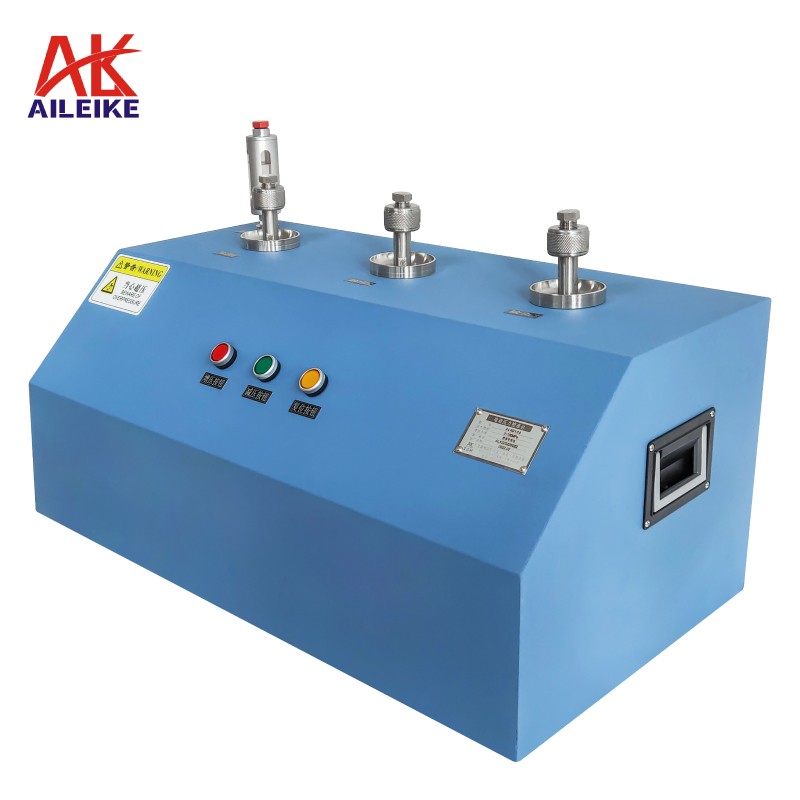

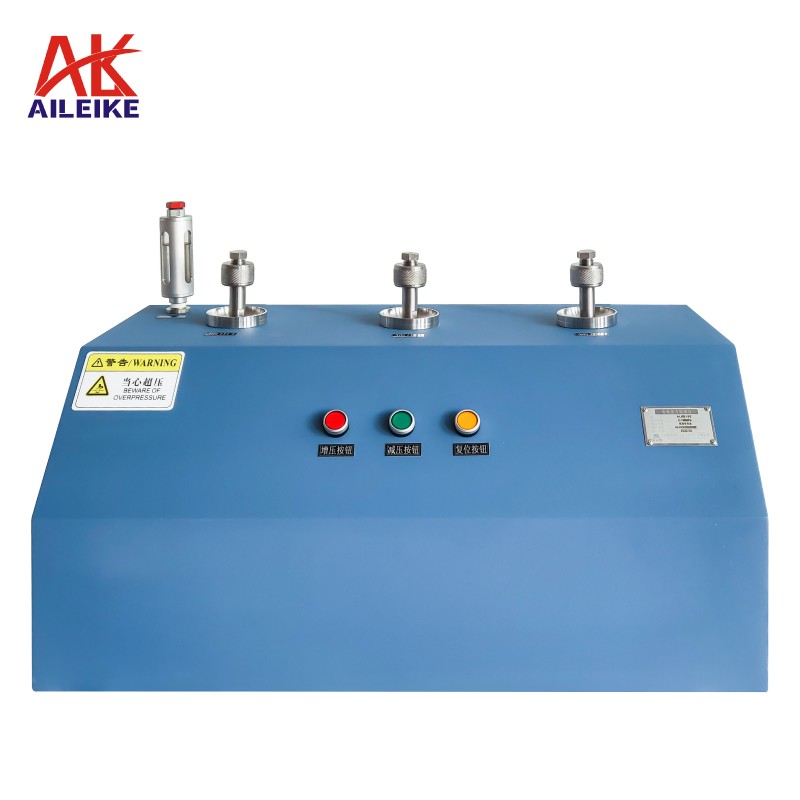

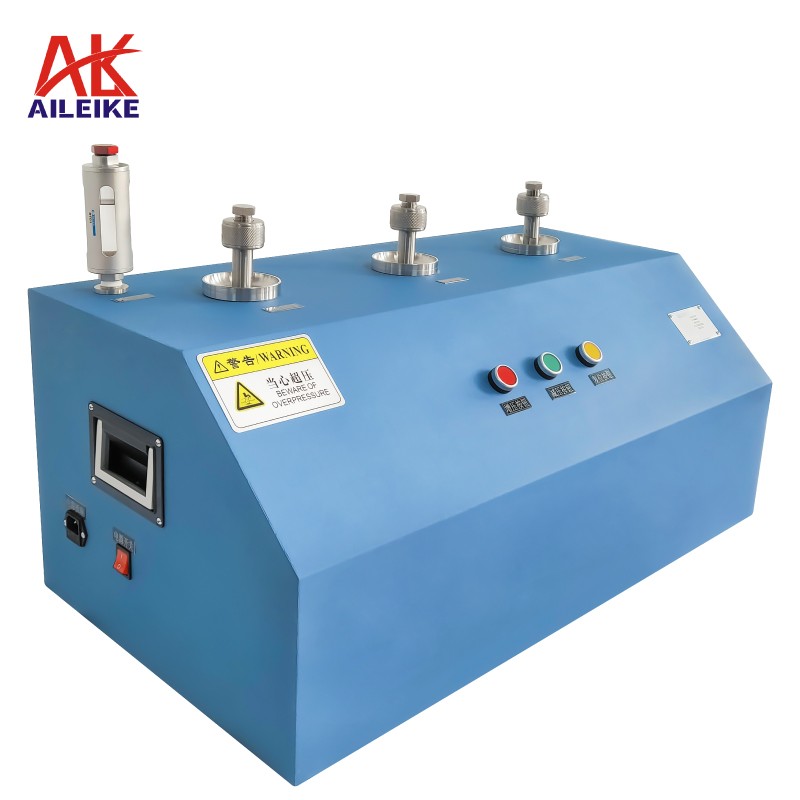

Electric pressure calibration table ALKD100 0~1000bar - 副本

01

02

Reasonable structure

be easy to carry about

Available as

field measurements

Use of pressure

building device

Boost/Depressurize/Reset

Three pressure

repair methods

The pressure value of

the detection point

can be stabilized

within the required

range of the detection point

1

2

3

4

5

6

7

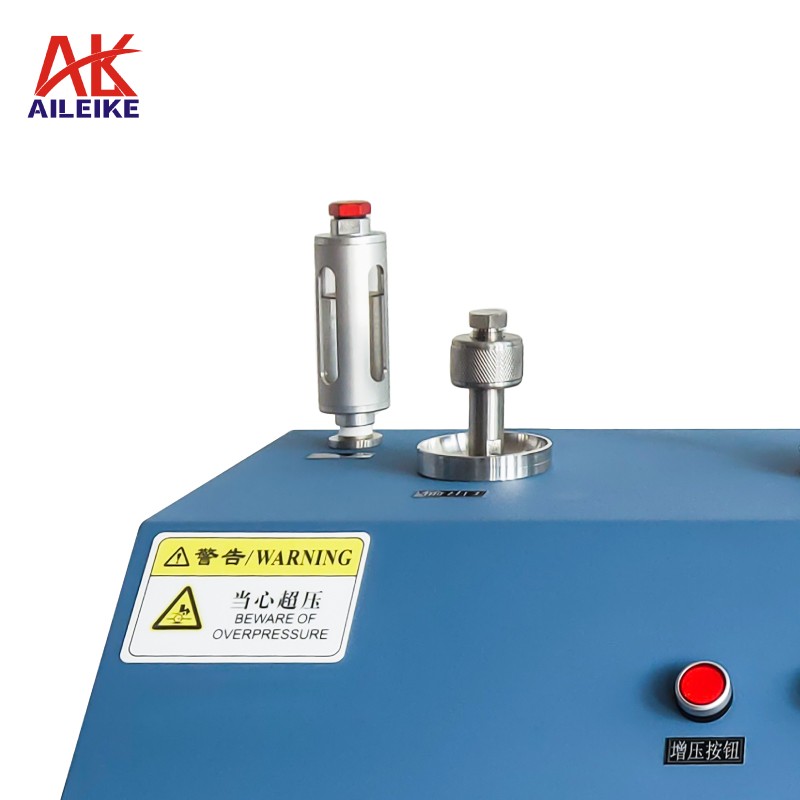

Oil cup

Output 1

Connecting threads：

M20X1.5

Output 2

Connecting threads：

M20X1.5

Output 3

Connecting threads：

M20X1.5

Boost button

Pressure

release button

Reset button

Product name

Electrodynamic pressure calibratione

Model

ALKD100

Measuring range

0~1000bar/0~14500psi/0~100MPa(Pressure selectable)

Humidity

0~80%RH

Output port

Three

Pressure connection

The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation.

Ambient temperature

15~35 ℃

Drift

<0.01% F.S/year

Power consumption

<500VA

Pressure fluctuation range

0.05% F·S/5S

Power supply

AC22010% ± 50Hz

Net Weight

Approximately 40.8kg

Product size

800×440×520mm

Packaged weight

Approximately 56kg

Product packaging size

950×590×670mm
