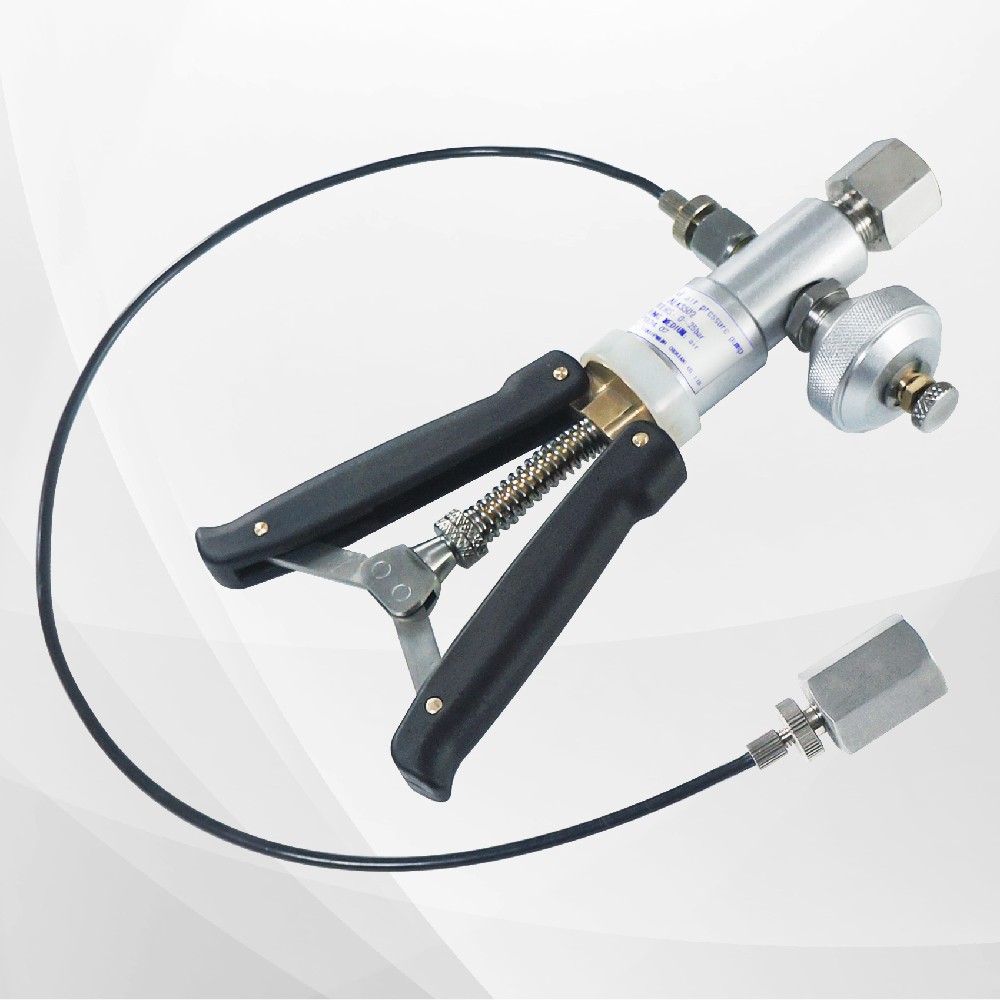

Handheld pressure pump ALKS503 -0.95~25bar

①

②

③

④

⑤

⑥

Pressure cutiet

Connection standard table

Connecting threads:

M20X1.5

Fine tuning

Increase or decreasepressure

within a smallrange

Switching valve

Positive and negativepressure switch donot switch withpressure

Pressure ReliefValue

The pressure is closedat the end of the measurementand the gas is released

Pressure outlet

Connect to the

checked table

Connecting threads:

M20X1.5

Pressure bor

Repeated hard

clenches andreleases produce

pressure

Product name

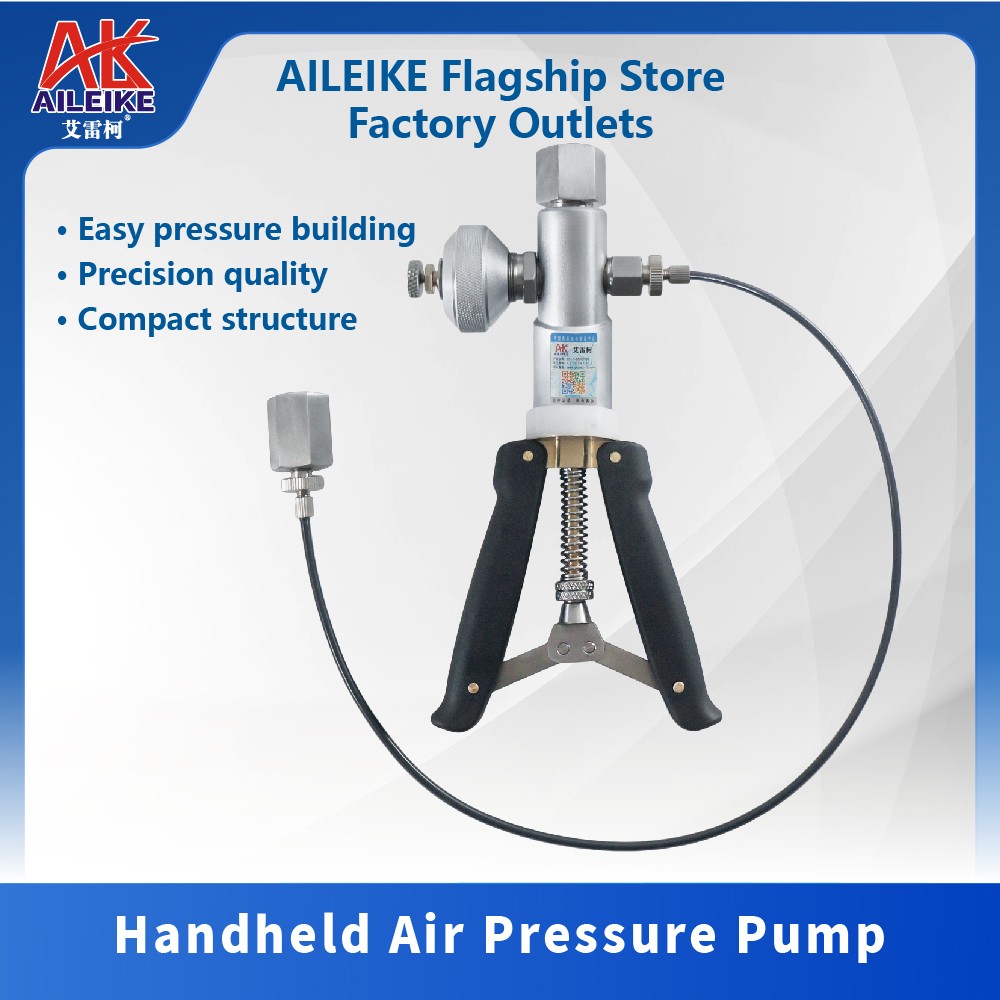

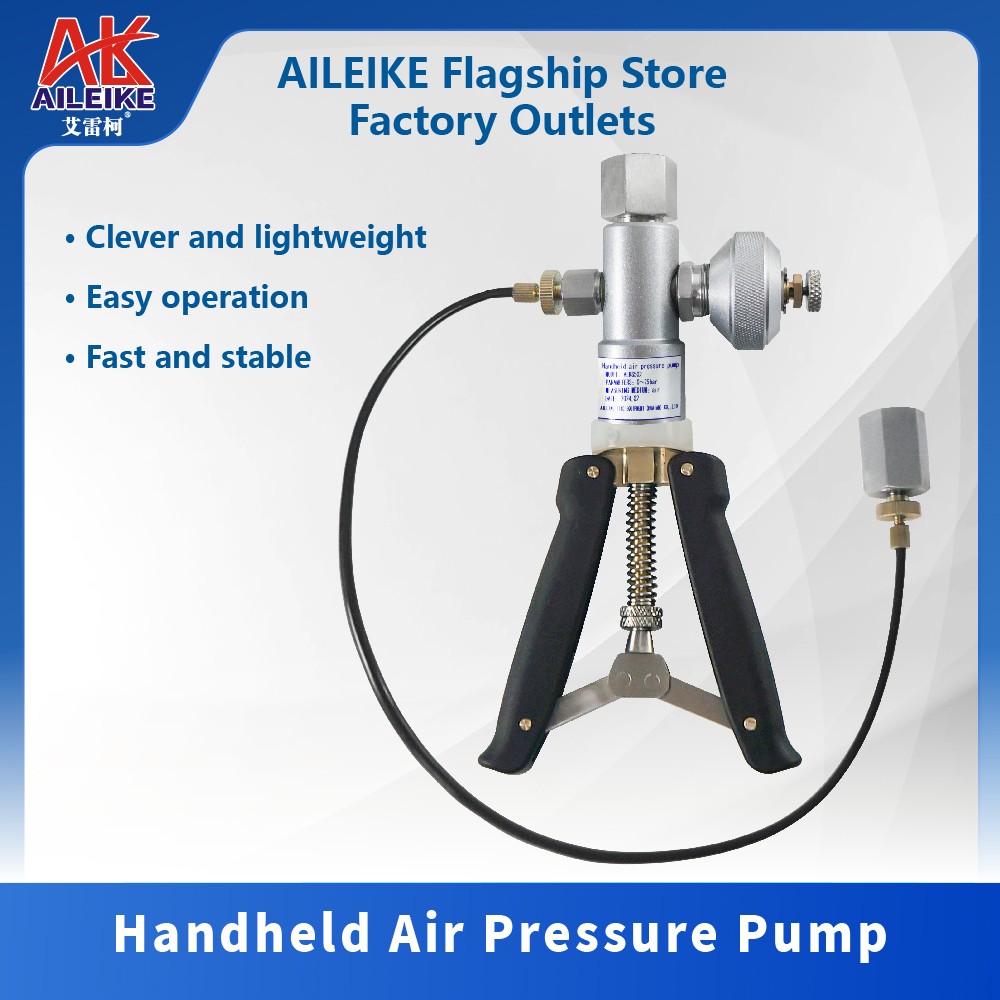

Handheld Air Pressure Pump

Model

ALKS503

Measuring range

-0.95~25bar

Environmentalconditions

Laboratory or field

Environmentaltemperature

0～50℃

Way of Pressure

Hand movement

Connecting threads

The default thread size for the pressure output port is M20 × 1.5. If other thread sizes are required, such as Bsp 1/2, G1/4, NPT1/4, G1/2, NPT1/2, etc., other special thread sizes can also be customized

Applicable medium

Clean air

Net weight

Approximately 0.8Kg

Size

220×110×55mm

Product weight

Approximately 3.3Kg

Product packaging size

310×290×160mm

Product standard

configuration

Certificate of conformity x 1 copy

Instructions x 1 copy

Quality assurance card x 1 copy

Sealing ring x 1 pack

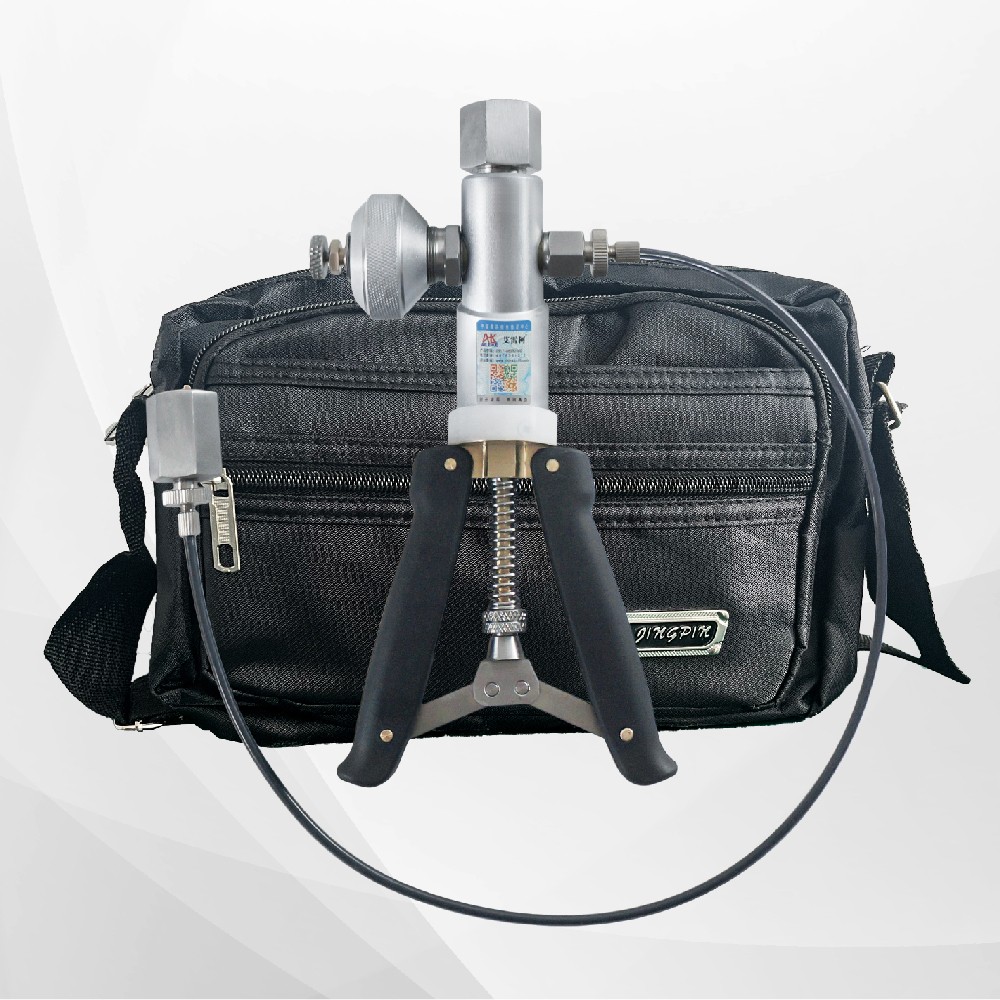

Portable bag x 1 piece

4 connector sets：

G1/4(F) M20x1.5(M)x 1 piece

G1/4(M) M20x1.5(M)x 1 piece

NPT1/4(F) M20x1.5(M)x 1 piece

NPT1/4(M) M20x1.5(M)x 1 piece
