Small size, easy to carry No need for manual pressurization Fully automatic voltage boosting and lowering Can be used for on-site measurement Use of pressure standards |
High power pressurization design Can verify 4 pressure gauges improve work efficiency Long lifespan and maintenance free
|
Boosting/Reducing fine adjustment Boost button/decompression button The pressure value of the detection point can be adjusted Stable within the required range of the detection point |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
|
Output 1 Connecting standard tables or checklists Connecting threads：M20X1.5 |
Output 2 Connecting standard tables or checklists Connecting threads：M20X1.5 |
Output 3 Connecting standard tables or checklists Connecting threads： M20X1.5 |
Output4 Connecting standard tables or checklists Connecting threads： M20X1.5 |
Emergency stop switch |

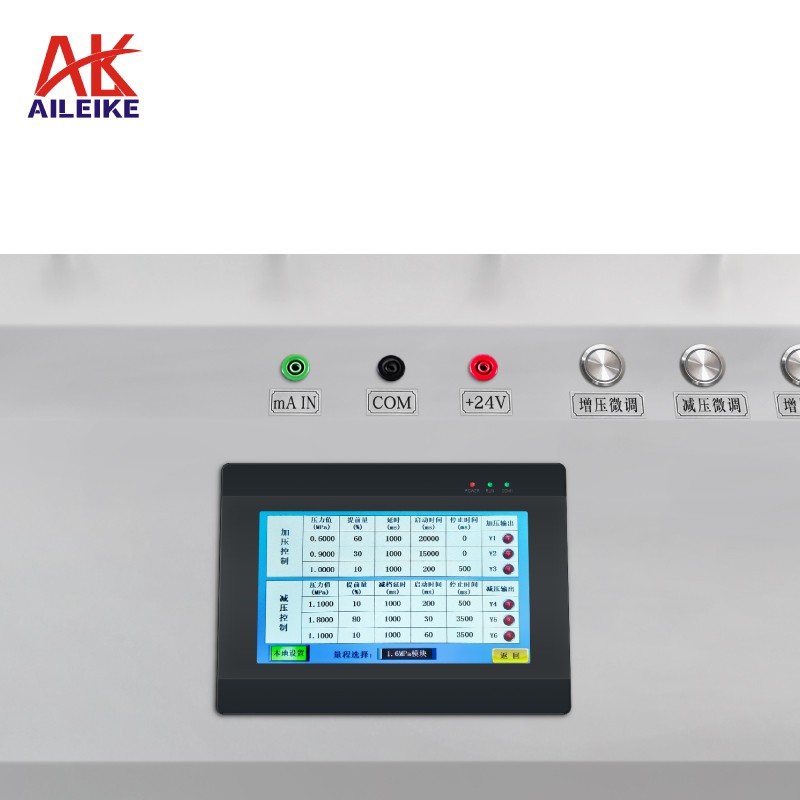

LCD |
Boost fine-tuning |
Pressure reduction fine-tuning |
Boost button |
Pressure reducing button |

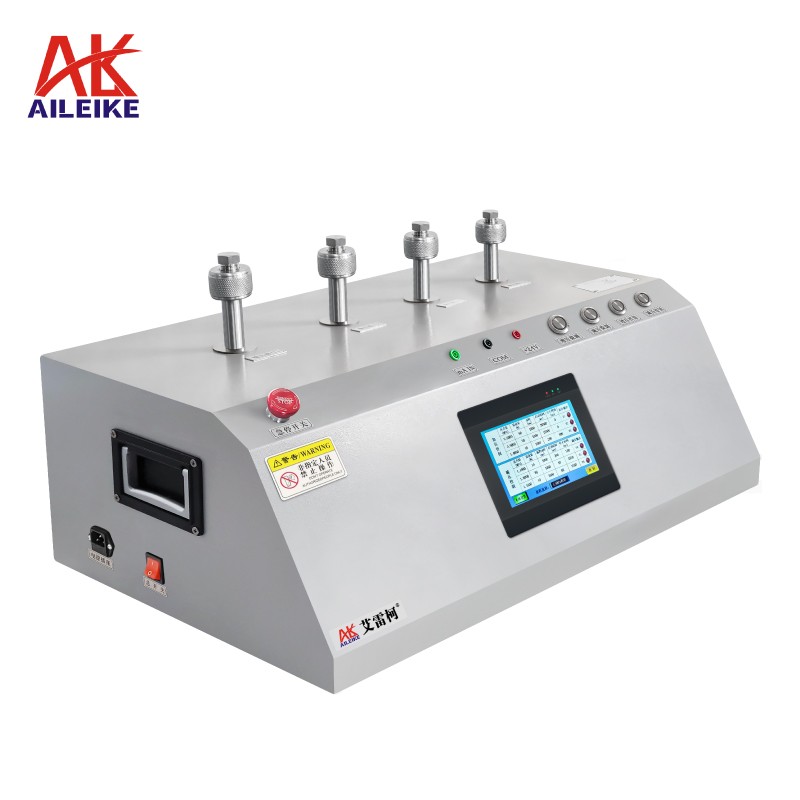

Portable handle |
Power socket |
Power switch |
Module interface |
RS485 communication interface |
|

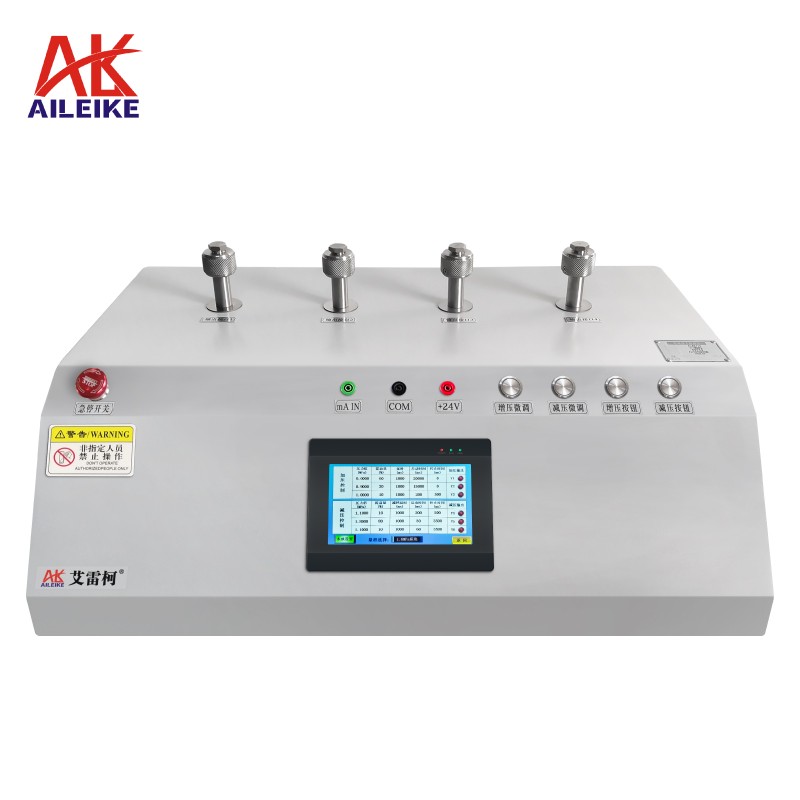

Product name |
Automatic pneumatic test stand |
|
Model |
ALKD20 |
|
Measuring range |
-0.95~60bar/-13~8700psi/-0.095~6MPa(Pressure selectable) Current: 0~20mA |
|
Accuracy |
Pressure: 0.05% F·S Current: 0.05% F·S |
|
Communication method |
RS485 Modbus protocol |
|
Output port |
Four |
|
Pressure connection |
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation. |
|
Ambient temperature |
15~35℃ |
|
Measurement medium |
Clean air |
|
Drift |
<0.01% F.S/year |
|
Power consumption |
<500VA |
|
Humidity |
0~80%RH |
|
Pressure fluctuation range |
0.05% F·S/5S |
|
Power supply |
AC220±10% 50Hz |
|
Net Weight |
Approximately 32kg |
|
Product size |
800×440×400mm |
|
Packaged weight |
Approximately 47kg |
|
Product packaging size |
950×600×550mm |
