وصف
|
01 |
02 |
|
Stainless steel material Corrosion resistance antioxidant Use more resistant |
Various measuring ranges Customizable as required |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|

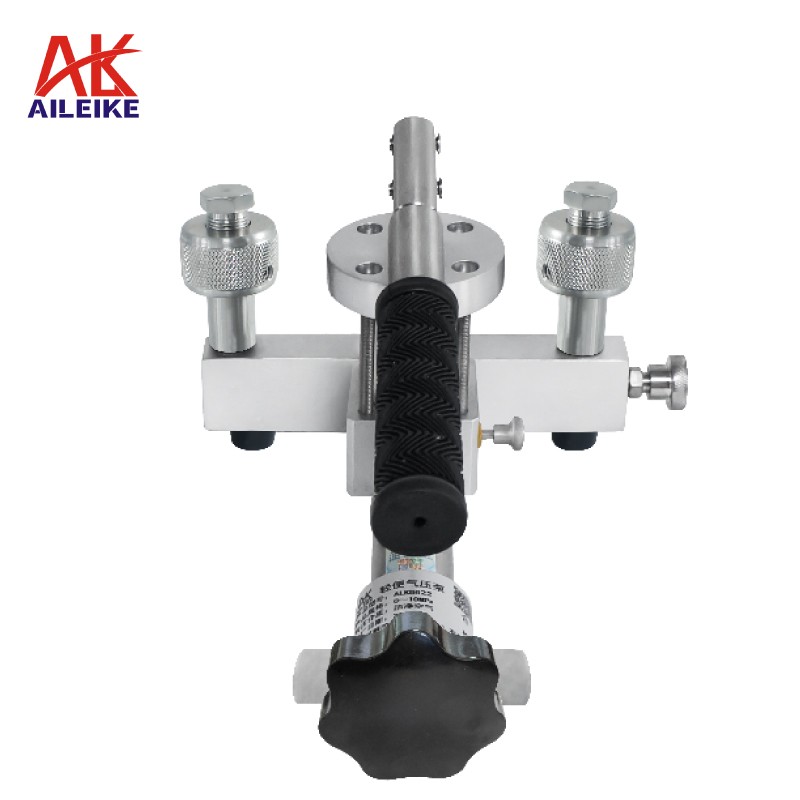

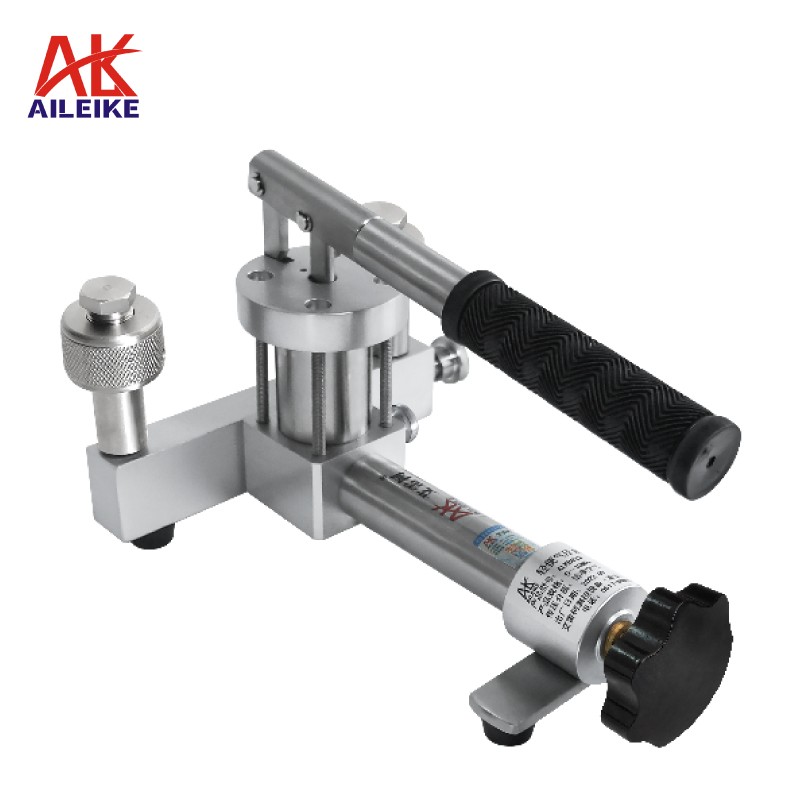

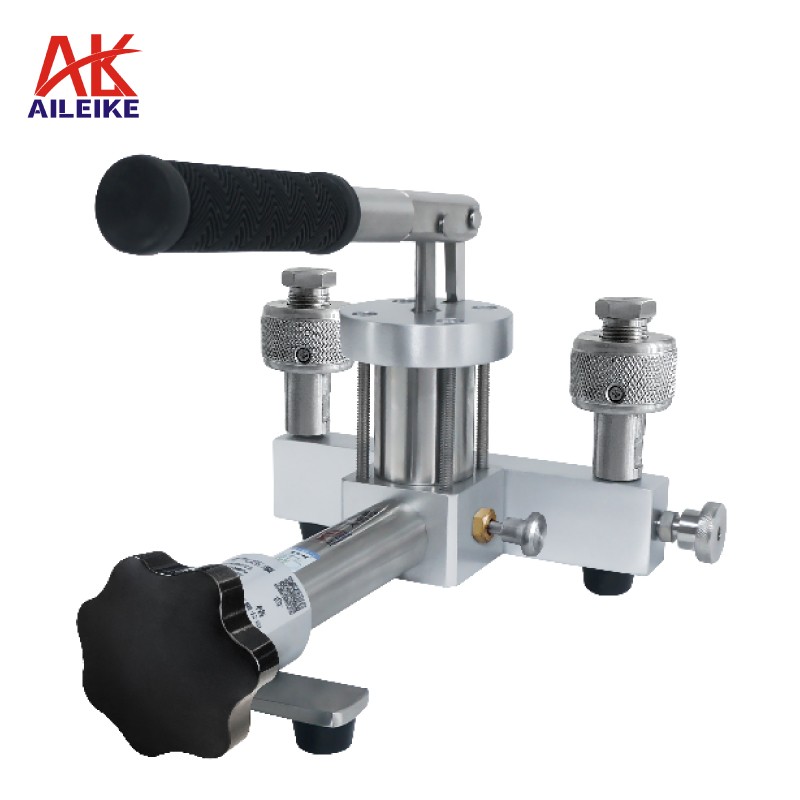

Lever Operational movement drives the piston rod |

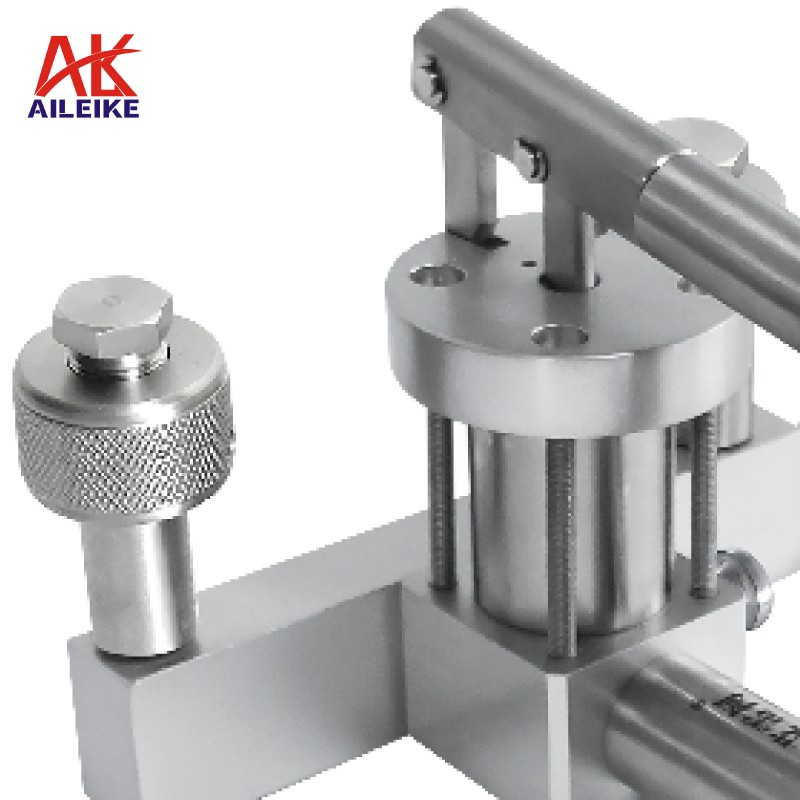

Piston Dual piston device for gas generation |
Output 1 Connecting standard tables or checklists Connecting threads： M20X1.5 |
Output 2 Connecting standard tables or checklists Connecting threads： M20X1.5 |
Pressure relief valve Closed for pressurization open for depressurization |
Fine tuning Increase or decrease pressure within a small range |
Switching Valve Push for positive pressure, pull for negative pressure |
|
Product name |
Portable air pump |
|
Model |
ALKB622 |
|
Measuring range |
-0.95~60bar/-13psi~230psi/-0.095~6MPa(Pressure selectable) |
|
Adjust the fineness |
10pa |
|
Output port |
Two |
|
Pressure connection |
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation. |
|
Ambient temperature |
-10~60℃ |
|
Measurement medium |
Clean air |
|
Pressurization method |
Hand movement |
|
Net Weight |
Approximately 4.3kg |
|
Product size |
410×300×200mm |
|
Packaged weight |
Approximately 6kg(packaging material is cardboard box) |
|
Product packaging size |
490×380×280mm |
|
Product standard configuration |
Certificate of Conformity × 1 User Manual × 1 Warranty Card × 1 Sealing Ring × 2 Plug × 2 |
