Product display |
|||
|
01 |
02 |
03 |
04 |
|

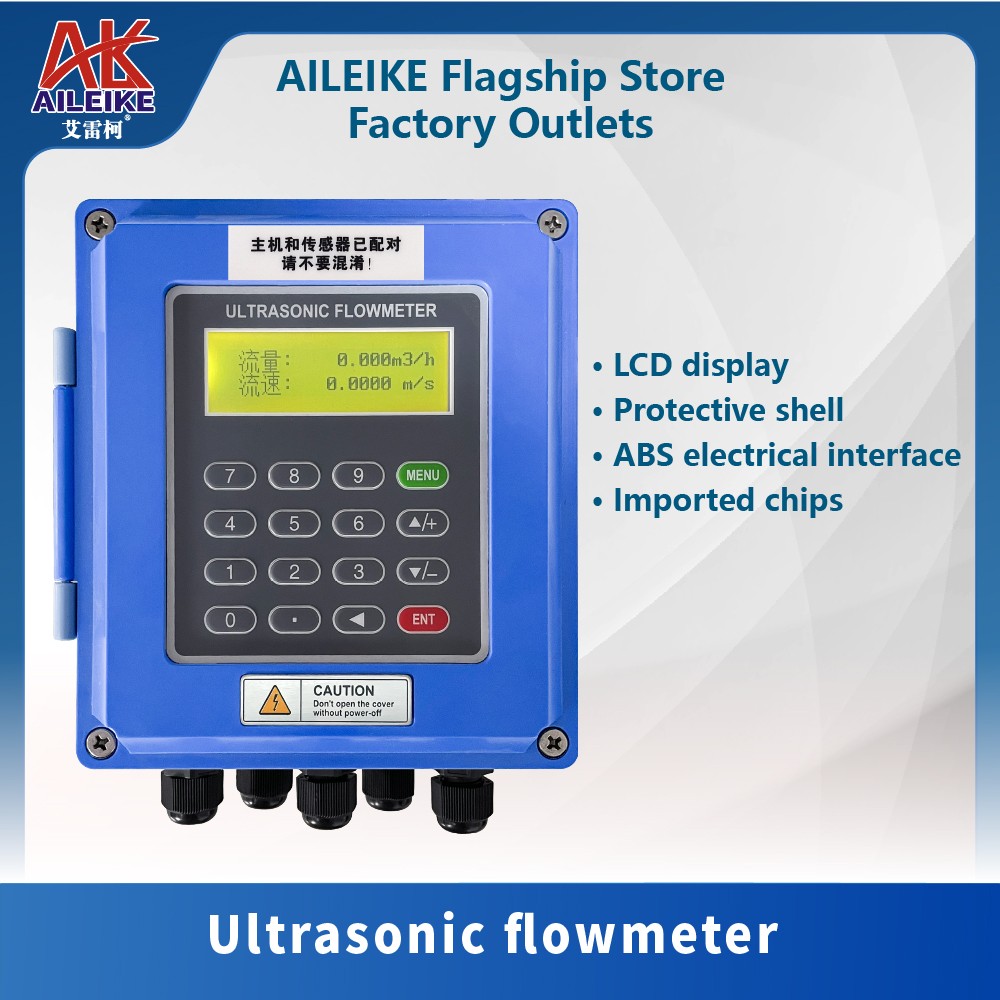

LCD display Upgraded header High definition LCD backlight display Easy and intuitive reading |
Protective shell Anti corrosion, moisture-proof, and dustproof housing Outdoor installation for long-term use |
ABS electricalinterface Anti aging and cracking Moisture and dust prevention Long service life |
Imported chips SMT fully automatic chip placement circuit High quality and performance Use more accurately |
|
Product information |
|
|
Product name |

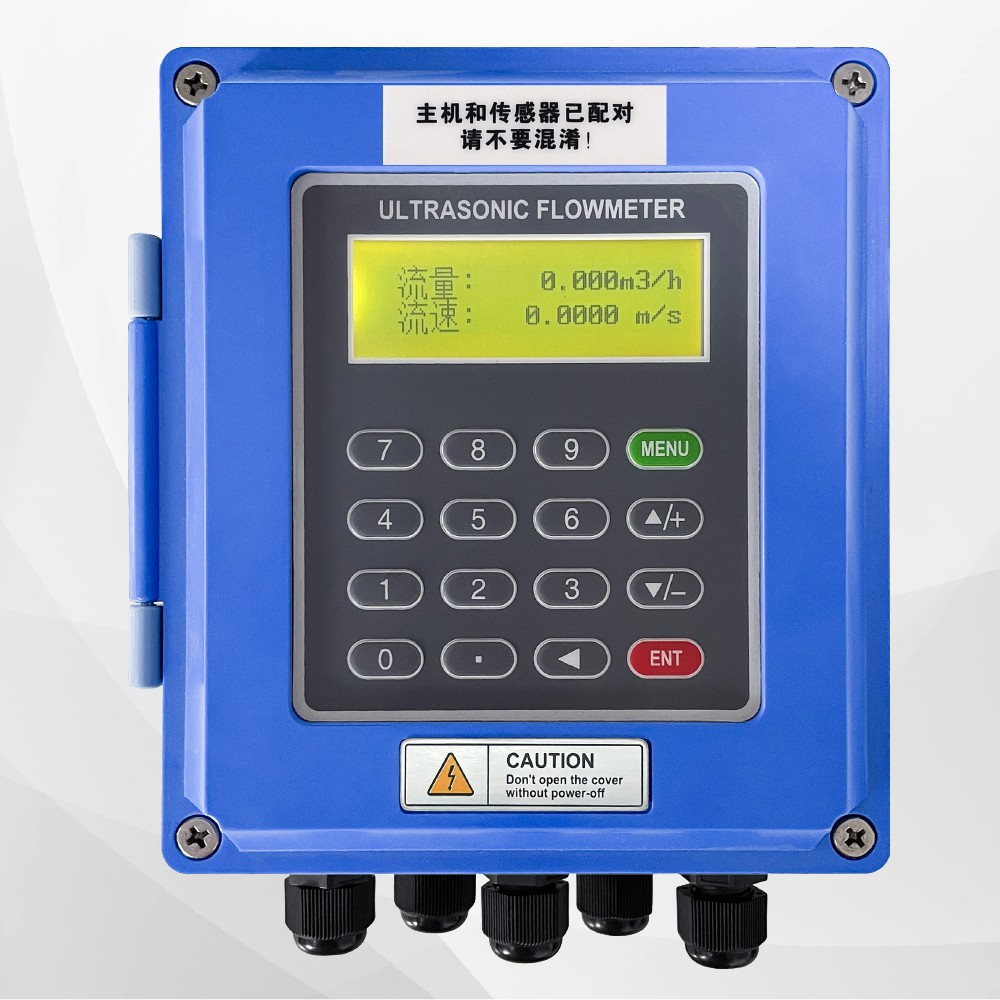

Ultrasonic flowmeter |
|

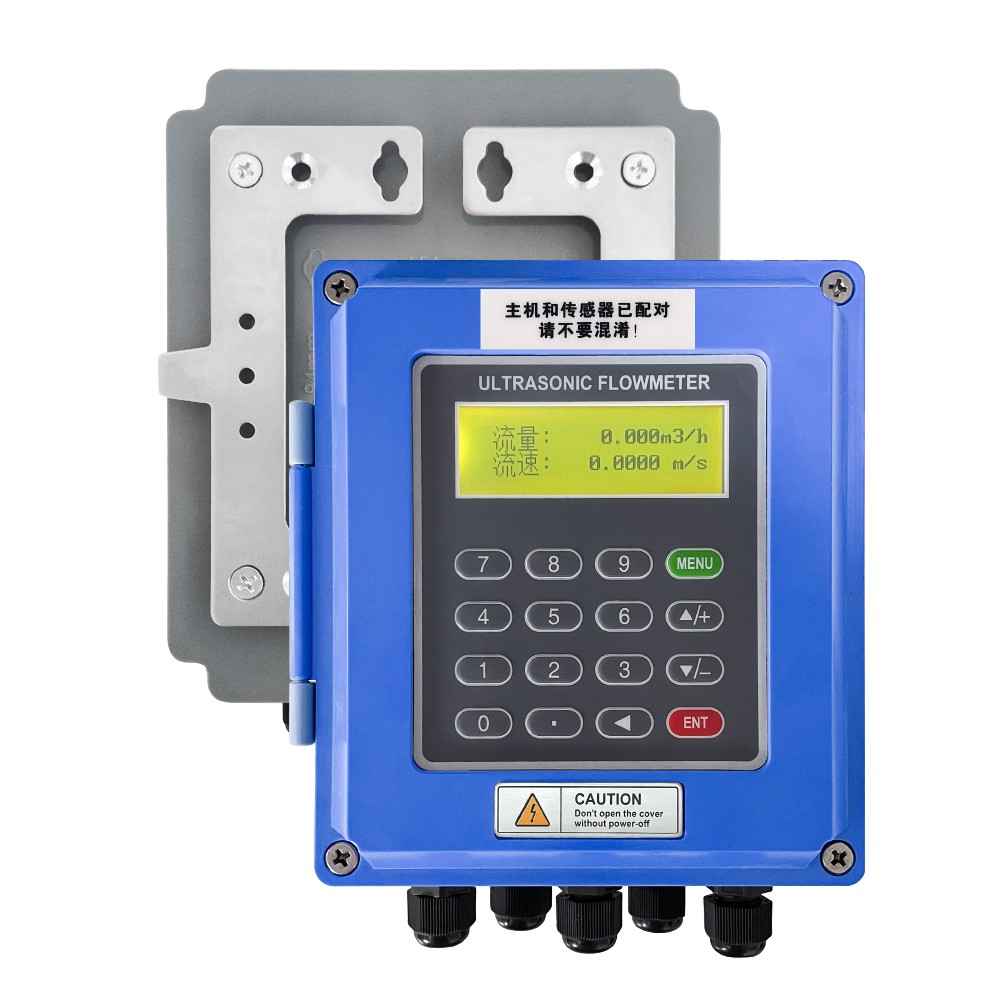

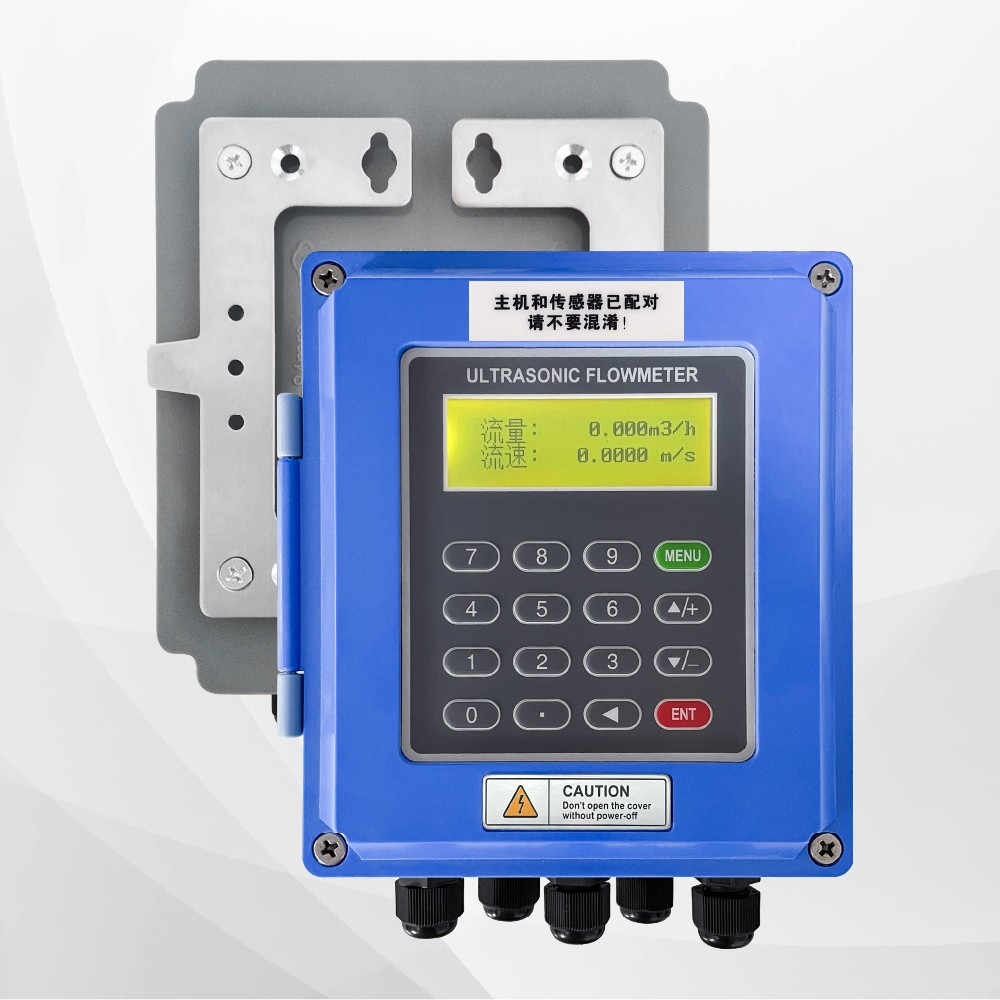

Installation method |
Wall mounted |
|
Display |
LCD display |
|
Accuracy level |
±1% |
|
Applicable caliber |
DN15~6000mm |
|
Protection level |
IP65 |
|
Product size |
140x85x170mm |
|
Weight |
0.6kg |
|
Shell material |
ABS engineering plastics |
|
Measurement medium |
A single stable liquid that can conduct ultrasonic waves, such as water, seawater, sewage, alcohol, etc |
|
Communication mode |
RS485，Supports modbus protocol |
|
Signal input |
3 analog inputs |
|
Signal output |
4-20mA output/relay output/pulse output |
|
Power supply mode |
220V AC/24.DC dual power supply |
|
Sensor temperature |
Standard probe: -40~90 ℃ High temperature probe: -40~160 ℃ |
—— EXTERNAL CLAMP TYPE SENSOR ——
• IP65 Protection level • Built in magnet,adsorption installation
Before installation,please verify the accuracy of pipeline and fluid parameters
settings to ensure the corrsctness of installation
Installation process
Choose installation method → Input measurement parameters → Surface treatment of pipelines
→ Installing sensors → Fixed sensor → Check installation
|
External clamp type sensor |
|
|
Product Name |
External clip typesmall probe |
|
Installation method |
Adsorption type |
|
Temperature |
-40~90℃ |
|
Measuring caliber |
DN15~100mm |
|
Protection level |
IP65 |
|
Shell material |
ABS engineering plastics |
|
Weight |
0.05kg |
|
Product size |
32×25×65mm |
|
External clamp type sensor |
|
|
Product Name |
External clamp type middle probe |
|
Installation method |
Adsorption type |
|
Temperature |
-40~90℃ |
|
Measuring caliber |
DN50~700mm |
|
Protection level |
IP65 |
|
Shell material |
ABS engineering plastics |
|
Weight |
0.15kg |
