وصف
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
|
ON/OFF One click power on/off |
Unit switch key mpa、kpa、mmHg psi、bar、kgf/cm2
|
Peak Value H1：Display peak value L0：Display valley value |
Backlight Backlight on after pressing the button |
Zero calibration Under no pressure conditions One click reset |

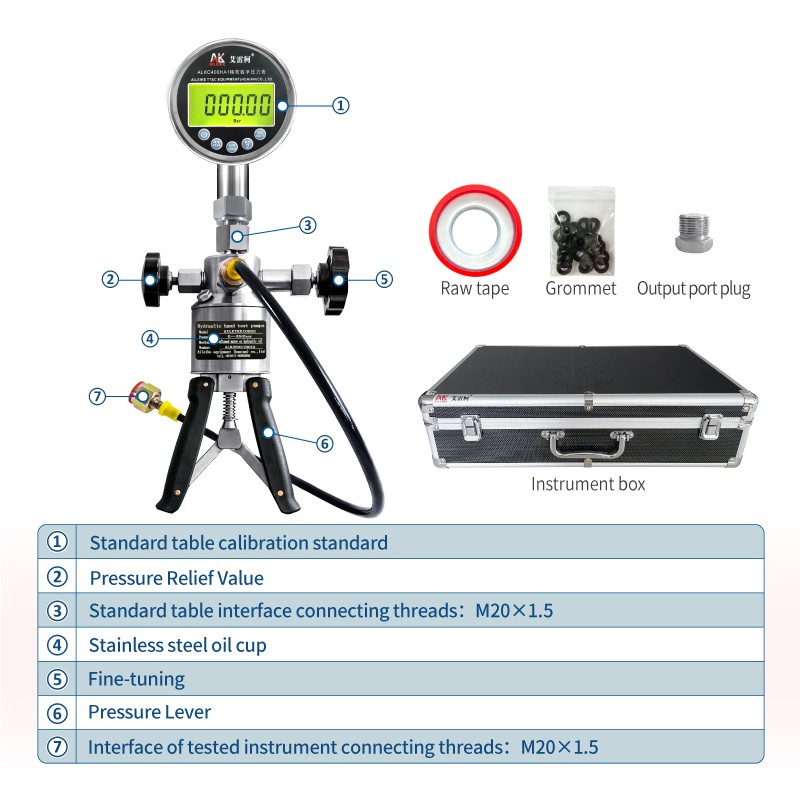

Standard table interface connecting threads: M20X1.5 |
Pressure Relief Value |
Stainless steel oil cup |
Fine-tuning |
Interface of tested instrument Connecting threads: M20X1.5 |
Pressure Lever |
|
Product name |
Intelligent handheld hydraulic instrument |
|
Model |
AILEIKE106SE+ALKC400HA1+ALKJ01 |
|
Measuring range |
0~350bar |
|
Environmentalconditions |
Laboratory or field |
|
Way of Pressure |
Hand movement |
|
Thread |
M20 × 1.5 |
|
Applicable medium |
Softened water or hydraulic oil |
|
Display |
5-digit display |
|
Accuracy |
0.1%FS |
|
Overload capacity |
1.2 times the upper range limit |
|
Power supply |
Lithium battery ( ER14505 3.6V) |
|
Net weight |
Approximately 4.6Kg |
|

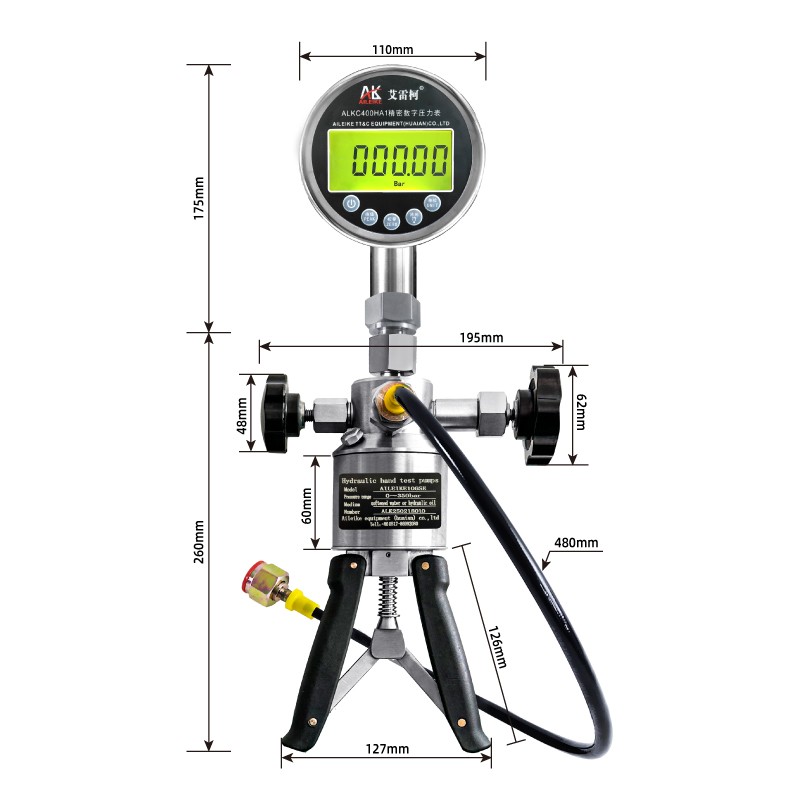

Size |
435×195×85mm |
|
Product weight |
Approximately 7.5kg (packaging material iscardboard box) |
|
Product packagingsize |
520×320×160mm |
|

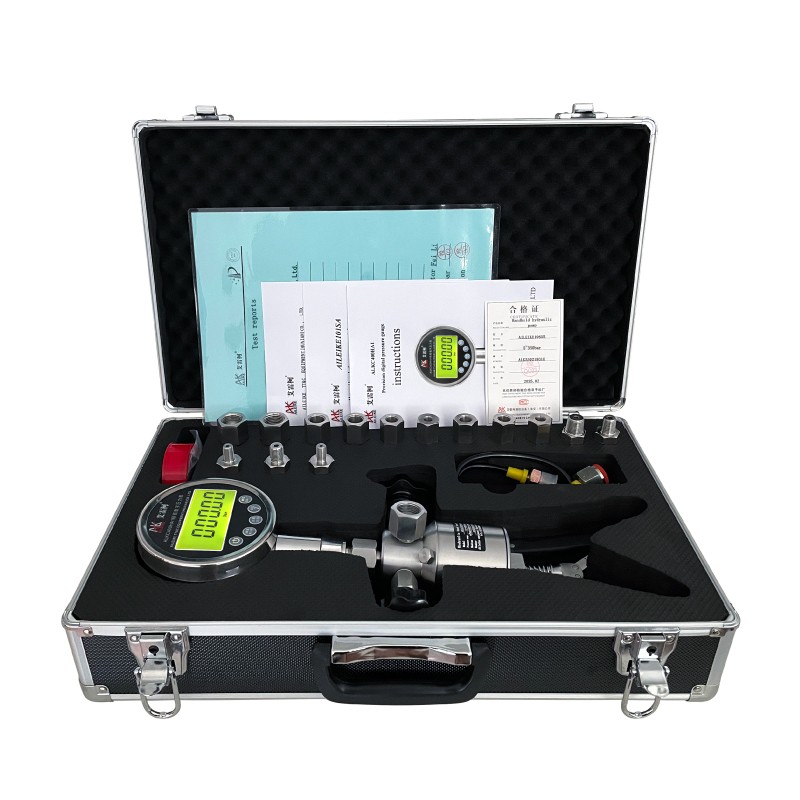

Product standardconfiguration |
Certificate of conformity x 1 copy Instructions x 1 copy Quality assurance card x 1 copy Output portplug x 1 piece Portable bag x 1 piece Gaskets x 40 piece PTFE sealing tape x 1 piece Pressure conversion joint x 14 piece |
|

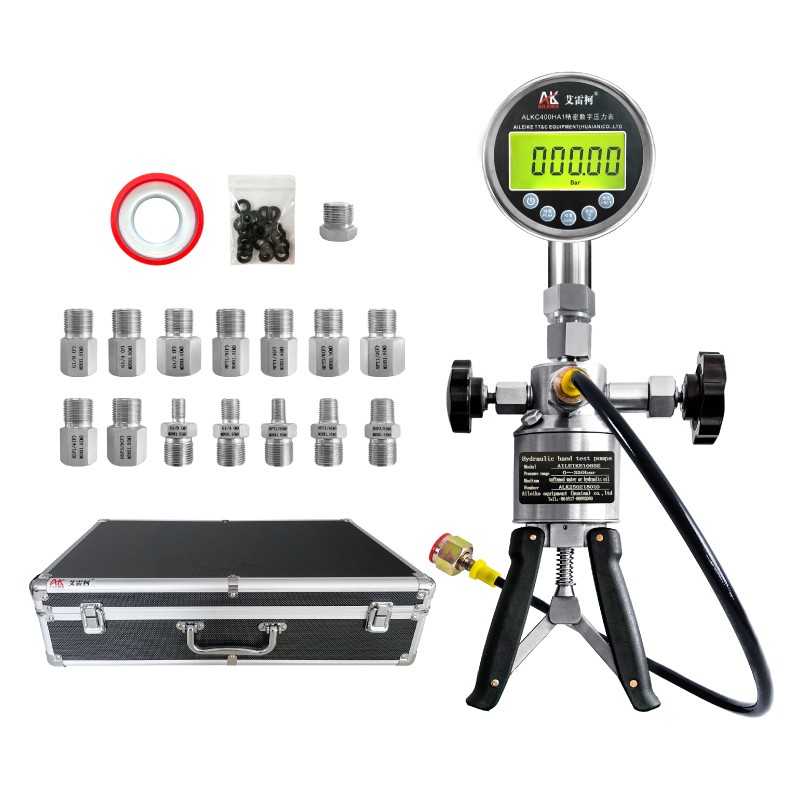

Equipped with fourteen conversion joints |
|
|
M20X1.5(M) G1/8(F) |
1 piece |
|
M20X1.5(M) G1/4(F) |
1 piece |
|
M20X1.5(M) G1/2(F) |
1 piece |
|
M20X1.5(M) NPT1/8(F) |
1 piece |
|
M20X1.5(M) NPT3/8(F) |
1 piece |
|
M20X1.5(M) NPT1/4(F) |
1 piece |
|
M20X1.5(M) NPT1/2(F) |
1 piece |
|
M20X1.5(M) BSP1/4(F) |
1 piece |
|
M20X1.5(M) BSP3/8(F) |
1 piece |
|
M20X1.5(M) G1/8(M) |
1 piece |
|
M20X1.5(M) G1/4(M) |
1 piece |
|
M20X1.5(M) NPT1/8(M) |
1 piece |
|
M20X1.5(M) NPT1/4(M) |
1 piece |
|
M20X1.5(M) BSP3/8(M) |
1 piece |
