Display screen LED keypad with backlight and temperature compensation, 5-digit or 6-digit display |
Communication interface RS-232/RS-485 interface It can communicate with the upper computer |
Function button Switch/peak/voltage/current Pressure/Zero/Unit/Calibration |
Connection method Threaded connection, default M20×1.5 |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
|
Power key Closes under pressure, opens when depressurized |
Power/Peak key Pressure switch testing or Peak/Valley recording |
Calibration key Select 5-bit or 6-bit display When calibration is required Select the calibration object Press and hold for 3 seconds to enter the calibration state |
Voltage key Voltage measurement |
Current key Current measurement |
Pressure selection key Multi-Module selectable pressure ranges |
Zero calibration key One-Touch zeroing under no-load condition |
Unit switch key kPa、MPa、hPa、Pa、psi inH2O、inHg、mbar、bar mmH2O、cmH2O、 mH2O、mmHg mHg、kgf/cm²、Torr、atm |

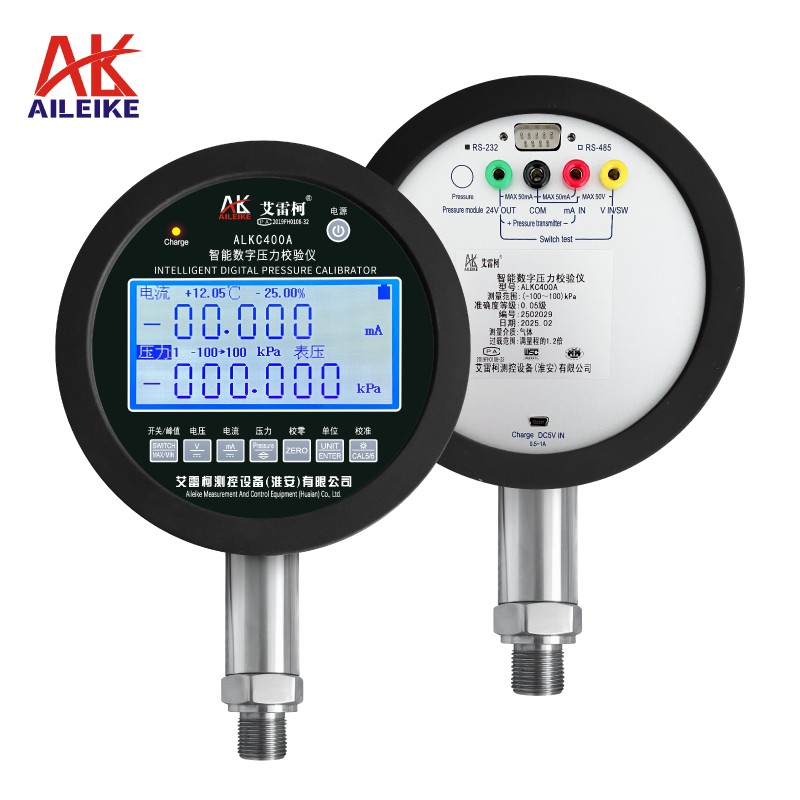

24V power supply |
Common terminal |
RS-232/RS-485 |
Measuring current port |
Measure voltage port |

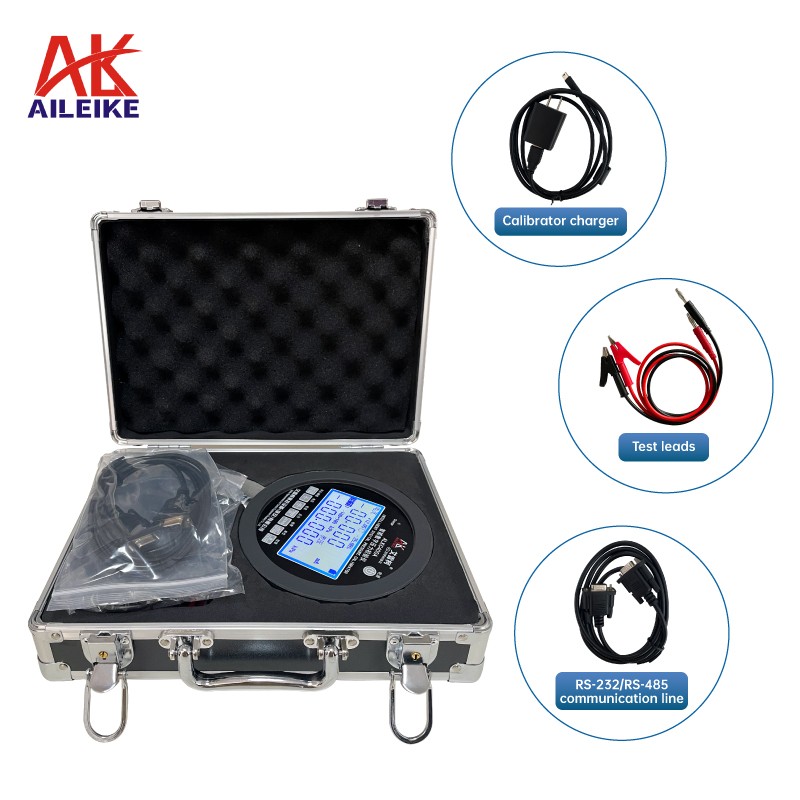

Charging interface |
|
Product name |

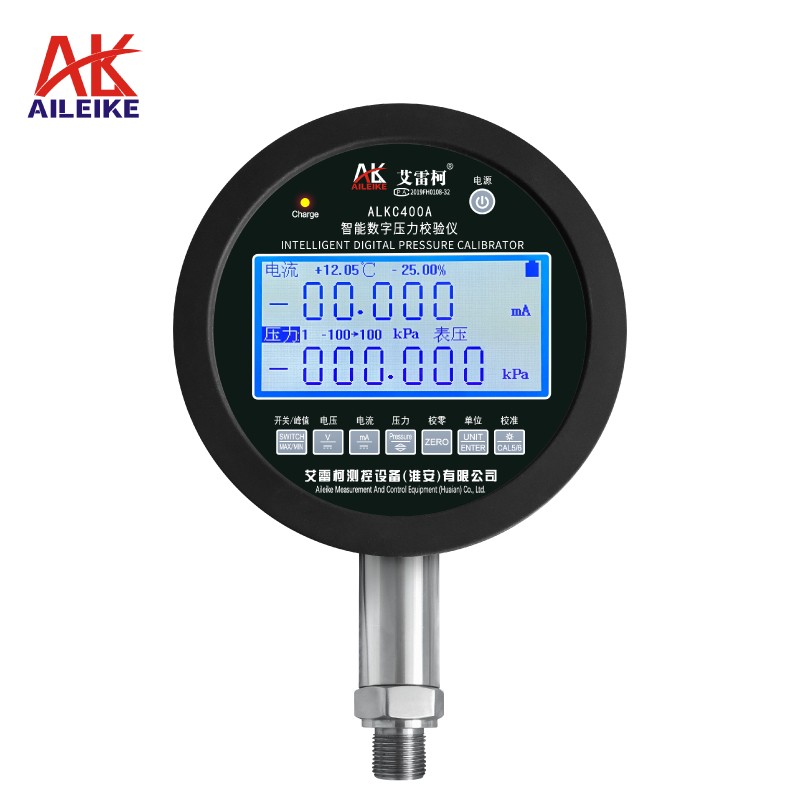

Digital pressure calibrator |
|
Model |
ALKC400A |
|
Measuring range |
-1~2500bar/-14.5~36000psi/-0.1~250MPa(Pressure selectable)
|
|
Accuracy class |
0.05%FS/0.02%FS |
|
Communication model |
RS-232 or RS-485 |
|
Current measurement |
±25.0000mA |
|
Voltage measurement |
±50.0000V |
|
DC output |
24VDC |
|
Temperature range |
0~50 ℃ (with temperature compensation) |
|
Pressure connection |
The thread size is M20 × 1.5(M). If you need other thread sizes, please contact us for consultation.
|
|
LCD display |
Press the button to select 5 or 6 digits for display |
|
Overload capacity |
1.2 times the upper range limit |
|
Power supply |
External charger 220VAC 50HZ 3VA |
|
Measurement medium |
Non corrosive liquids/gases |
|
Net Weight |
Approximately 1kg(Only for the pressure gauge body) |
|
Product size |
156×47×239mm |
|

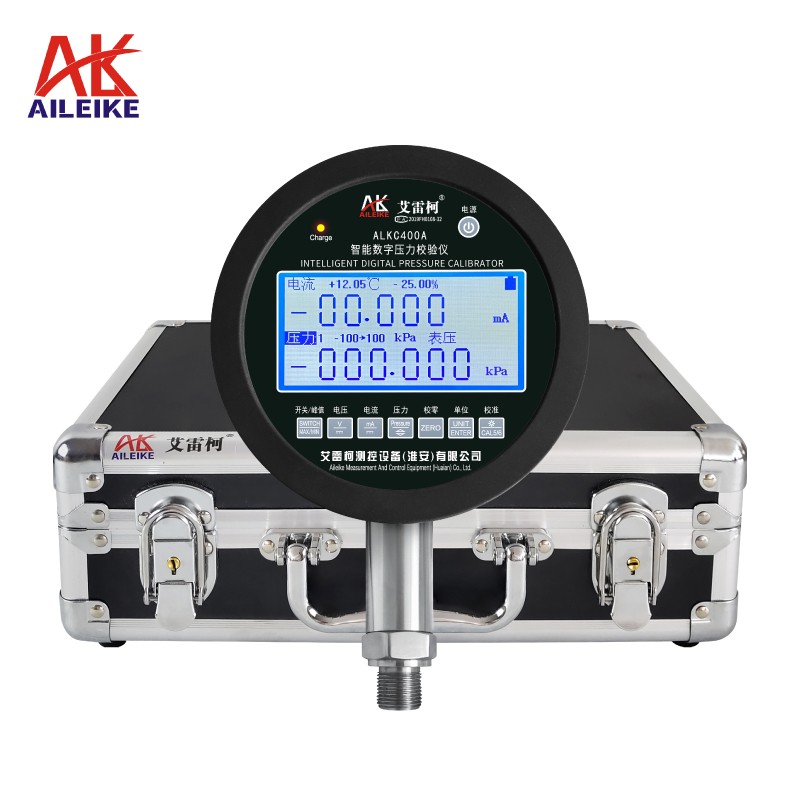

Box size (aluminum box) |
310×240×110mm |
|
Packaged weight |
Approximately 6kg |
|
Product packaging size |
410×340×210mm |
