Handheld pressure gauge AILEIKE102SB+ALKC400HA1+ALKJ01 0~360psi

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

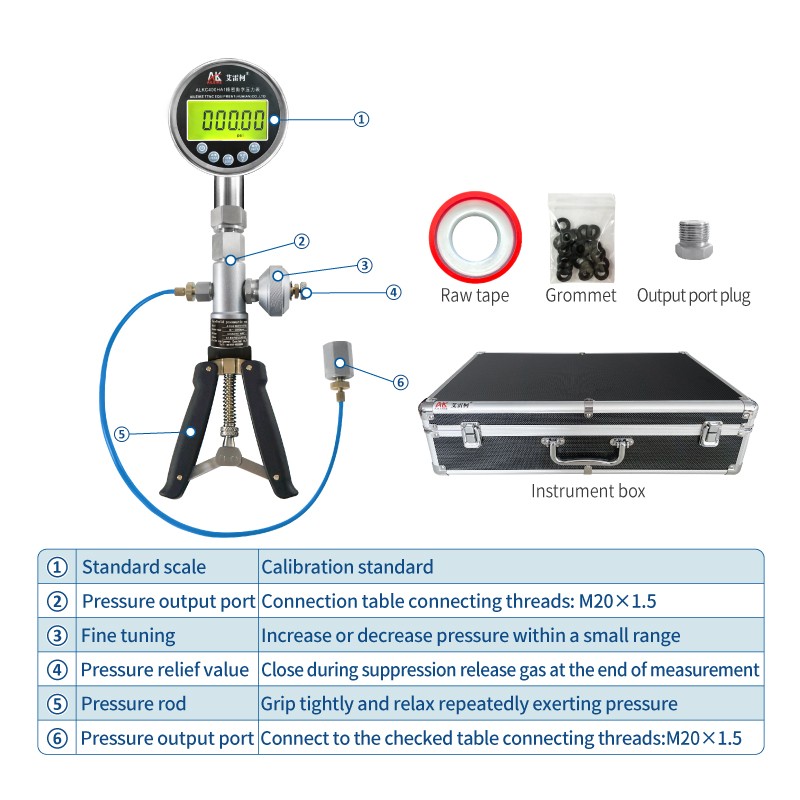

ON/OFF

One click

power on/off

Unit switch key

mpa、kpa、mmHg

psi、bar、kgf/cm2

Peak value

H1：Display

peak value

L0：Display

valley value

Backlight

Backlight onafter pressingthe button

Zero calibration

Under no pressureconditionsOne click reset

Pressure reliefValve

Close during suppressionAt the end of themeasurementRelease gas

Pressure outputPort

Connect to thechecked table

Fine tuning

Increase within a smallrange or reduce pressure

Pressure rod

Grip tightly and relaxRepeatedly carry outGenerating pressure

Pressure output port

Connect to the

checked table

Connecting threads:

M20X1.5

Product name

Handheld air pressure pump (Including pressure gauge and connector)

Model

AILEIKE102SB﹢ALKC400HA1+ALJ01

Measuring range

0~360psi

Environmental conditions

Laboratory or field

Way of Pressure

Hand movement

Basic thread

M20×1.5

Applicable medium

Ambient air

Display

5-digit display

Accuracy

0.1%FS

Overload capacity

1.2 times the upper range limit

Power supply

Lithium battery ( ER14505 3.6V)

Net weight

Approximately 1.5Kg

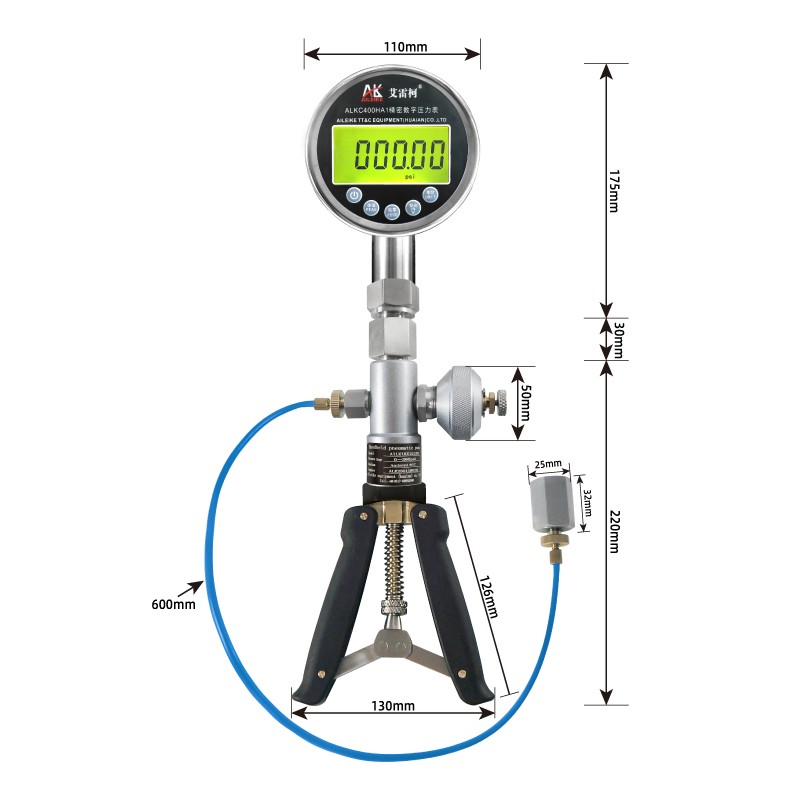

Size

425×110×50mm

Weight after product packaging

Approximately 5.5Kg

Product packaging size

520×320×160mm

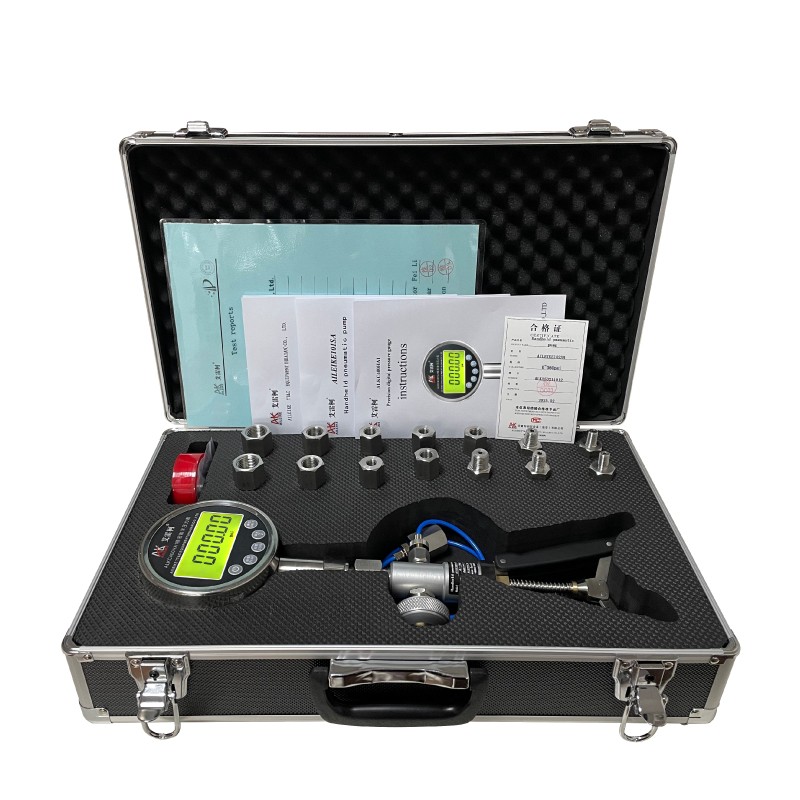

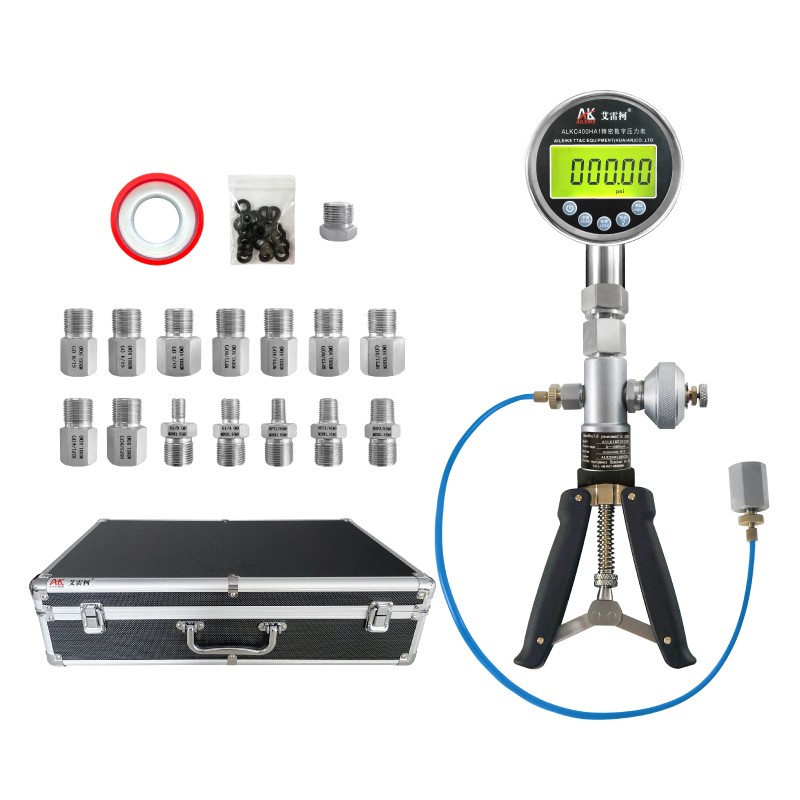

Product standard

configuration

Certificate of conformity x 1 copy

Instructions x 1 copy

Quality assurance card x 1 copy

Output portplug x 1 piece

Instrument box x 1 piece

Gaskets x 40 piece

PTFE sealing tape x 1 piece

Pressure conversion joint x 14 piece
