وصف
| 1 | 2 | 3 | 4 |
5
|
6 |
|

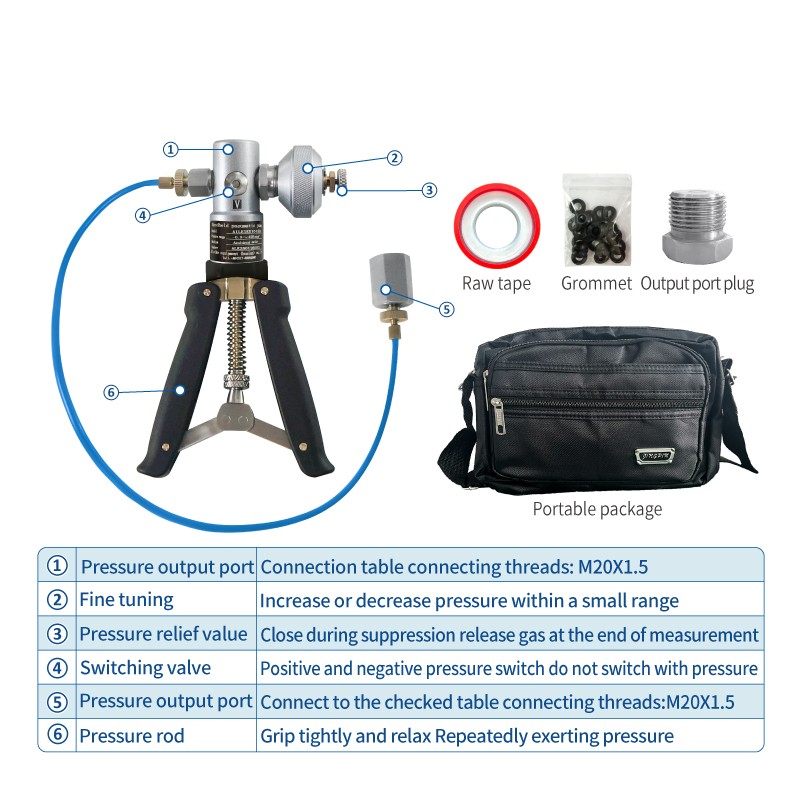

Pressure cutiet Connection standard table Connecting threads: M20X1.5 |
Fine tuning Increase or decreasepressure within a smallrange |
Switching valve Positive and negativepressure switch donot switch withpressure |
Pressure ReliefValue The pressure is closedat the end of the measurementand the gas is released |
Pressure rod
Grip tightly andrelax Repeatedly exerting pressure |
Pressure output port
Connect to the checkedtable
Connecting threads: M20X1.5 |

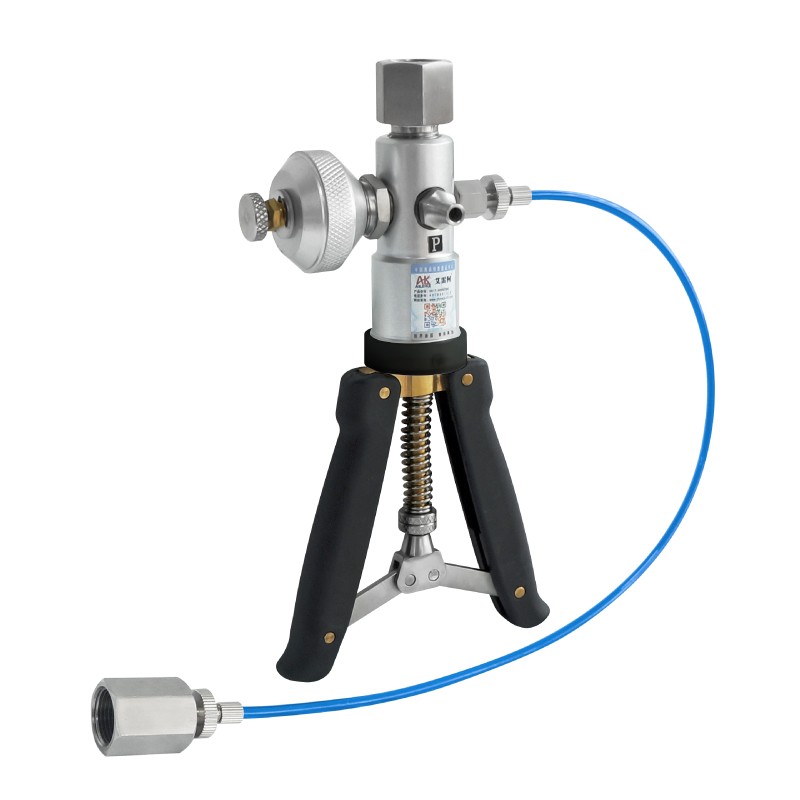

| Product name | Handheld pneumatic pump |
| Model | AILEIKE104SB |
| Measuring range | -0.9~40bar |
| Environmental conditions | Laboratory or field |
| Way of Pressure | Hand movement |
| Basic thread | M20×1.5 |
| Applicable medium | Ambient air |
| Net weight | Approximately 0.8Kg |

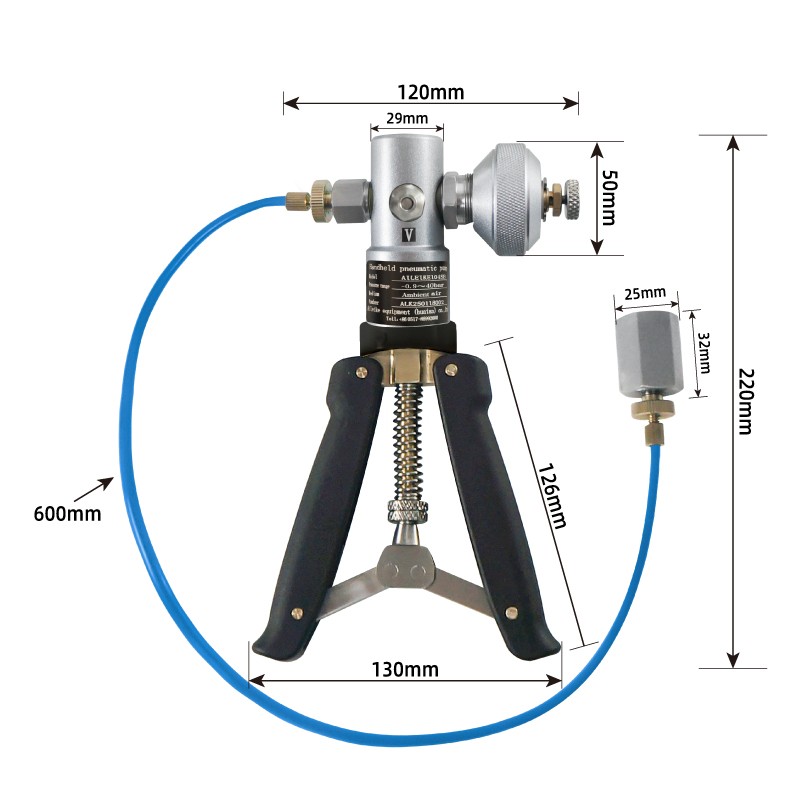

| Size | 220×120×50mm |
| Weight after product packaging | Approximately 3.8Kg |
| Product packaging size | 310×290×160mm |
|

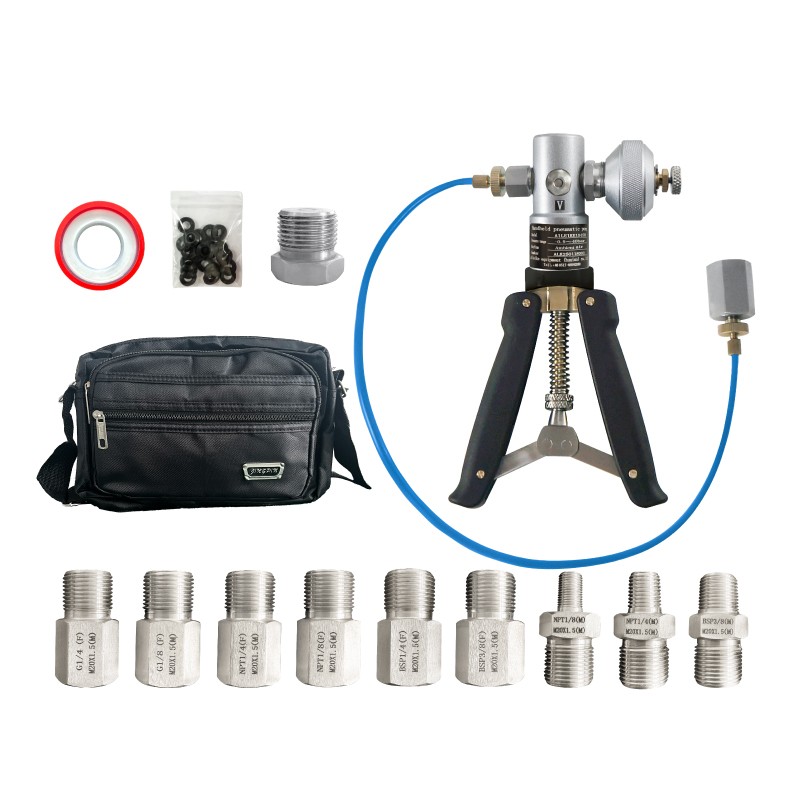

Product standard configuration |
Certificate of conformity x 1 copy Instructions x 1 copy Quality assurance card x 1 copy Output portplug x 1 piece Portable bag x 1 piece Gaskets x 40 piece Raw tape x 1 piece Pressure conversion joint x 9 piece |
| Equipped with nine conversion joints | |
| M20X1.5(M) G1/4(F) | 1 piece |
| M20X1.5(M) G1/8(F) | 1 piece |
| M20X1.5(M) NPT1/4(F) | 1 piece |
| M20X1.5(M) NPT1/8(F) | 1 piece |
| M20X1.5(M) BSP1/4(F) | 1 piece |
| M20X1.5(M) BSP3/8(F) | 1 piece |
| M20X1.5(M) NPT1/8(M) | 1 piece |
| M20X1.5(M) NPT1/4(M) | 1 piece |
| M20X1.5(M) BSP3/8(M) |
1 piece |
