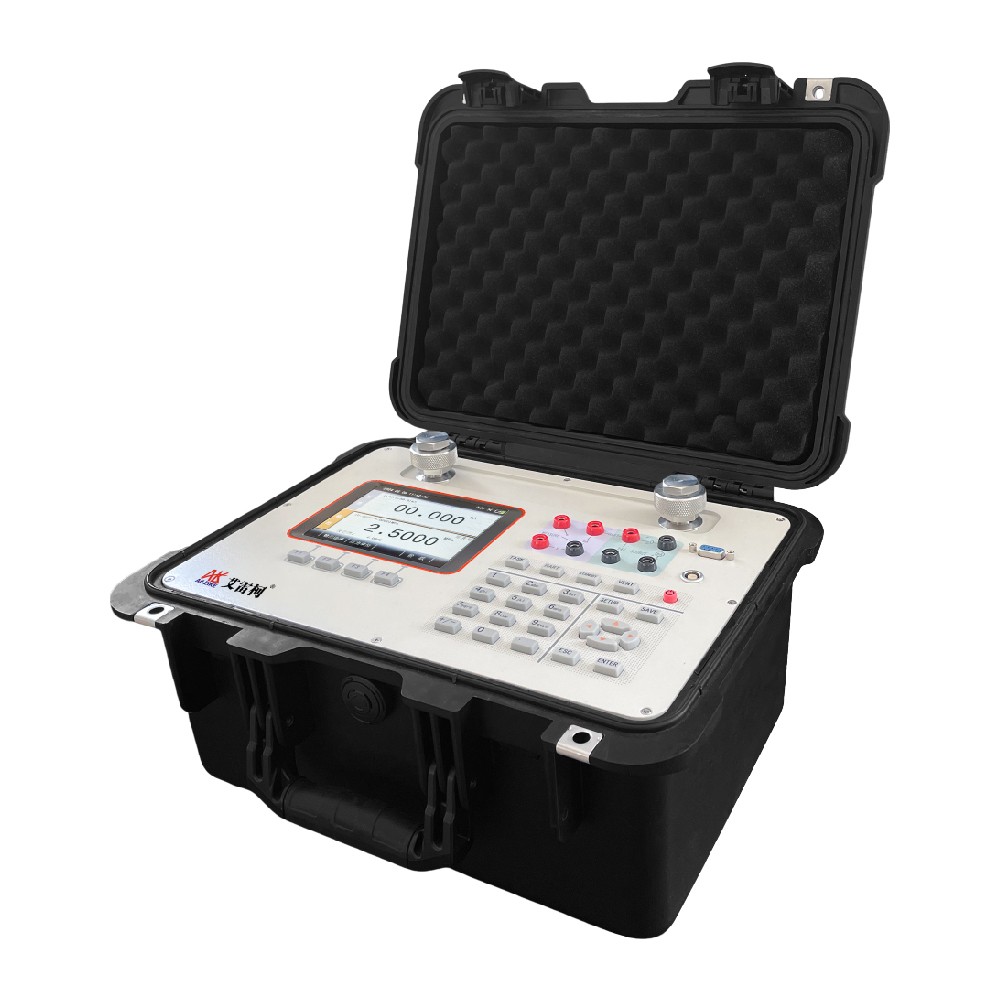

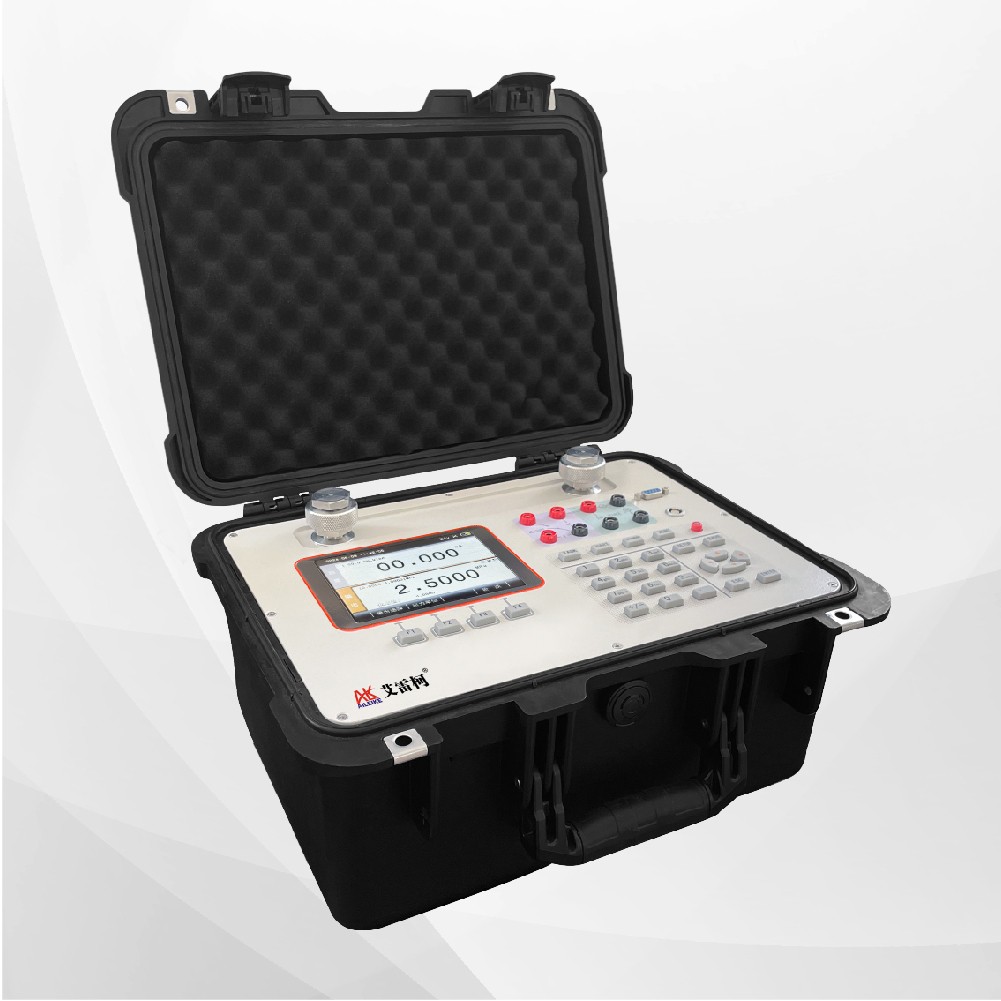

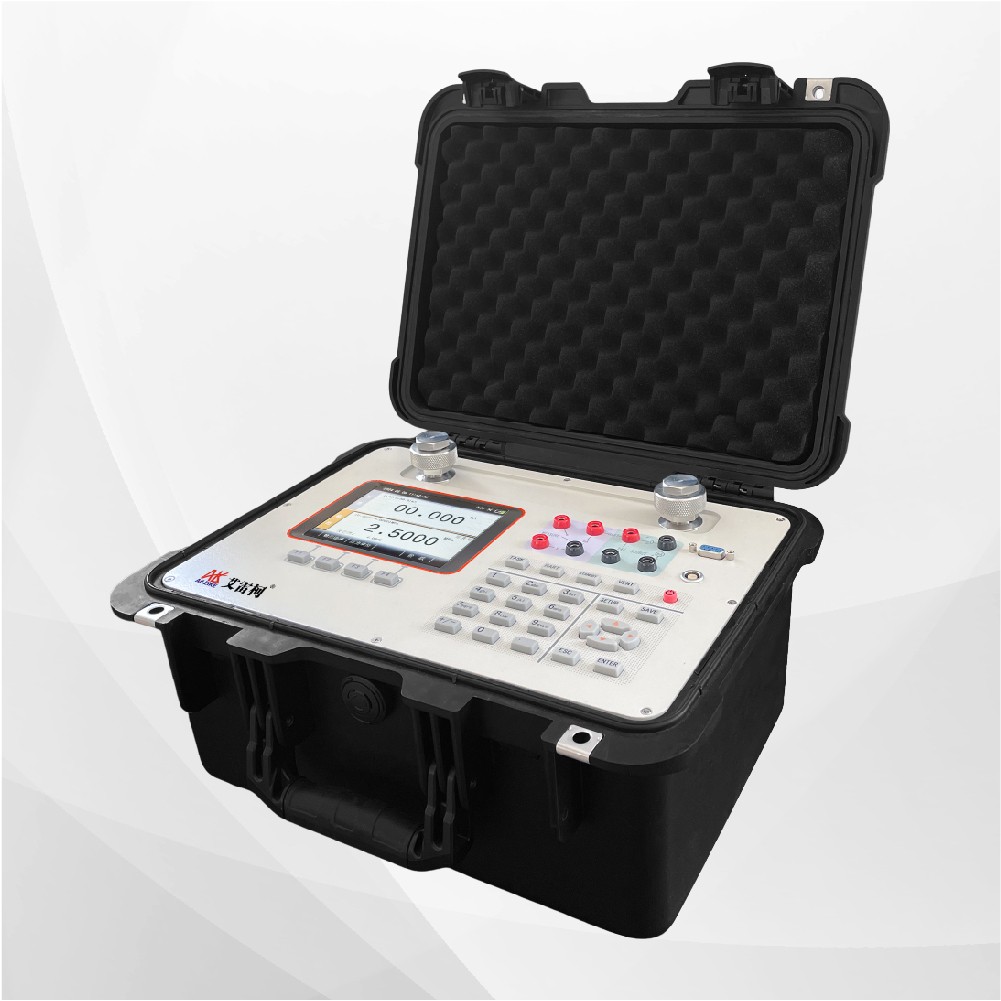

ALKD900C fully automatic pressure calibrator

Product Information

Product name

Fully automatic pressure calibrator

Model

ALKD900C

Pressure range

-0.95~25bar

Accuracy

0.05%F.S

Communication

RS-232

Output port

Two

Current Measurement

-30~30mA

Voltage measurement

-30~30V

Current output

0~22mA

DC Output

24VDC

Temperature range

5~50℃

Relative humidity

≤80%RH

HART function

Equipped with HART protocol

LCD display

Press the button to select 5 or 6 digits fordisplay

Overload capacity

1.2~1.5 times the full range

External dimensions

370×300×200mm

Weight

12kg

Product packaging size

Approximately 18kg

Product packaging weight

410x340x340mm(packaging material isWooden box)

power supply

External charger 220VAC 50HZ

Measurement medium

Clean air

Standard accessories

Pa、kPa、MPa、psi、bar、mbar、inHg、mmHg、inH2O、mmH2O、kgf/cm²

Annex

Plug x 2

sealing rings x 2

testing lines x 2

filters x 1

connecting line x 1

Adapter x 1

certificate x 1

instruction manual x 1

1

2

3

4

5

6

7

8

9

Output port 1

Display

Navigation

assistance key

Output port 2

RS-232

communication

interface

Pressure

module

Power

switch key

Button

Description

Alpha numeric

keypad area

1

2

3

4

5

6

Switching

measurement

HART

connection

Internal power

supply current

output

± 30V voltage

measurement

± 30mA

current

measurement

24VDC DC output
