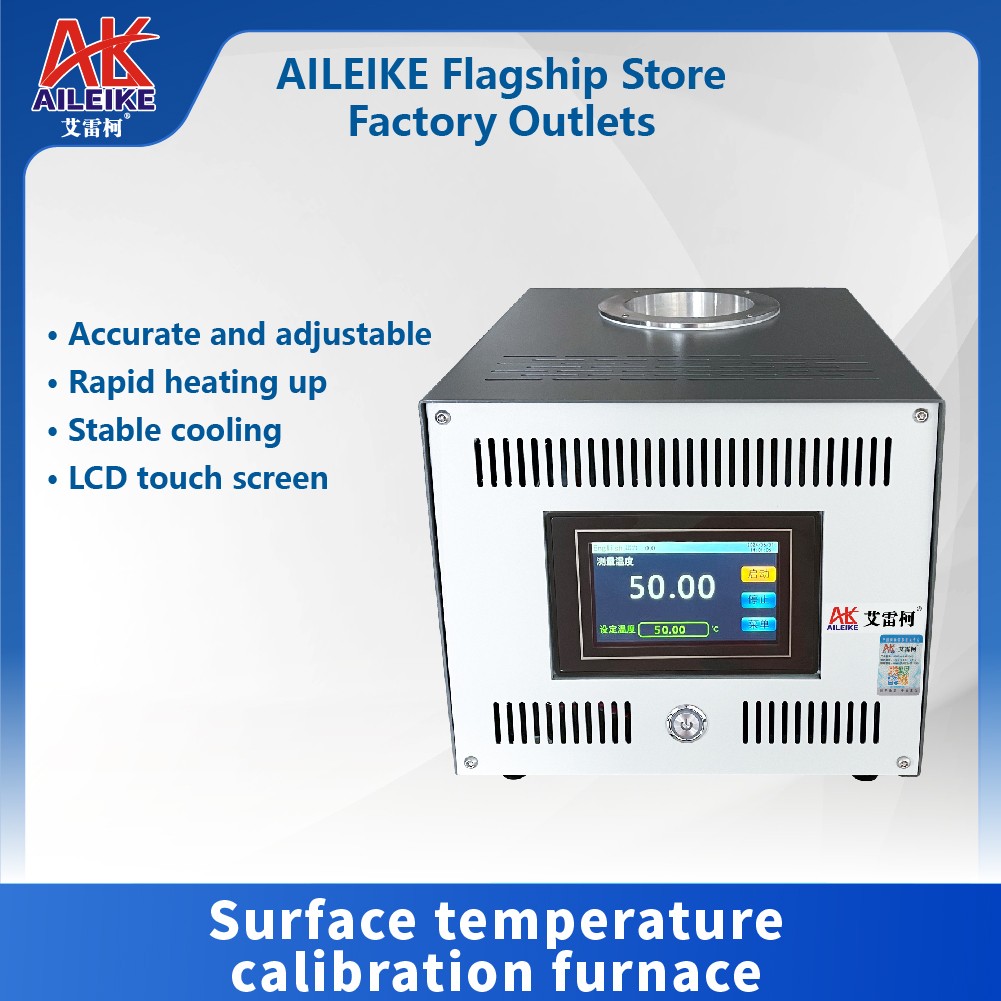

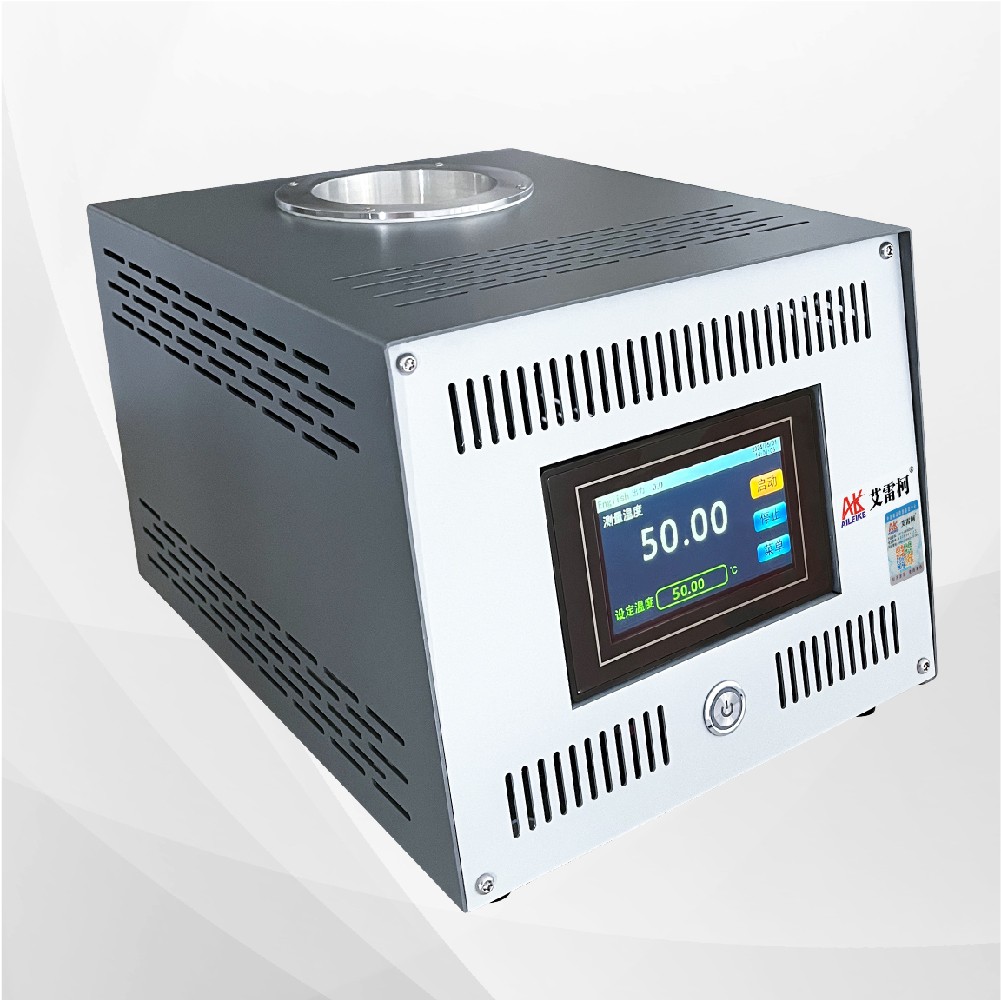

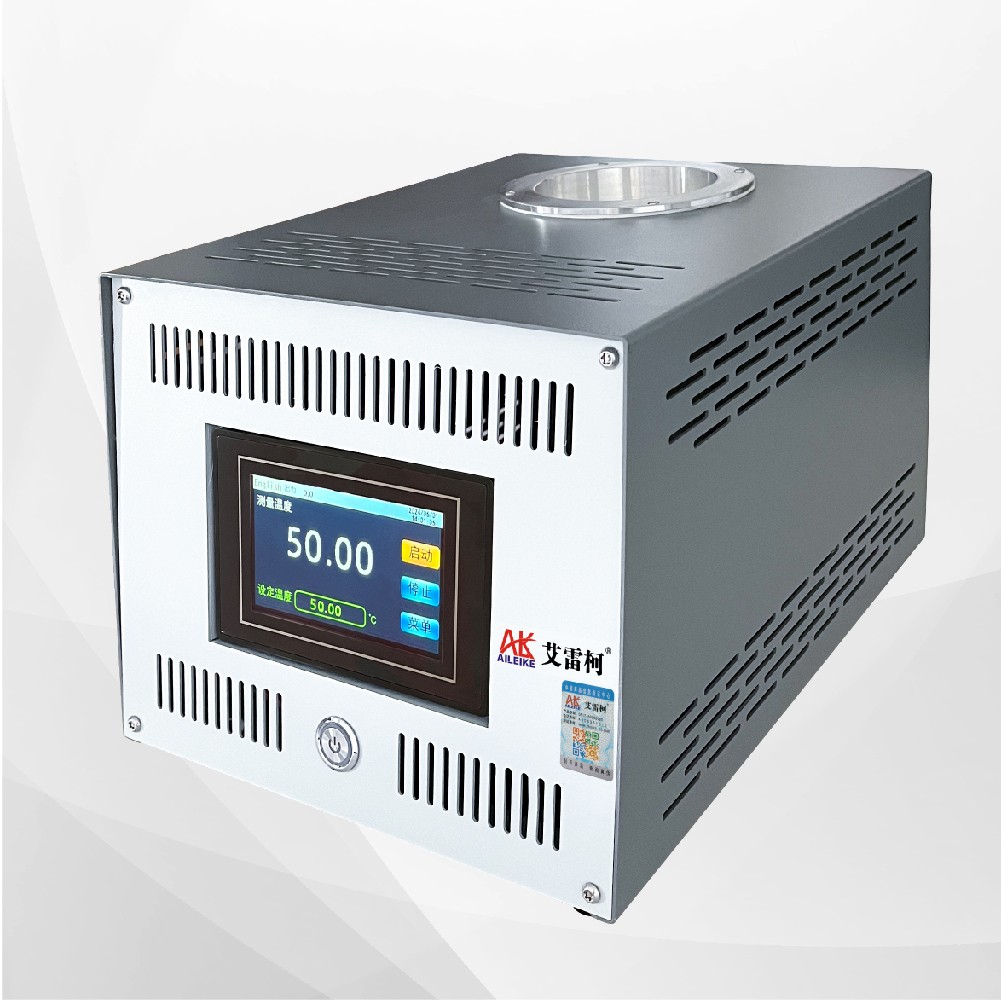

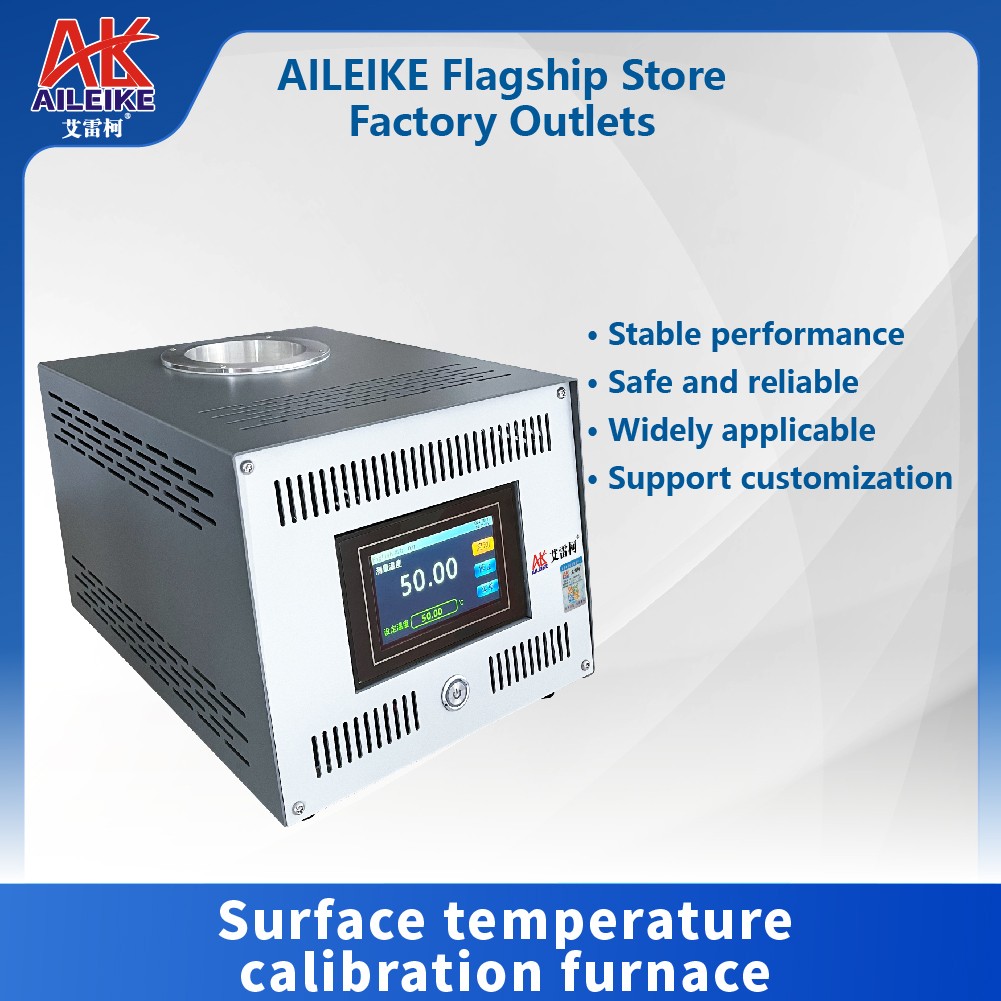

Surface temperature calibration furnace ALKW851E

Product Information
Product name	Surface temperature calibration furnace
Model	ALKW851E
Temperature range	(Room temperature+5)~400 ℃/30~400 ℃/50~400 ℃
Control mode	LCD Touch Screen
Display resolution	0.01℃
Measurement surface	φ90mm
Accuracy	± 1.0@200 ℃, ± 1.5@400 ℃
Stability	± 0.3@100 ℃, ± 0.4@200 ℃ ± 0.6@300 ℃, ± 1.0@400 ℃
Uniformity	±0.4℃@100℃, ±0.6℃@200℃ ±1.0℃@300℃, ±1.5℃@400℃
Display method	Switching between Chinese and English
Usage environment	There is no corrosive gas, flammable orexplosive gas in the surrounding area
External dimensions	250x330x220mm
Weight	6.1kg
Produce packaging size	410×410×300mm
Produce weight	Approximately11.1kg (packaging material isWooden box)
Power supply	AC220V±10℃ 50HZ/60HZ
Power	400W
Standard accessories	Instruction manual x 1 Certificate of conformity x 1 Quality assurance card x 1

Temperature measurement plane

Temperature controlled

LCD display screen

Electric furnace switch

Fast heating and cooling speed

The surface temperature calibration furnace reaches the predetermined temperature

point and the temperature stabilizes faster than the constant temperature bath,

This can greatly save the time of calibration personnel and

improve the speed of temperature calibration.

Surface temperature calibration furnace heating time
ALKW851E (room temperature+5~400℃)	ALKW851E (30~400℃)	ALKW851E (50~400℃)
26~100 ℃ / 16 minutes	30~100℃ / 15 minutes	50~100℃ / 10 minutes
100~200℃ / 20 minutes	100~200℃ / 20 minutes	100~200℃ / 20 minutes
200~300℃ / 21 minutes	200~300℃ / 21 minutes	200~300℃ / 21 minutes
300~400℃ / 16 minutes	300~400℃ / 16 minutes	300~400℃ / 16 minutes

Surface temperature calibration furnace cooling time
Total duration	Time division
400~50℃ / 111 minutes	400~300℃ / 12 minutes
400~30℃ / 217 minutes	300~200℃ / 15 minutes
	200~100℃ / 33 minutes
