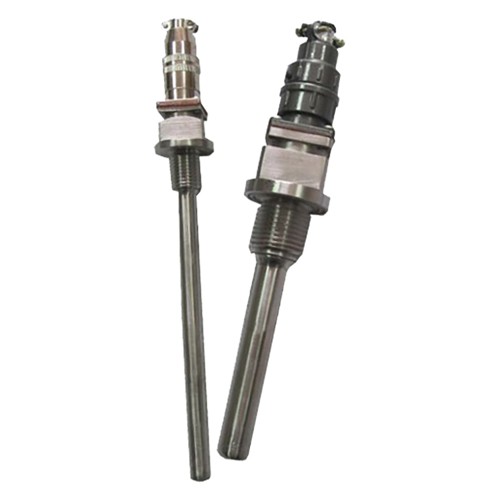

Armored thermal resistance wzpk-163S

وصف

Overviews

Armored thermal resistance wzpk-163s is a kind of temperature sensor, which is smaller than the fabricated resistance in diameter, easy to bend and good in seismic resistance. It is suitable for installation in the situation where the fabricated platinum resistance cannot be installed. It has the advantages of accuracy, sensitivity, fast thermal response time, stable quality and long service life.

Specification

Warranty	1years
Place of Origin	China
	Jiangsu
Brand Name	AILEIKE
Model Number	WZPK-163S
Size:	custom

Product application

Type selection

Technical index

Dividing numberPt100:A Ro=100 ±0.06Ω

Class B Ro=100 ±0.12Ω

Range specification

Type number	Dividing number	Temperature range ℃	Precision grade	Allowable deviation t ℃
WZPK	Pt100	-200 / 500	Class A	±(0.002 or + 0.002 / t /)
WZPK	Pt100	-200 / 500	Class B	±(0.3 or + 0.005 / t /)
