overviews

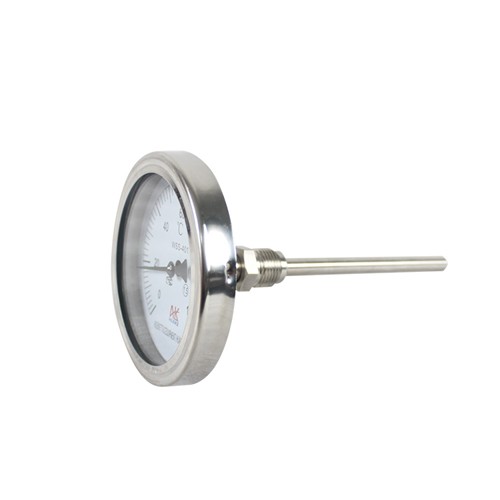

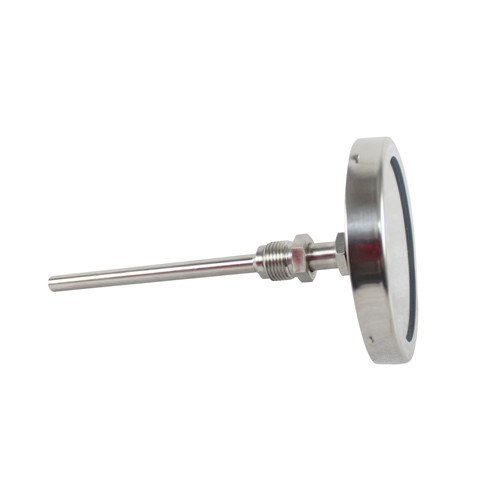

Bimetallic thermometer wss-401 is a kind of on-site instrument for measuring low and medium temperature. It can directly measure the temperature of liquid vapor and gas medium in the range of - 80 ℃ - + 500 ℃ in various production processes. Compared with mercury glass thermometer, it has the advantages of no mercury harm, easy reading, strong and durable.
Specification
Bimetallic thermometer is a single-needle indicating thermometer in which one end of the bimetallic sheet is fixed and the other free end is connected with the pointer needle, which rotates with the change of temperature and drives the pointer to rotate to indicate the temperature.
Technical characteristics
Temperature range:-80-500 ℃
Level of accuracy:Level 1.0 / 1.5
DialOuter diameter:φ 60, φ 100, φ 150 mm.
Tail tube length:100-2000mm .
Tail tube diameter:φ 6, φ 10, φ 12
Installation part thread: M16X1.5 / M27x2 / G _ 1 / 2 / G _ 3 / 4: M16X1.5 / M27X _ 2 / G _ 1 / 2 / G _ 3 / 4
Withstand pressure:6.4MPa .
Model representation
Working conditions
|
Thermometer type
|
Workplace
|
Temperature and temperature
|
|
|
Ordinary
|
Masking place
|
-25 / 55
|
5% 100%
|
|
Outdoor place
|
-40 / 85
|
5% 100%
|
|
|
|
-40 / 55
|
<85
|
|
|
In order to ensure the correct flood and reading of thermometer, it should be avoided to use it in the case of vibration or pulsation. |
|||
|
Type number
|
Temperature range ℃
|
Precision grade
|
Protective pipe material
|
Gauge lattice
|
Installation and fixing device
|
|
|
D
|
L
|
|||||
|
WSS-300
|
-120
0-80
0-100
0-150
0-200
0-400
0-500
|
1.5
|
1Cr18Ni9Ti
304
316
316L
Haas C ≤ 276
|
Φ 60
|
75
100
150
200
300
400
500
750
1000
|
No fixing device
|
|
WSS-400
|
Φ 100
|
|||||
|
|
Φ 150
|
|||||
|
WSS-301
|
Φ 60
|
Movable external thread
|
||||
|
WSS-401
|
Φ 100
|
|||||
|
|
Φ 150
|
|||||
|
WSS-302
|
Φ 60
|
Movable internal thread
|
||||
|
WSS-402
|
Φ 100
|
|||||
|
WSS-502
|
Φ 150
|
|||||
|
WSS-303
|
Φ 60
|
Fixed thread
|
||||
|
WSS-403
|
Φ 100
|
|||||
|
WSS-503
|
Φ 150
|
|||||
|
WSS-304
|
Φ 60
|
Fixed flange
|
||||
|
WSS-404
|
Φ 100
|
|||||
|
WSS-504
|
Φ 150
|
|||||
|
WSS-305
|
Φ 60 |
|
||||
