Box type electric pressure calibration table alkd101a

وصف

Overview

Quick Details

Warranty:

1 years

Place of Origin:

Jiangsu, China

Brand Name:

AILEIKE

Model Number:

ALKD101A

Pressure range::

-0.1~4.0MPa

Current measurement range::

0 ~ 22mA

DC output::

24 VDC

Accuracy::

0.05% F.S (pressure) 0.05% (current)

Temperature range::

5 ~ 50 ℃

Power supply voltage::

AC220V

Relative humidity::

no more than 80% RH

Overload capacity::

1.2 ~ 1.5 times of full scale

Overall dimension::

8.260*240*260m m

Weight::

13 kg

Packaging & Delivery

Lead Time:

Quantity(Pieces)	1 - 1	>1
Est. Time(days)	30	To be negotiated

Product Description

Specification

item	value
Warranty	1 years
Place of Origin	China
	Jiangsu
Brand Name	AILEIKE

Packing & Delivery

Packing：Standard packaging Port: any port in China, etc Delivery time: 5-7 working days after receiving the deposit

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Functional features

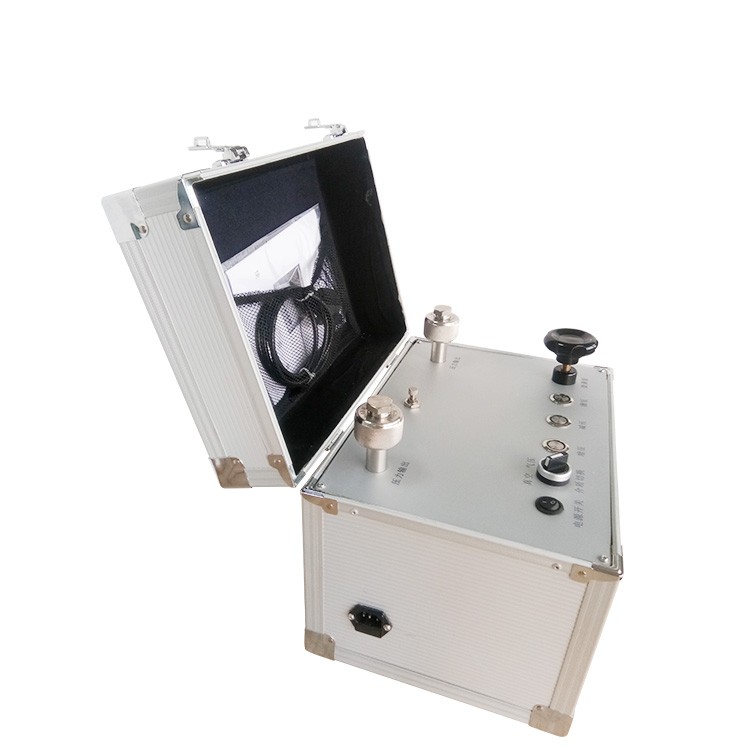

The electric pressure calibration table has its own electric pressure source, built-in ultra-quiet electric pressure pump, and
adopts the solenoid valve grouping type to adjust the pressure. Beautiful appearance, compact structure, simple operation, is the calibration of pressure transmitter, differential pressure transmitter, spring tube type ordinary (precision) pressure gauge, pressure vacuum gauge, pressure detector ideal standard.
The electric pressure calibration table is a portable instrument powered by AC power. The pressure is adjusted by the button. It is simple to use and the pressure is stable.
The characteristics of
1. The pressurizing system adopts super silent air compressor, which has the characteristics of fast pressurizing speed and long service life under the use of noise.

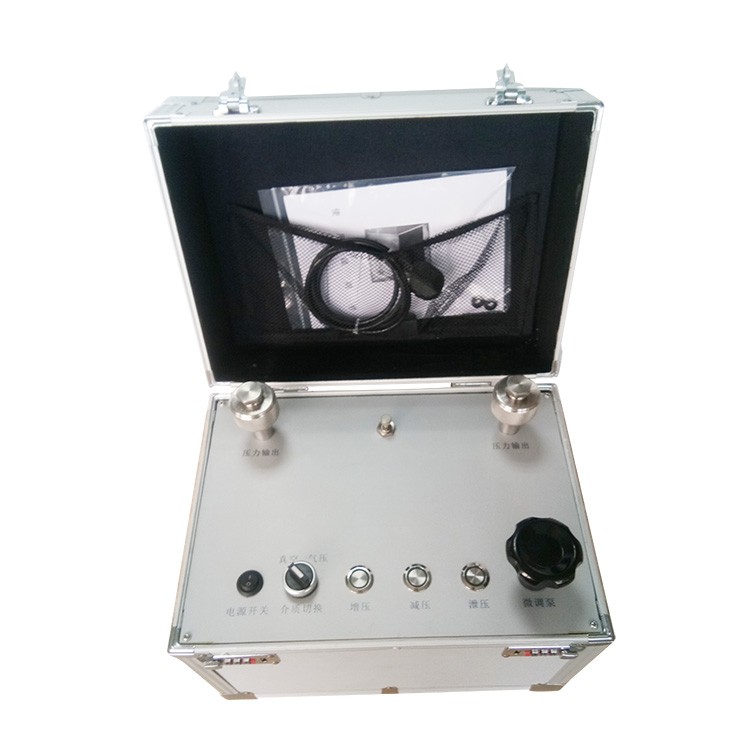

2. The front panel is equipped with pressure regulating button, with pressure pressing button, pressure reducing button and pressure releasing button.
3. Electric vacuum occurs at 95%. The parts of the pressure generator are finely ground with good air tightness and meet the IP54 sealing standard.
4. The pressure value of the instrument can be adjusted timely through the operation of the panel button.
5. Metal shell, strong anti-interference, strong impact resistance.
6. Volumetric fine-tuning, easy to realize arbitrary pressure point detection.
Technical indicators
1 Pressure range :-0.1 ~ 4.0Mpa
2. Adjusting sensitivity :1Pa(according to pressure range)
3 Accuracy: 0.05% F. S(pressure)
4. Temperature range :5 ~ 50℃
5. Power supply voltage: A C 220V
6. Relative humidity: no more than 80% R H
7. Overload capacity: 1.2 ~ 1.5 times of full scale
8. Dimensions :260*240*260m m
9. Weight: 13 kg
10. Power consumption :100 ~ 300V A
