وصف

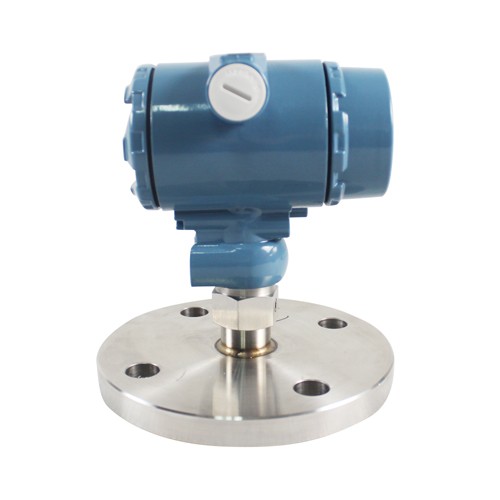

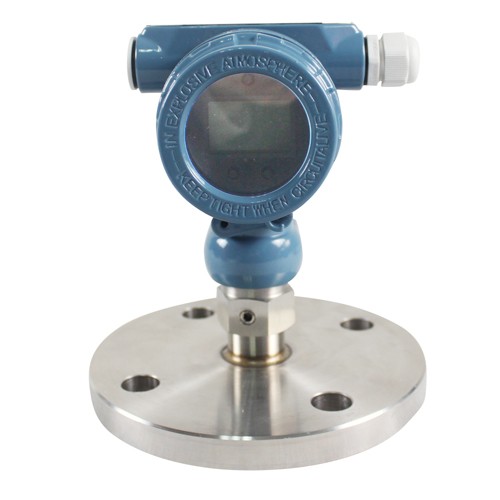

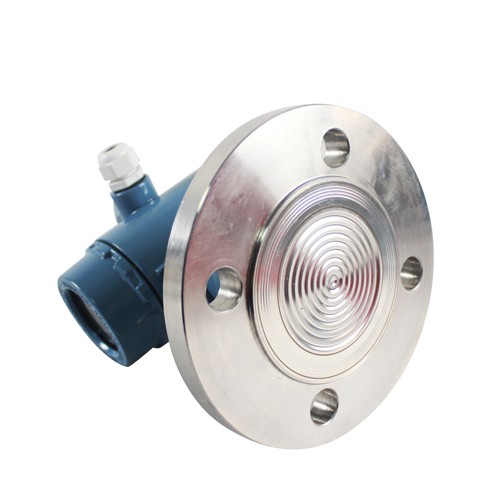

Flange mounted diaphragm pressure transmitter alktg208mf has the functions of on-site display, data processing, zero point, full scale software adjustment, 4 ~ 20mA output and communication. It has the advantages of small volume, high precision, light weight and wide range coverage. The product works in two-wire mode and can directly replace the analog two-wire 4 ~ 20mADC output transmitter. It is suitable for industrial process control, petroleum, chemical industry, metallurgy and other industries
The performance parameters
Range: -0.1... 0 ~ 0.01... 60Mpa
Pressure type: surface pressure, absolute pressure
Power supply: 24VDC
Output signal: 4 ~ 20mA
Operating temperature: -40 ~ 85℃
Storage temperature: -40 ~ 125℃
Zero point temperature drift: ±0.15%FS
Sensitivity Temperature Drift: ±0.15%FS
Fineness: level 0.5
Response time: ≤1ms (up to 90% FS)
Material quality: shell of low copper aluminum alloy; Internal sensor 316L
Medium compatibility: all kinds of liquid or gas compatible with stainless steel
Fallin: DN25 DN32 DN50 DN65 (according to on-site requirements)
Installation method
1. Choose a place that is easy to operate and maintain for installation.
2 should be as far away from the vibration source installation
