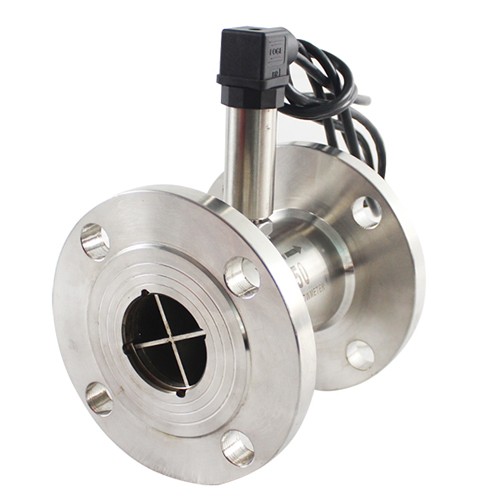

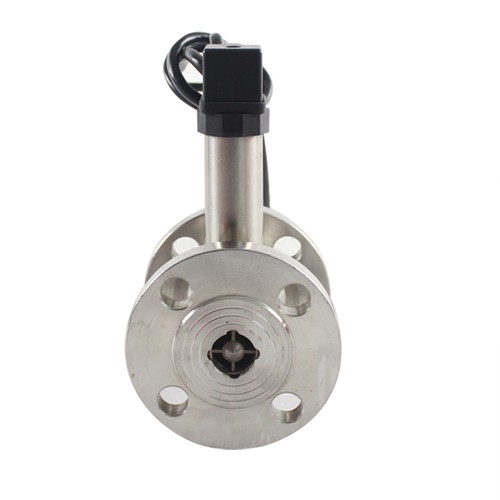

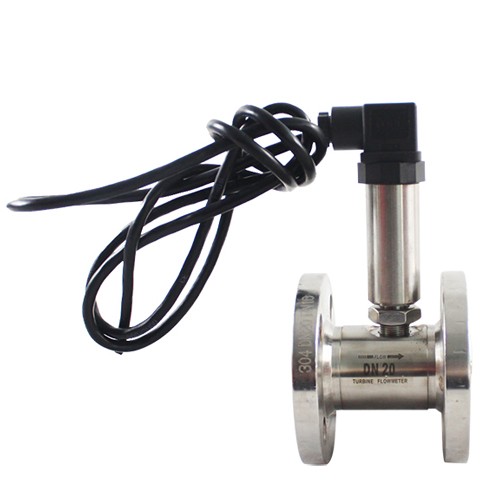

Flange turbine flowmeter lwgya-50

وصف

Based on the principle of torque balance, the flange turbine flowmeter lwgya-50 belongs to the velocity flow meter. The sensor has the characteristics of simple structure, light weight, high precision, good repeatability, sensitive response, easy installation, maintenance and use. It is widely used in petroleum, chemical industry, metallurgy, water supply, paper making and other industries. It is a flow measurement and energy-saving instrument

The sensor and display instrument are used together. It is suitable for measuring the liquid in the closed pipe, which has no corrosive effect with stainless steel 1Cr18Ni9Ti, 2Cr13, corundum Al2O3 and cemented carbide, and has no fiber, particle and other impurities. If it is matched with the display instrument with special function, it can also carry out quantitative control, over quantity reminder, etc.
The sensor is suitable for the medium whose viscosity is less than 5 × 10-6m2 / s at the working temperature. For the liquid whose viscosity is more than 5 × 10-6m2 / s, the sensor should be used after solid liquid calibration.

model selection

Instrument type		Turbine flow sensor
Function type	A	No display, ordinary three-wire pulse
	P	Non-display, explosion-proof three-wire pulse
	N	No display, two-wire 4-20MA output
	B	LCD, battery power and DC24V dual power supply, support three-wire pulse output
	C	LCD, DC24V power supply, two-wire 4-20MA output, support three-wire pulse output (optional)
	R	LCD, RS485 communication, lithium battery and DC24V dual power supply, support three-wire pulse output
	H	LCD, hart communication, lithium battery and DC24V dual power supply, support three-wire pulse output
Measuring diameter	4	Path: 4 mm, flow range: 0. 04-0.25m3/h
	6	Path: 6mm, flow range: 0.1-0.6m3/h
	10	Path: 10 mm, flow range: 0. 2-1.2m3/h
	15	Path: 15mm, flow range: 0.6-6m3/h
	20	Path: 20 mm, flow range: 0. 7-7m3/h
	25	Path: 25mm, flow range: 1-10m3/h
	32	Path: 32 mm, flow range: 1. 5-15m3/h
	40	Path: 40mm, flow range: 2-20m3/h
	50	Path: 50mm, flow range: 4-40m3/h
	65	Path: 65mm, flow range: 7-70m3/h
	80	Path: 80mm, flow range: 10-100m3/h
	100	Path: 100mm, flow range: 20-200m3/h
	125	Path: 125mm, flow range: 25-250m3/h
	150	Path: 150mm, flow range: 30-300m3/h
	200	Path: 200mm, flow range: 80-800m3/h
Meter form	Z	One body type	Conventional form
Meter form	F	Fractal type	Suitable for types B, C, R, H
Interface mode	L1	Pipe thread	Suitable for path DN4-50
	L2	Flange	Suitable for all measured paths
	L3	Clamp hoop	Suitable for DN15-50,other specifications can be customized
	L4	Plug-in type	Suitable for measuring pipes with diameters above DN100
	L5	Clamping type	Suitable for DN15-50, other specifications can be customized
Body material	D1	304	Pipe body and flange (or hoop joint)
Body material	D2	316	Pipe body and flange (or hoop joint)
Movement material	E1	2Cr13	Impeller
Movement material	E2	Dual phase steel	Impeller and guide parts
Pressure resistance grade	Y1	1	Suitable for clamp connection form
	Y2	1.6	For DN15-100
	Y3	2.5	Suitable for 4-6-10 thread connection
	Y4	High pressure customization	Customization
Accuracy class	1		Standard precision
Accuracy class	0.5		High precision
