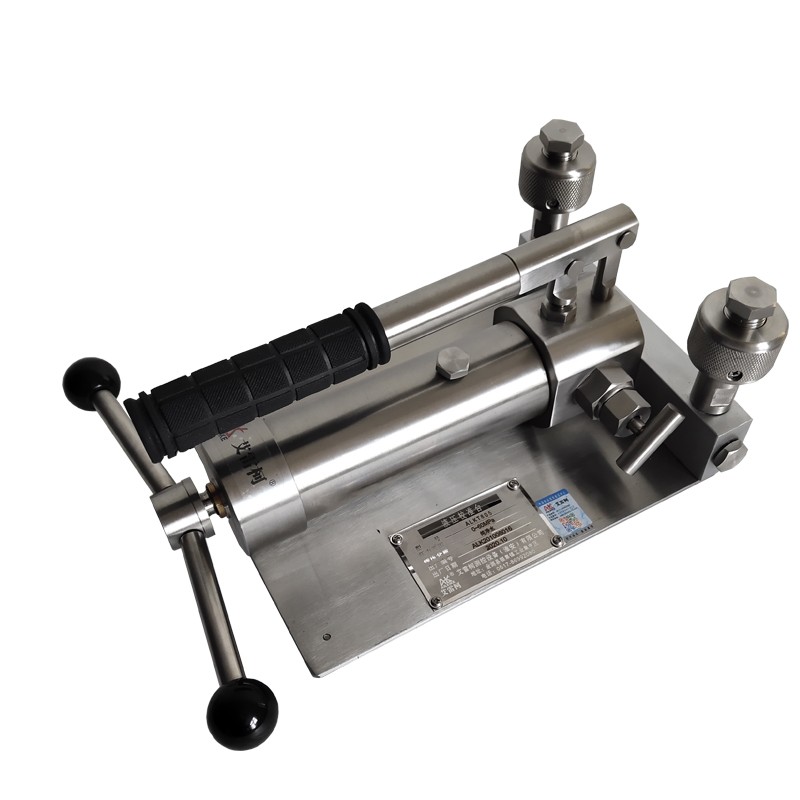

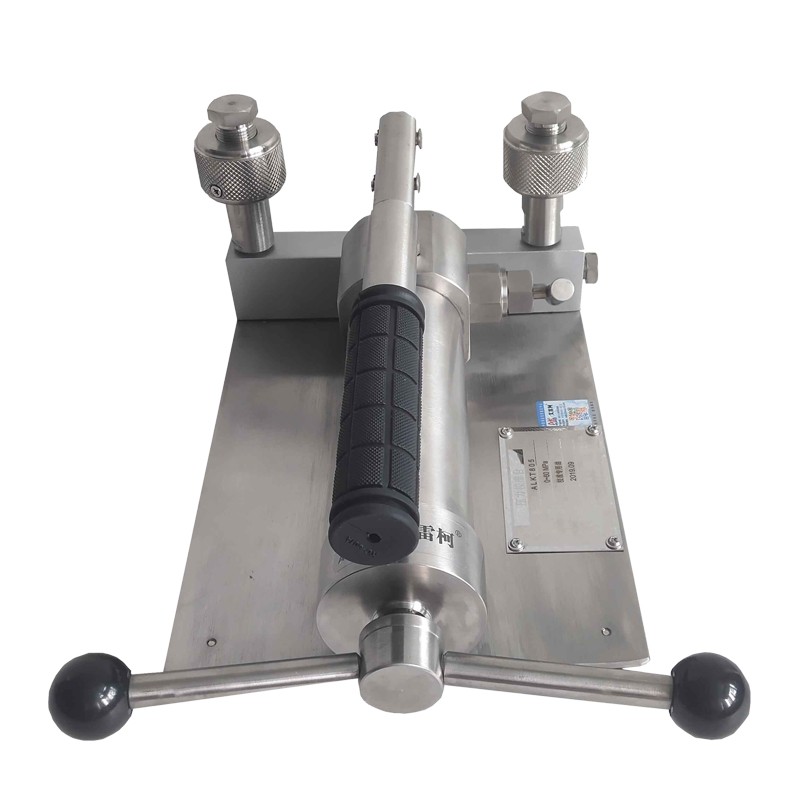

ALKT805 hydraulic calibration table is an important auxiliary equipment in pressure instrument testing work. It is used with pressure standard to complete pressure instrument calibration and testing. High-quality hydraulic pump is selected as the pressure generating part of the calibration table, assisted by delicate design, fast interface and pressure-stabilizing Valve. With the advantages of simple operation, reasonable structure and good sealing performance, wide range pressure generating system can be widely used in metrology, scientific research, industrial and mining enterprises and instrument manufacturing industries.
Pressure range: 0 ~ 60MPa
Output port: 2
Thread specification: M20 * 1.5 (as required)
Overall dimension: 280 × 190 × 160mm (L × w × h)
Weight: 8.5Kg
Medium: purified water / hydraulic oil
