Product Features
1、Adopting a balanced valve core, the unbalanced force is small, allowing for a large pressure difference and stable operation.
2、The large guiding surface of the valve core can improve the oscillation caused by eddy currents and impacts, and reduce damage.
3、Reduce noise by about 10dB compared to ordinary double seat regulating valves.
4、The structure is simple and easy to assemble, disassemble, and maintain.

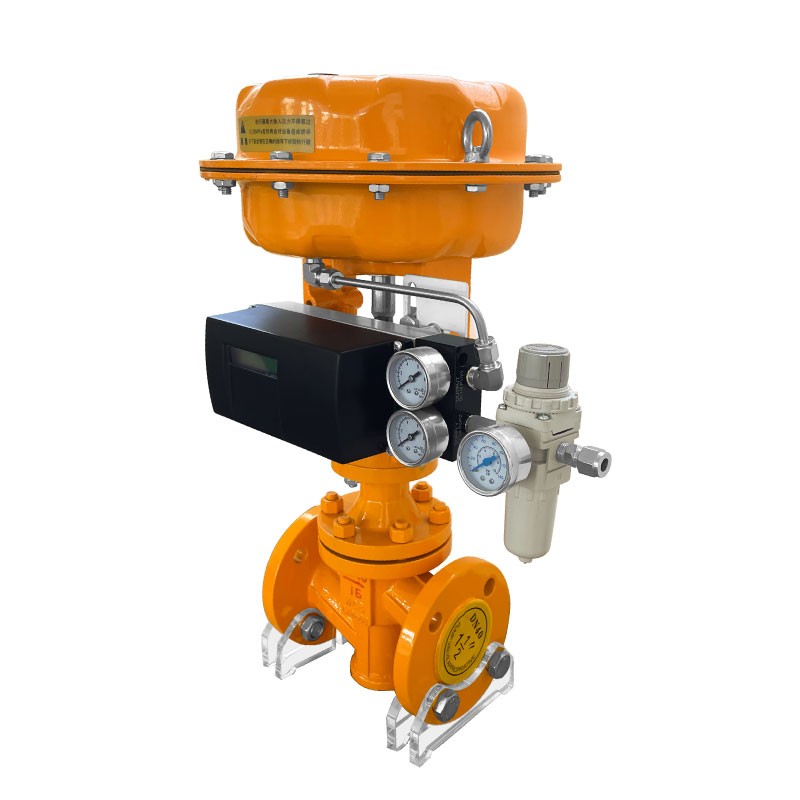

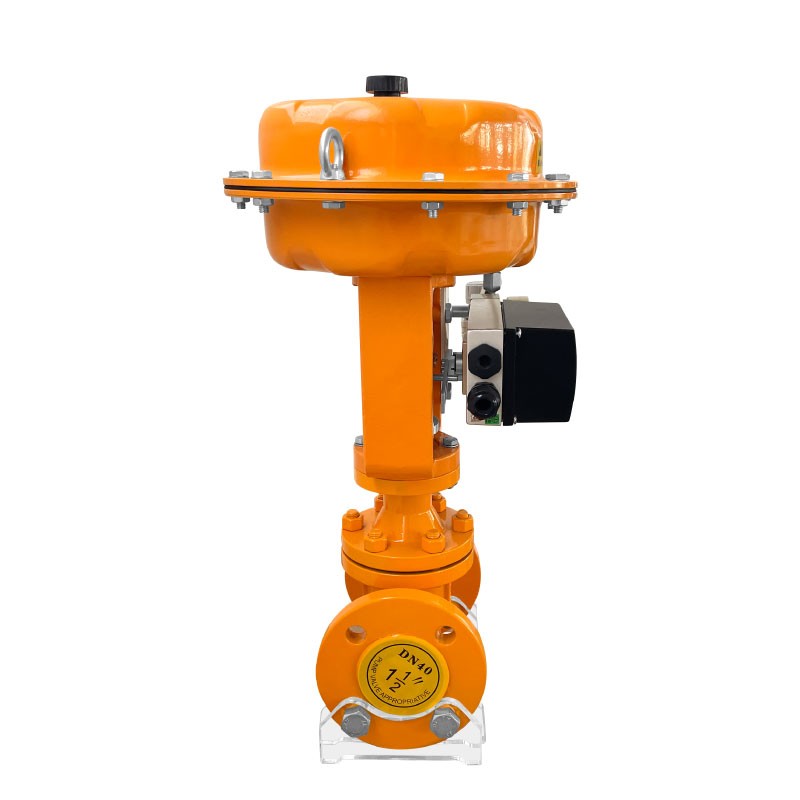

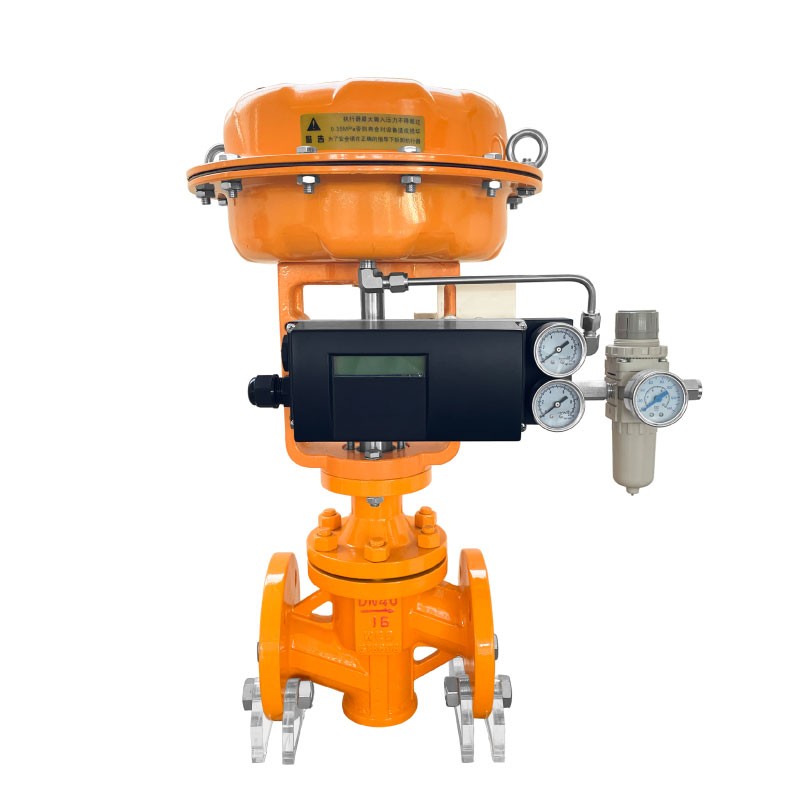

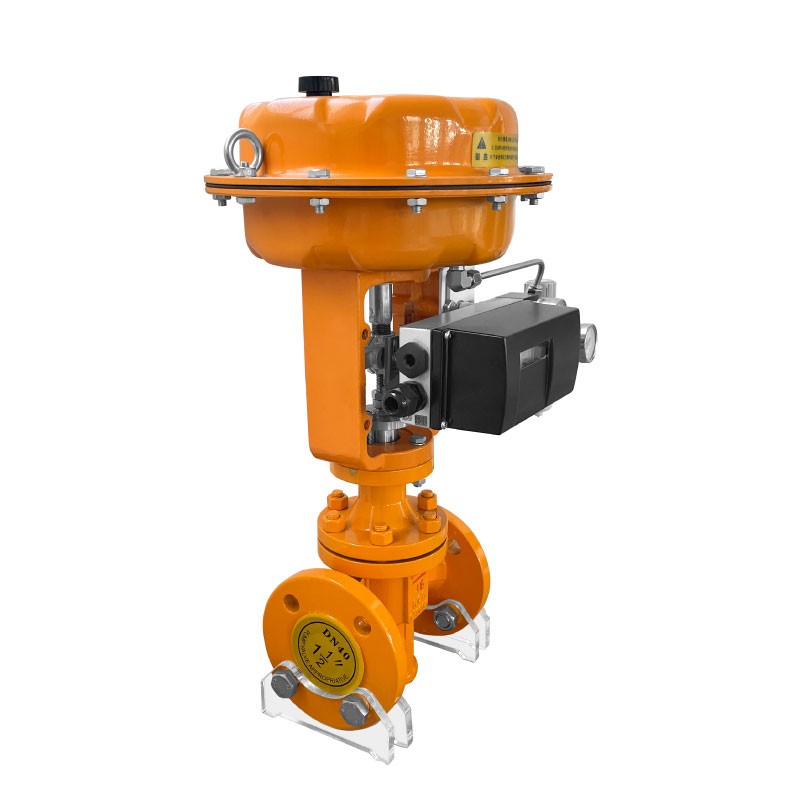

Product Display
01
02
03
Flange connection
Pneumatic thin film actuator
Precision cast thickened valve body
Made of high-quality
materials, it has high
mechanical strength and ductility,
High strength, high temperature resistance, not easy to rust
Natural craftsmanship, precision investment casting,
Anti sun and anticorrosion, resistant to deformation
The valve body is made of stainless steel material,
Corrosion and rust resistance, long service life
Function Display
01
02
03
04
05
Pneumatic thin
film actuator
Filter
Stainless steel
valve body
Positioner
Stainless
steel fasteners
Product Information
Customized processing
Yes
Product name
Pneumatic sleeve regulating valve
Nominal diameter
DN40~DN200
nominal pressure
1.6~6.4MPa
Body material
Cast steel/stainless steel
Drive mode
Pneumatic
Temperature
-30℃~70℃
Connection method
Flange connection
Action form
Gas on, gas off
Traffic characteristics
Equal percentage and linearity
Cover form
Bolt compression type
Applicable Medium
Air, water, oil, etc
Packing material
Polytetrafluoroethylene packing, Asbestos woven packing
