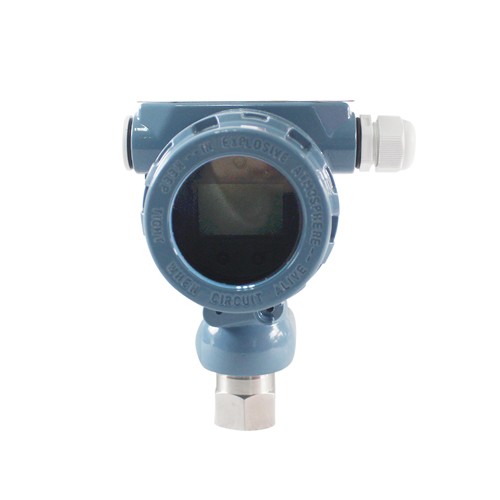

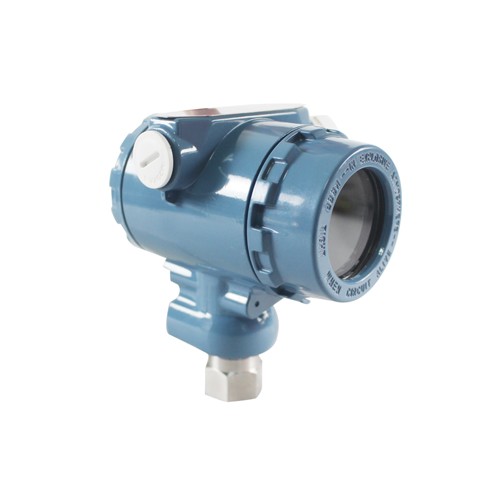

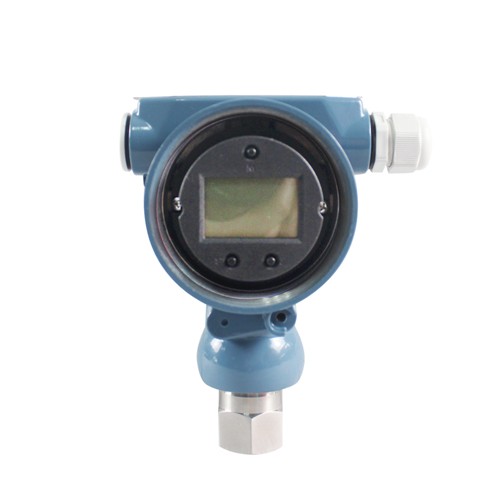

Pressure transmitter alkgpe09

وصف

The pressure transmitter alkgpe09 has the functions of on-site display, data processing, zero point, full scale software adjustment, 4 ~ 20mA output and communication. It has the advantages of small volume, high precision, light weight and wide range coverage. The product works in a two-wire system and can directly replace the analog two-wire 4 ~ 20mADC output transmitter. It is suitable for industrial process control, petroleum, chemical industry, metallurgy and other industries.

The performance parameters

Range: -0.1... 0 ~ 0.01... 60Mpa

Power supply: 24VDC

Output signal: 4~20mA

Operating temperature: -40 ~ 85℃

Storage temperature: -40 ~ 125℃

Zero point temperature drift: ±0.15%FS

Sensitivity Temperature Drift: ±0.15%FS

Fineness: level 0.5

Response time: ≤1ms (up to 90% FS)

Material quality: shell of low copper aluminum alloy; Internal sensor 316L

Medium compatibility: all kinds of liquid or gas compatible with stainless steel

Installation method

1. Choose a place that is easy to operate and maintain for installation.

2 should be as far away from the vibration source installation.

3. It should be installed as far away from the heat source as possible.

4. It is directly installed on the pipeline or equipment, and is clamped at the six sides of the transmitter with a wrench during installation.
