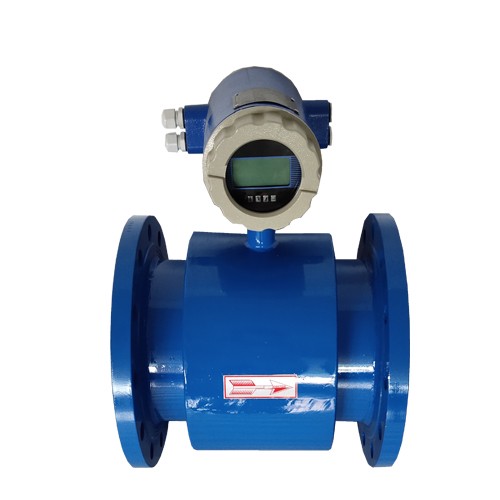

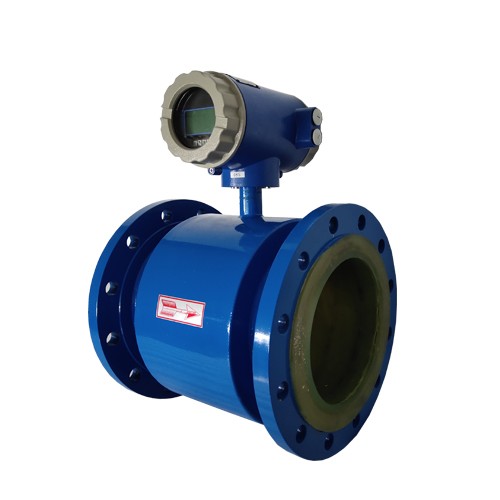

Large diameter pipe flow meter DN200

وصف

Large diameter pipe flow meter DN200 for concentrated sulfuric acid adopts power consumption microprocessor with high integration, fast operation speed and high calculation accuracy. Frequency programmable low-frequency rectangular wave excitation improves the stability of flow measurement, low power loss; digital processing, strong anti-interference ability, reliable measurement; easy to use, simple operation, high-definition backlight and wide temperature LCD display.

Provide isolated or non isolated RS485 / RS232C digital communication interface, and support modbus, PROFIBUS-DP, Hart and other fieldbus communication modes. Using constant current source to measure the fluid resistance, the internal resistance of electrode signal can be accurately measured in the case of long line transmission. To determine whether the fluid in the sensor is empty or not, it can identify abnormal phenomena such as electrode pollution and coverage, and provide users with fault handling information such as cleaning electrode.

Technical parameters

Precision level:±0.5% R (5/1000)

Nominal pressure:1.6MP (DN10-DN250)

1.0MPA (DN300-DN1000)

0.6MPA (DN1200-DN2000)

(other specifications can be customized)

Installation mode: flange installation(default)

Flange clamping(custom) clamp installation (custom)

Electrode type:316L electrode (default)

HB/HC alloy electrode

Titanium electrode tantalum Electrode; tungsten carbide electrode; platinum electrode lining material: neoprene rubber(CR); polytetrafluorine (F4)

Polyurethane rubber (PU); polyperfluoroethylethene (F46)

Range ratio: 10:1

Working environment: sensors:-25-150 ℃ converter:-10 ≤ 60 ℃

Fluid requirements: conductive media(conductivity ≥ 5US/CM liquid)

Repetitive error

Of the measured value±0.1%.

Type selection

Model number										Description
LDCK-	□	□	-□	□	□	□	□	□	-□
Path										200-2200mm
Lining material		J								teflon
		L								Neoprene rubber
		Z								Special order
Electrode materia			M							316L
			H							HC
			T							Ta
			V							Ti
			P							Pt
Nominal pressure				40						Nominal diameter：10～50，4.OMPa
				16						Nominal diameter： 65～125，1.6MPa
				10						Nominal diameter： 150～1000，1.0MPa
				6						Nominal diameter：1200, 0.6MPa
Grounding ring material					M					316L
					H					Hc
					T					Ta
					V					Ti
					P					Pt
Output signal						A				4-20mA
						B				0-10mA
						C				Pulse output
Flow range										M3/h
Display										TBS (display: instantaneous, cumulative)
