Product Features
1、Sanitary grade pneumatic butterfly valves are available in double acting and single acting (spring reset), with gear rack transmission.
2、Butterfly valve actuator gear type dual piston, with large output torque and small volume; The cylinder is made of aluminum material, which is lightweight and aesthetically pleasing.
3、Manual operation can be installed at the top and bottom. The rack and pinion connection can adjust the opening angle and rated flow rate.
4、Sanitary grade butterfly valve actuators can be equipped with live signal feedback indicators and accessories to achieve automated operation. The adjustable screws at both ends provide a ± 4 ° adjustable range for standard products between 0 ° and 90 °. Ensure synchronization accuracy with the valve.

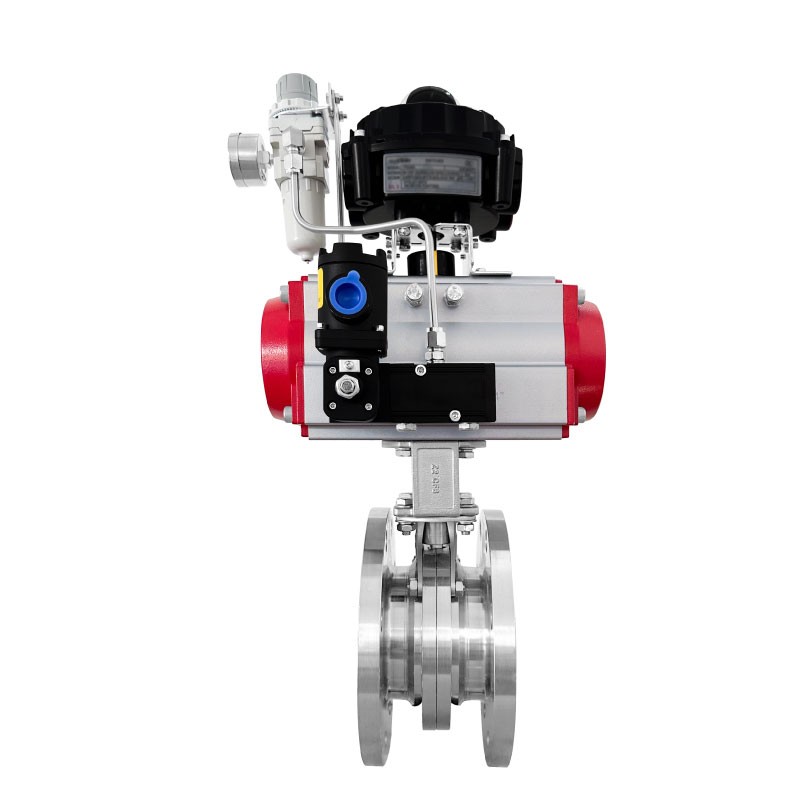

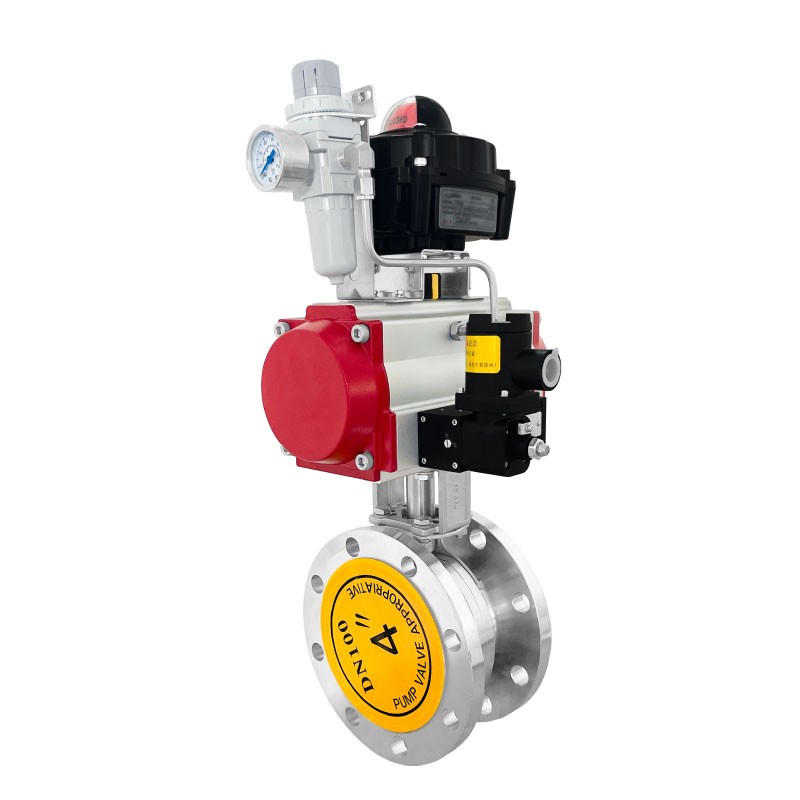

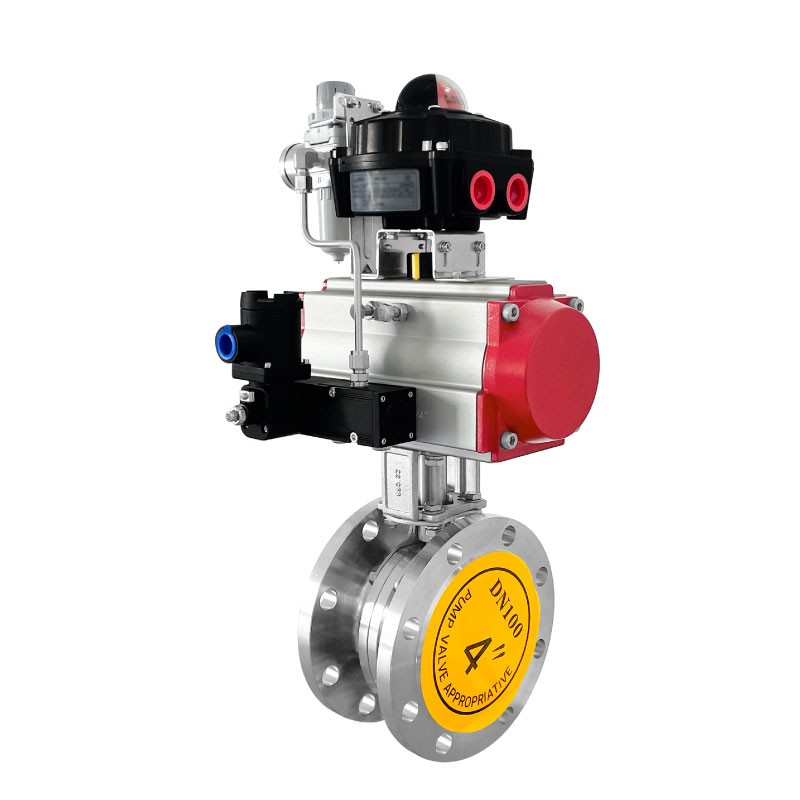

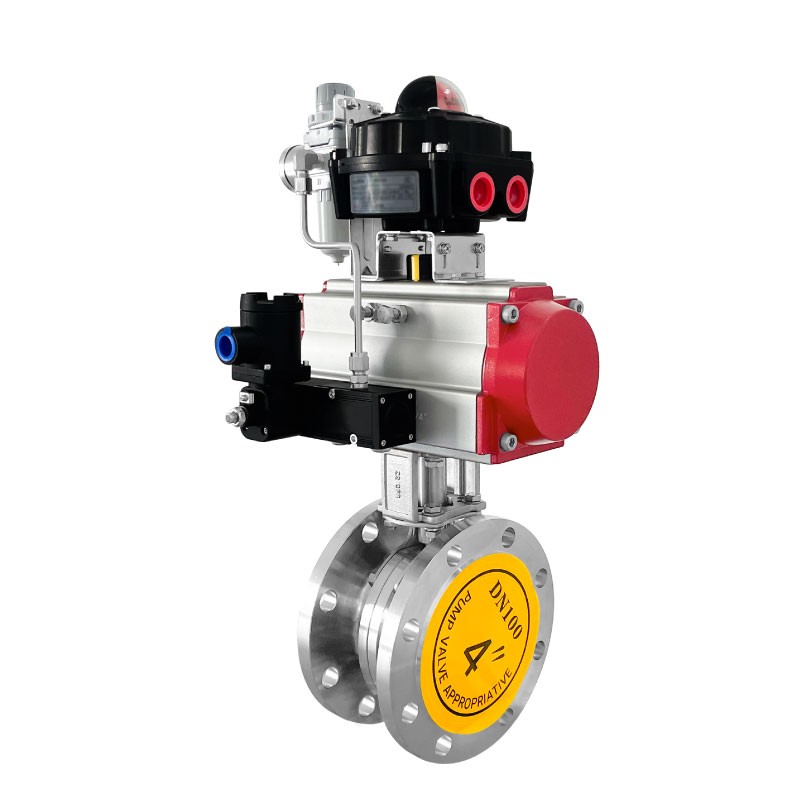

Product Display
01
02
03
Flange connection
Pneumatic actuator
Precision cast thickened valve body
Stainless steel flange, earthquake resistant and stable, with high
mechanical strength and ductility,
High strength, high
temperature resistance, not easy to rust
Precision investment
casting,
Three sprays and three baked, sun resistant and corrosion-resistant,
resistance without
deformation
The valve body is made of stainless steel material,corrosion and rust
resistance, long service life
Function Display
01
02
03
04
05
06
07
Supporting instrument
Explosion proof
reply device
Pneumatic
actuator
Flange
connection
Filter
Explosion-proof
Solenoid valves
Precision cast
thickened
valve body
Product Information
Customized processing
Yes
Product name
Sanitary pneumatic butterfly valve
Nominal pressure
1.6MPa
Nominal diameter
DN15~DN300
Body material
Cast steel/stainless steel
Valve plate material
Cast steel/stainless steel
Drive mode
Pneumatic
Body material
Cast steel/stainless steel
Connection method
Flange connection
Temperature
-20℃~150℃
Applicable Medium
Gas on, gas off
