وصف

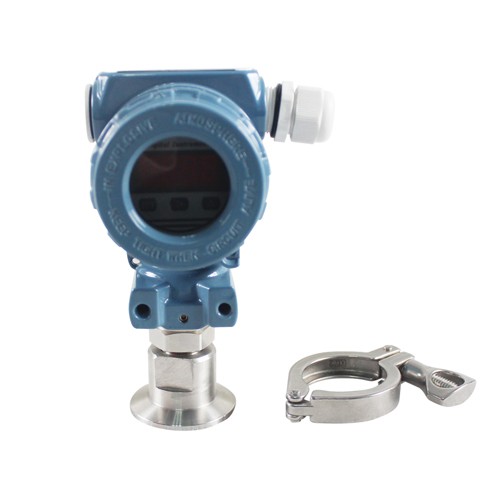

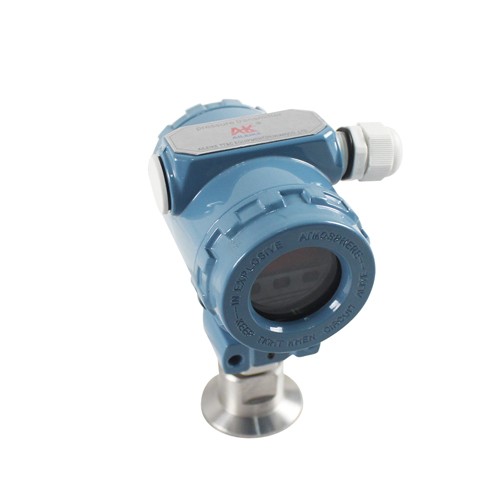

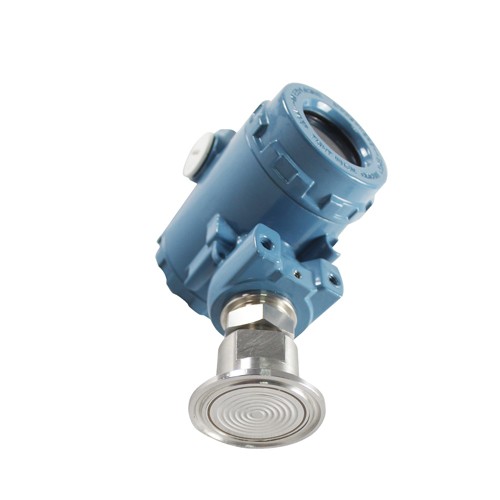

Sanitary pressure transmitter alktg2088mc has the functions of on-site display, data processing, zero point, full scale software adjustment, 4 ~ 20mA output and communication. It has the advantages of small volume, high precision, light weight and wide range coverage. The product works in two-wire mode and can directly replace the analog two-wire 4 ~ 20mADC output transmitter. It is suitable for industrial process control, petroleum, chemical industry, metallurgy and other industries.
The performance parameters
Range: -0.1... 0 ~ 0.01... 60Mpa
Installation: 50.5mm clamp connection
Power supply: 24VDC
Output signal: 4 ~ 20mA
Operating temperature: -40 ~ 85℃
Storage temperature: -40 ~ 125℃
Zero point temperature drift: ±0.15%FS
Sensitivity Temperature Drift: ±0.15%FS
Fineness: level 0.5
Response time: ≤1ms (up to 90% FS)
Material quality: shell of low copper aluminum alloy; Internal sensor 316L
Medium compatibility: all kinds of liquid or gas compatible with stainless steel
Installation method
1. Choose a place that is easy to operate and maintain for installation.
2 should be as far away from the vibration source installation.
3. It should be installed as far away from the heat source as possible.
4. Install directly on pipes or equipment, and clamp with wrench during installation
