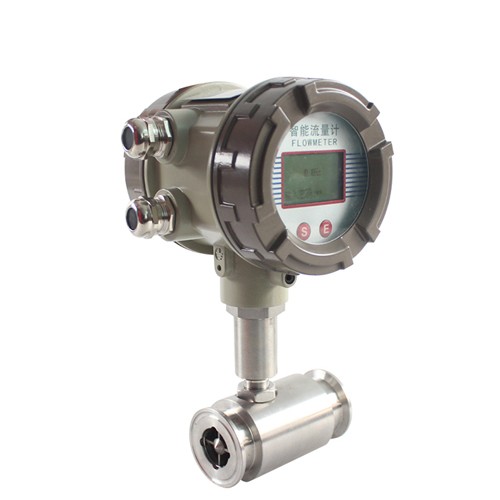

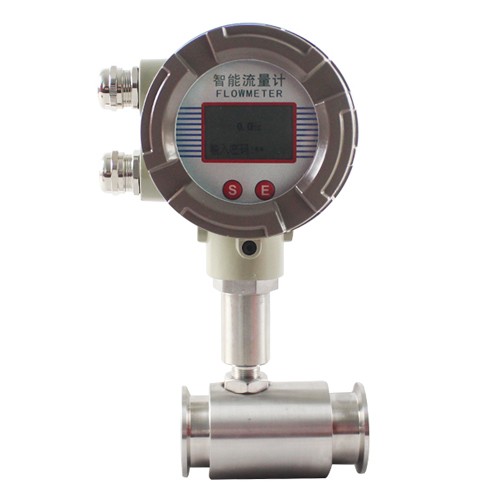

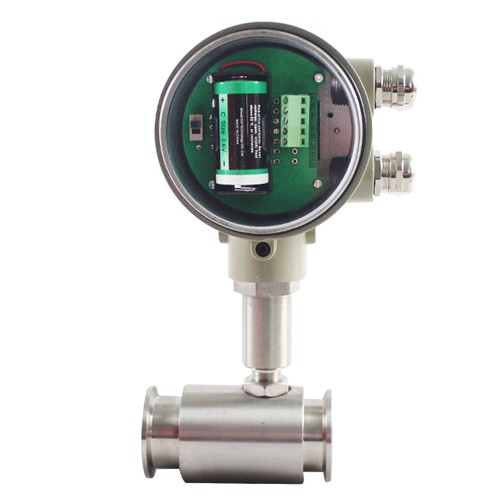

The sanitary turbine flowmeter lwgyb-l3 is based on the principle of torque balance and belongs to the speed type flow meter. The sensor has the characteristics of simple structure, light weight, high precision, good repeatability, sensitive response, easy installation, maintenance and use. It is widely used in petroleum, chemical industry, metallurgy, water supply, paper making and other industries. It is a flow measurement and energy-saving instrument
The sensor and display instrument are used together. It is suitable for measuring the liquid in the closed pipe, which has no corrosive effect with stainless steel 1Cr18Ni9Ti, 2Cr13, corundum Al2O3 and cemented carbide, and has no fiber, particle and other impurities. If it is matched with the display instrument with special function, it can also carry out quantitative control, over quantity reminder, etc.
The sensor is suitable for the medium whose viscosity is less than 5 × 10-6m2 / s at the working temperature. For the liquid whose viscosity is more than 5 × 10-6m2 / s, the sensor should be used after solid liquid calibration.
model selection
|
Instrument type |
|
Turbine flow sensor |
|
|
Function type |
A |
No display, ordinary three-wire pulse |
|
|
|
P |
Non-display, explosion-proof three-wire pulse |
|
|
|
N |
No display, two-wire 4-20MA output |
|
|
|
B |
LCD, battery power and DC24V dual power supply, support three-wire pulse output |
|
|
|
C |
LCD, DC24V power supply, two-wire 4-20MA output, support three-wire pulse output (optional) |
|
|
|
R |
LCD, RS485 communication, lithium battery and DC24V dual power supply, support three-wire pulse output |
|
|
|
H |
LCD, hart communication, lithium battery and DC24V dual power supply, support three-wire pulse output |
|
|
Measuring diameter |
4 |
Path: 4 mm, flow range: 0. 04-0.25m3/h |
|
|
|
6 |
Path: 6mm, flow range: 0.1-0.6m3/h |
|
|
|
10 |
Path: 10 mm, flow range: 0. 2-1.2m3/h |
|
|
|
15 |
Path: 15mm, flow range: 0.6-6m3/h |
|
|
|
20 |
Path: 20 mm, flow range: 0. 7-7m3/h |
|
|
|
25 |
Path: 25mm, flow range: 1-10m3/h |
|
|
|
32 |
Path: 32 mm, flow range: 1. 5-15m3/h |
|
|
|
40 |
Path: 40mm, flow range: 2-20m3/h |
|
|
|
50 |
Path: 50mm, flow range: 4-40m3/h |
|
|
|
65 |
Path: 65mm, flow range: 7-70m3/h |
|
|
|
80 |
Path: 80mm, flow range: 10-100m3/h |
|
|
|
100 |
Path: 100mm, flow range: 20-200m3/h |
|
|
|
125 |
Path: 125mm, flow range: 25-250m3/h |
|
|
|
150 |
Path: 150mm, flow range: 30-300m3/h |
|
|
|
200 |
Path: 200mm, flow range: 80-800m3/h |
|
|
Meter form |
Z |
One body type |
Conventional form |
|
|
F |
Fractal type |
|
