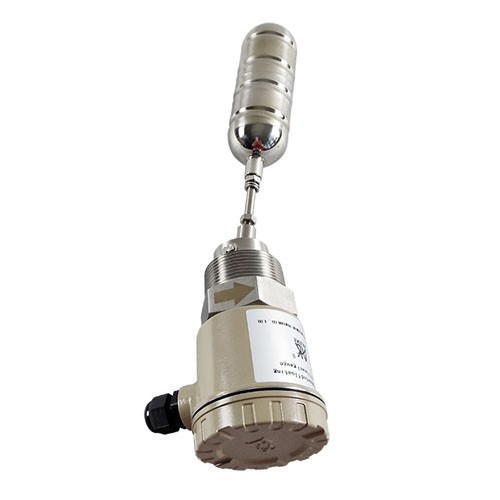

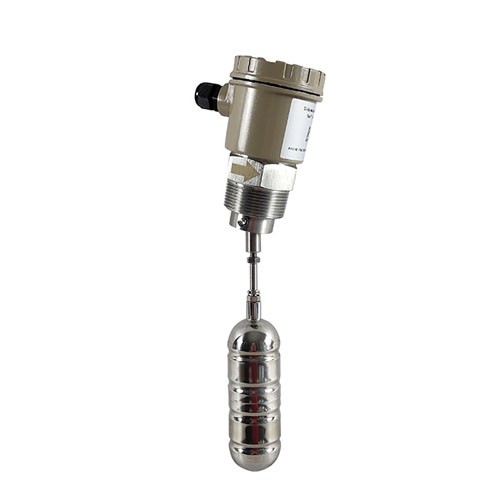

Side mounted float level switch alklf

وصف

The side mounted float level switch alklf is easy to use, simple in structure, safe and reliable, long in service life, small in size, fast in speed, and durable. The contact action life can reach 1 million times. Suitable for petrochemical, generator equipment, food industry, water treatment, electrical and other industries.

The working principle of

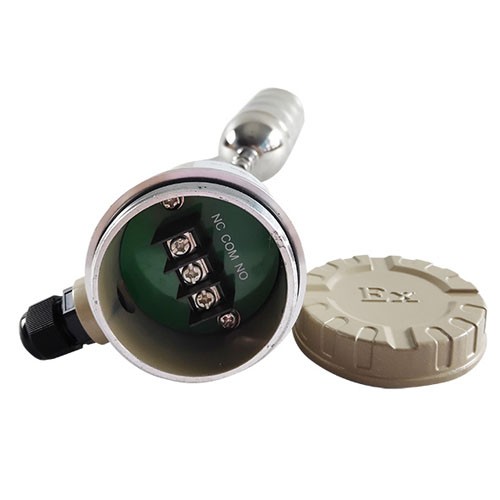

When the floating ball floats up and down under the action of liquid buoyancy, the interaction between the reed switch (or micro
switch) in the junction box and the magnet at the arm end causes the reed switch (or micro switch) to act.At the same time, and
output ON (ON) off (0FF) signal.

Product features
It can be installed horizontally on the side wall of the barrel and vertically on the top of the barrel:
Simple structure, stable and reliable performance, easy installation:
The control part is completely isolated from the liquid medium, which can be used in high temperature and high pressure
environment:
Multiple materials and connection modes can meet different environmental requirements;
Not susceptible to viscous liquids.

Technical parameters
Side screw type top screw type
1. Connection box: ABS aluminum 1. Connection box: ABS aluminum
2, output contact: 5A/220VAC 2, output contact: 5A/220VAC
3, contact form: SMDT (IC) 3, contact form: SPDT (IC)
4, Operating pressure: 15Bar 4, Operating pressure: 30Bar
5, operating temperature: -20 -- 200℃ 5, operating temperature: -20 -- 120℃
6, the liquid material: SUS304/316 6, the liquid material: SUS304/316
7, applicable proportion: 0.65 7, applicable proportion: 0.55
