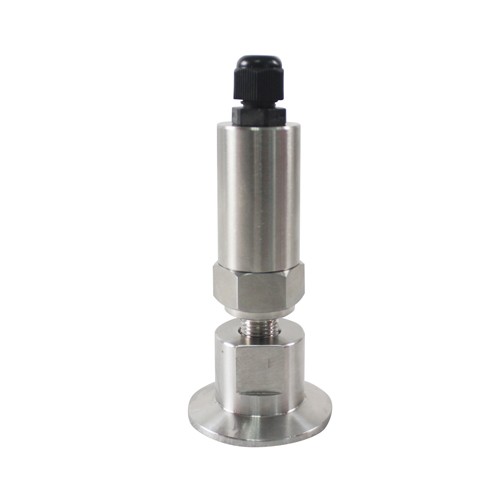

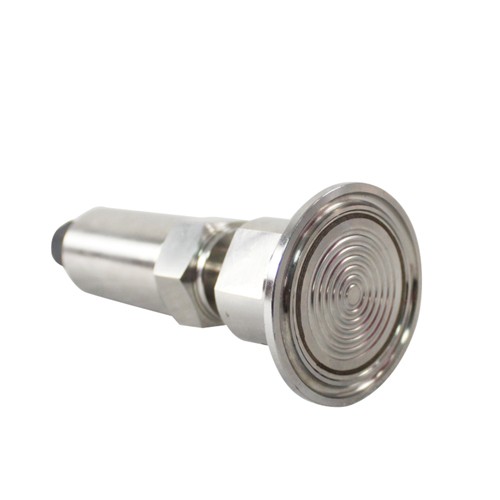

ealth Pressure Transmitter ALKPTS503MC

وصف

Health Pressure Transmitter ALKPTS503MC full range software adjustment, small size, high precision, light weight, wide range coverage, the product works in two-wire mode, suitable for industrial process control, petroleum, chemical industry, Metallurgy and other industries.

performance parameter
Range: - 0.1 0～0.01… 60Mpa
Installation method: 50.5mm clamp connection
Power supply: 24 VDC
Output signal: 4 ~ 20mA
Working temperature: - 40 ～ 85 ℃
Storage temperature: - 40 ~ 125 ℃
Zero temperature drift: ± 0.15% FS
Accuracy: grade 0.5
Response time: ≤ 1ms (up to 90% FS)
Material: low copper aluminum alloy shell; internal sensor 316L
