01 |
02 |
|
Stainless steel material High corrosion resistance and hardness Use more resistant |
Various measuring ranges Customizable as required |
1
2
3
4
5
6
7
8
Output 1
Connecting standard
tables or checklists
Connecting threads：M20X1.5
Output 2
Connecting standard
tables or checklists
Connecting threads：M20X1.5
Output 3
Connecting
standard tables or
checklists
Connecting threads：
M20X1.5
Switching
Valve
Press in to measure
positive pressure,
pull out to measure
negative pressure
Vent valve
Close when pressurizing
and vent upon
completion of
measurement
Fine tuning
Increase or decrease
pressure within
a small range

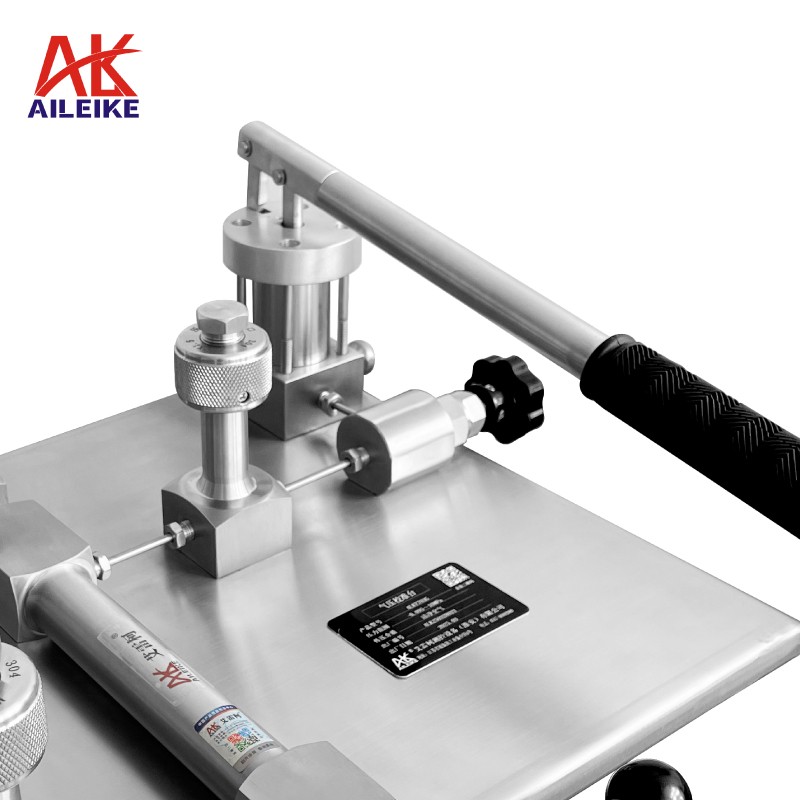

Pressure
application lever
Generate pressure by
operating to drive
the piston rod movement
Pressure
regulating valve
Locks when output
pressure is unstable
to maintain steady
pressure

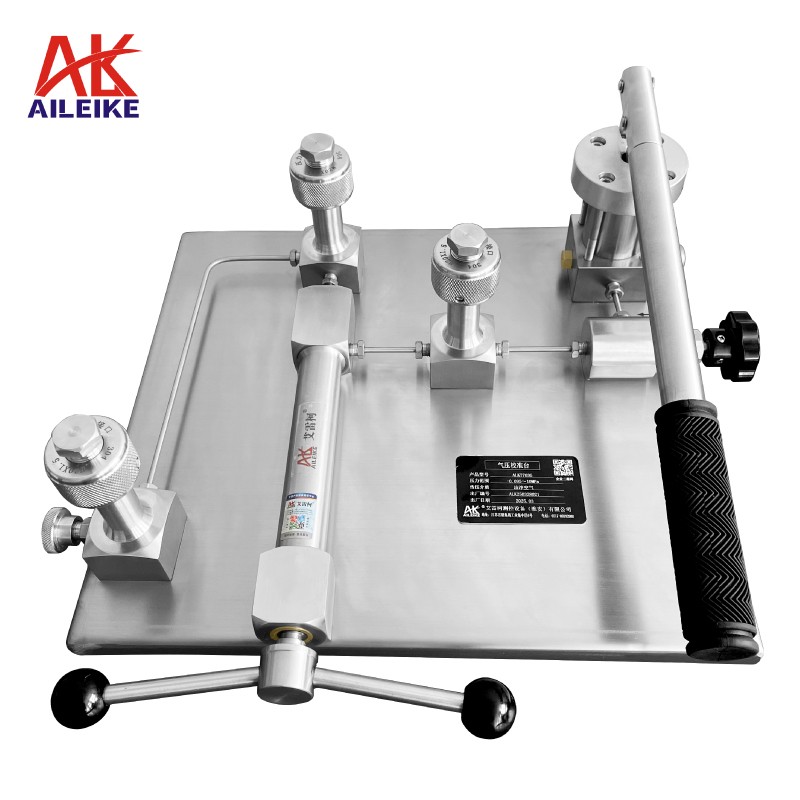

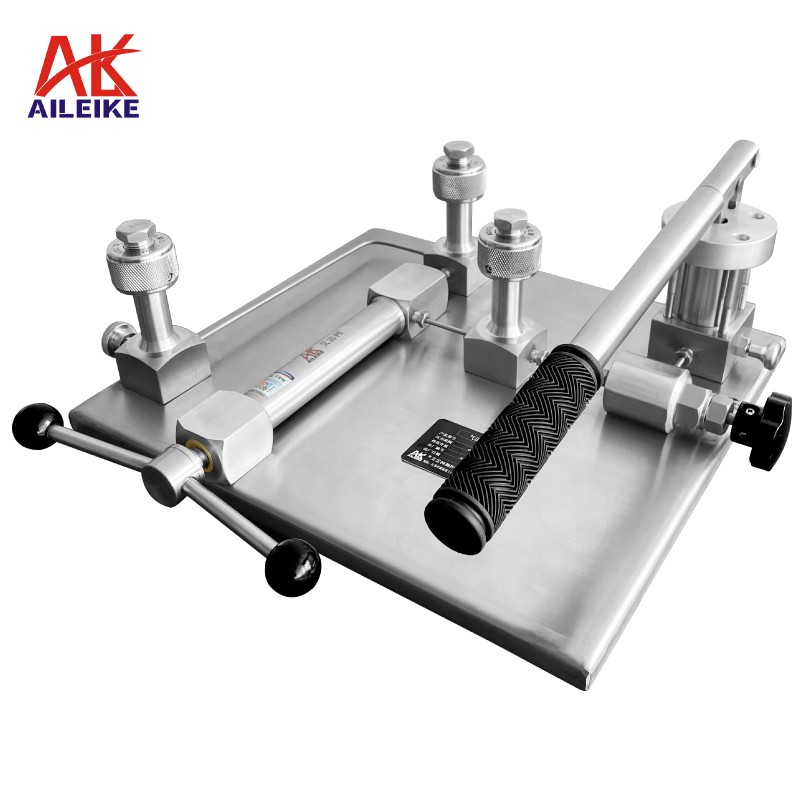

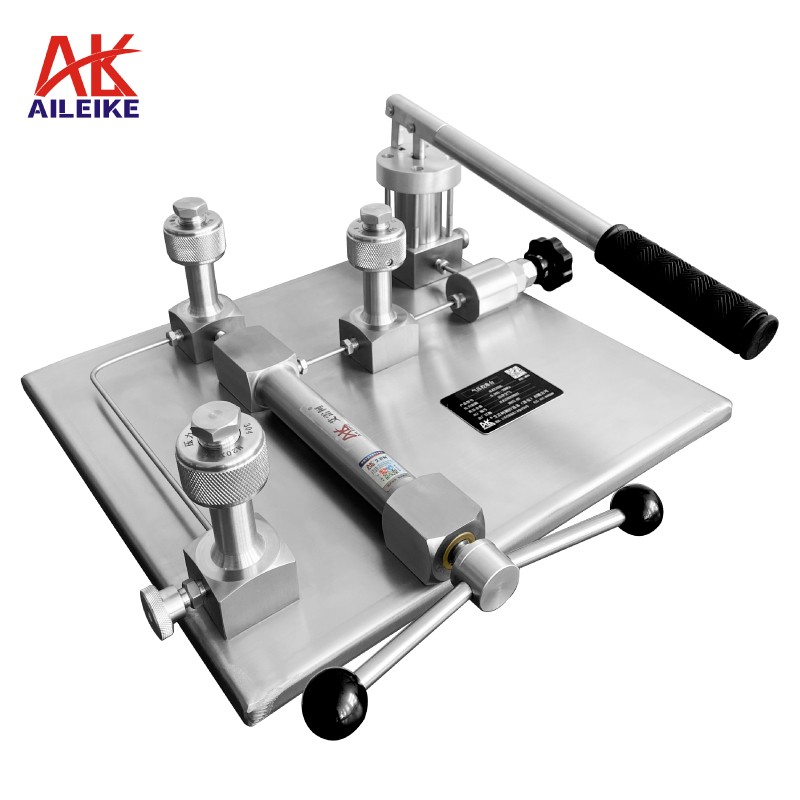

Product name
Pneumatic calibration table
Model
AILEIKE303GT
Measuring range
-0.95~100bar/-13~1450psi/-0.095~10MPa(Pressure selectable)
Adjust the fineness
Min 10pa
Output port
Three
Pressure connection
The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation.
Ambient temperature
-10~60℃
Measurement medium
Clean air
Pressurization method
Hand movement
Net Weight
Approximately 11.8kg
Product size
450×410×190mm
Packaged weight
Approximately 13.8kg(packaging material is cardboard box)
Product packaging size
530×490×270mm
Product standard configuration
Certificate of Conformity x1
Instruction Manual x1
Warranty Card x1
Sealing Rings x3
Plugs x3
