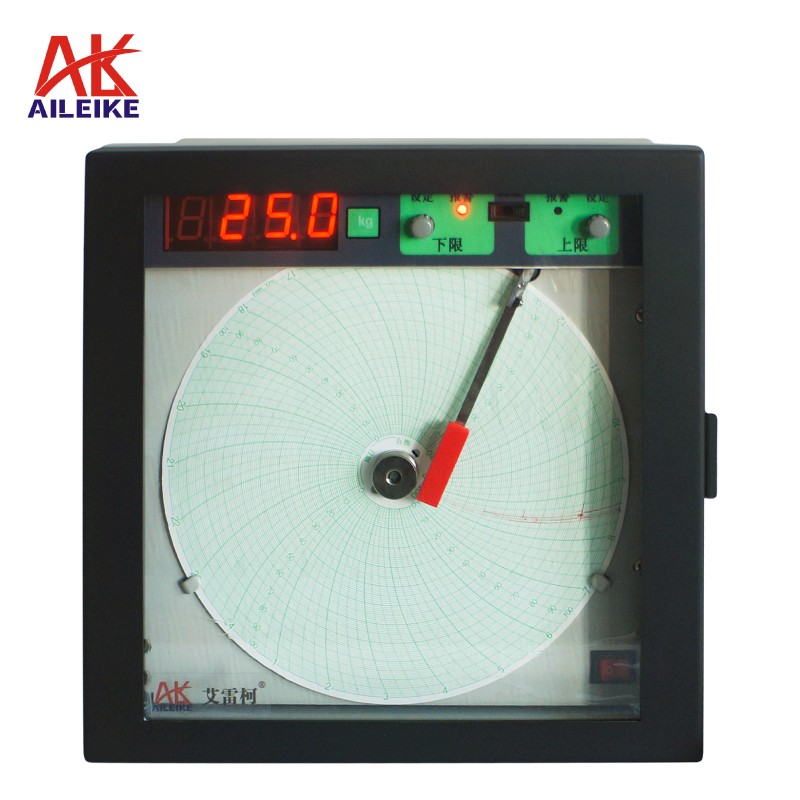

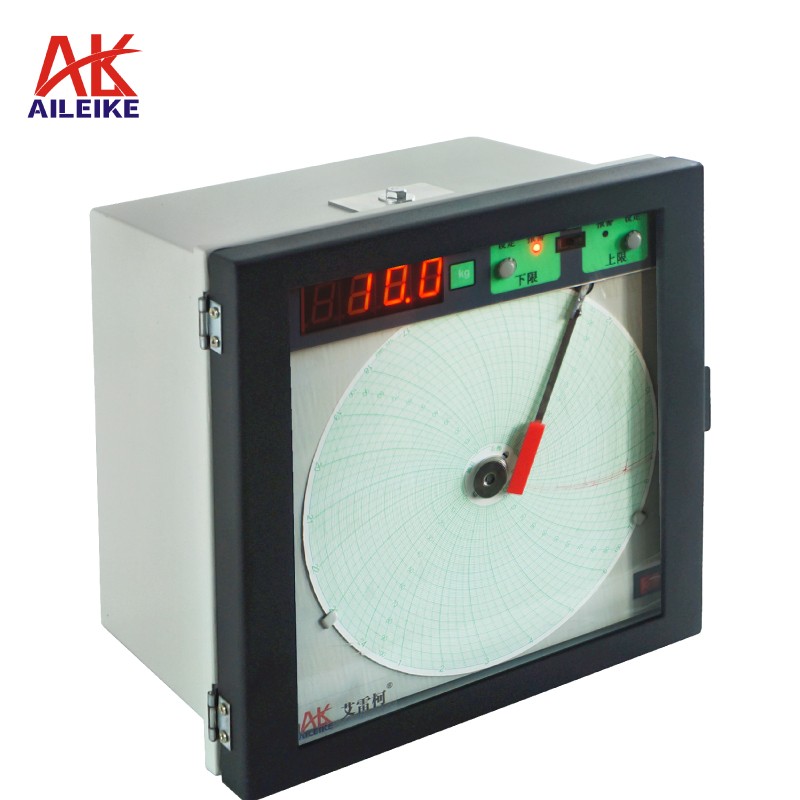

Digital Pressure Holding Recorder ALKYL101 Circular Disk Paper Sensor Instrument Test MPa Recording Paper KG Recording Paper bar Recording Paper

Product name

Digital display pressure retention recorder

Model

ALKYL101

Indication accuracy

±0.5%

Recording accuracy

±0.5%

Control accuracy

±0.5%

Indication insensitive area

±0.25%

Travel time

≤5S

Setting range

0~100%

Effective recording width

87.5mm

Power consumption

≤20VA

Record the paper feed speed

24 Hours/Day (default, others customizable)

Output contact capacity

AC 220V1A (AC non-inductive load)

DC 28V2A (pure resistance load)

Ambient temperature

0～50℃

Relative humidity

≤90%

Power supply

220V±10%  50Hz±5%

Power consumption

≤20VA

Net weight

Approximately 8kg

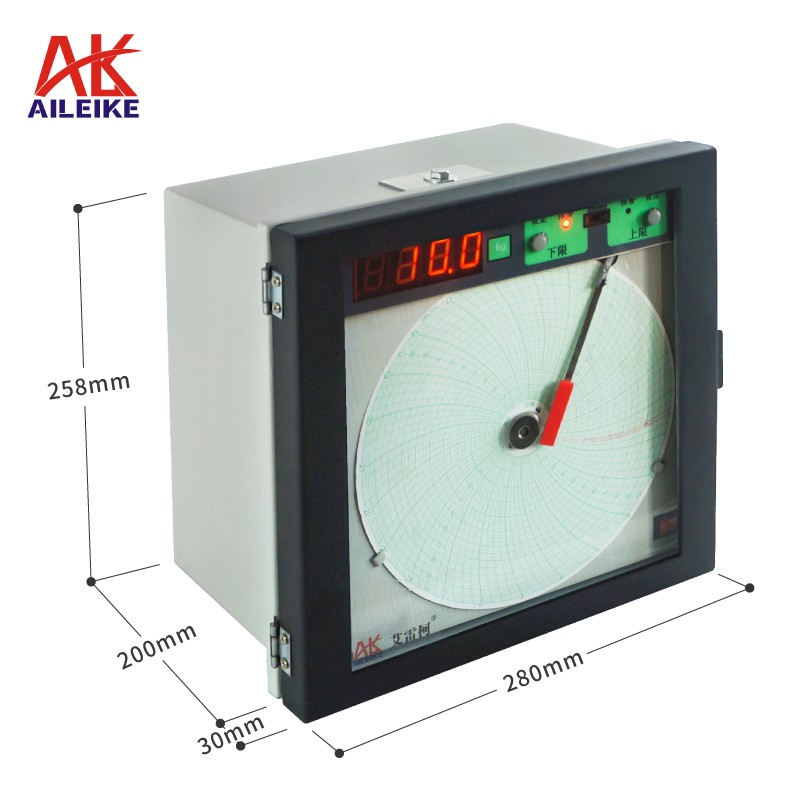

Product size

280×280×200mm

Hole size

260×260mm

Packaged weight

Approximately 10kg

Product packaging size

380×380×300mm

Attached accessories

Instruction × 1 Certificate × 1 Quality Assurance Card × 1

Fuse × 2 recording pen × 2 recording paper × 30

Pressure Range of Pressure Recording Paper

0~10 KG

0~20 KG

0~30 bar

0~0.6 MPa

0~1 MPa

0~2.5 MPa

0~4 MPa

0~6 MPa

0~20 MPa

0~25 MPa

0~40 MPa

0~60 MPa

Recorder paper feed speed

24 hours per lap (Default)

12 hours per lap

4 hours per lap

2 hours per lap

1 hour per lap
