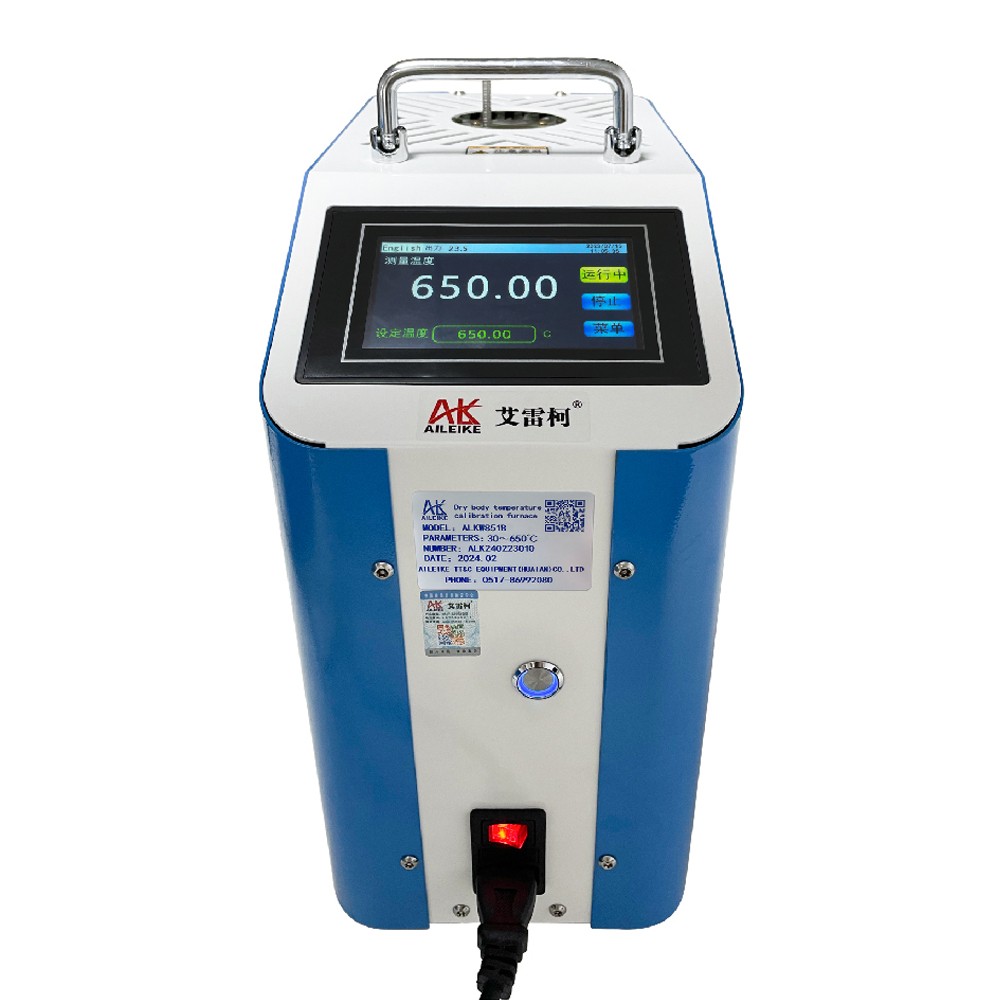

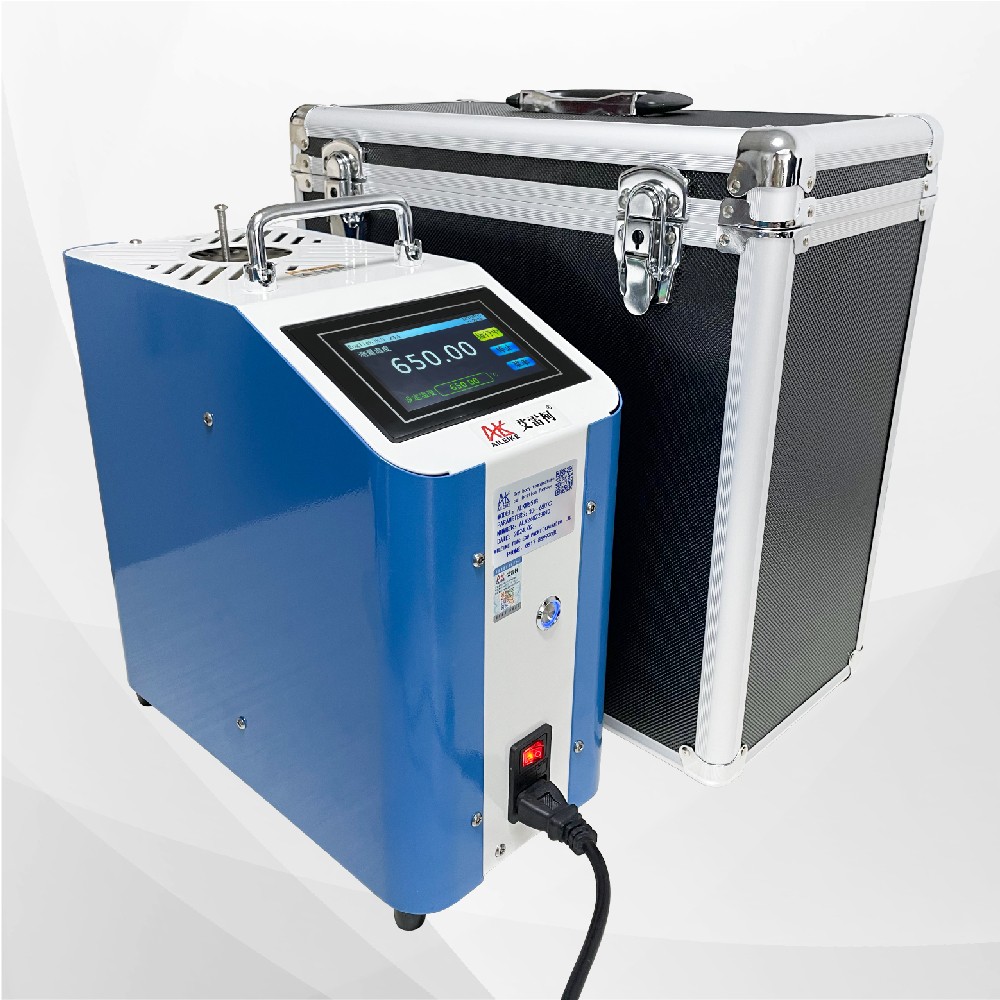

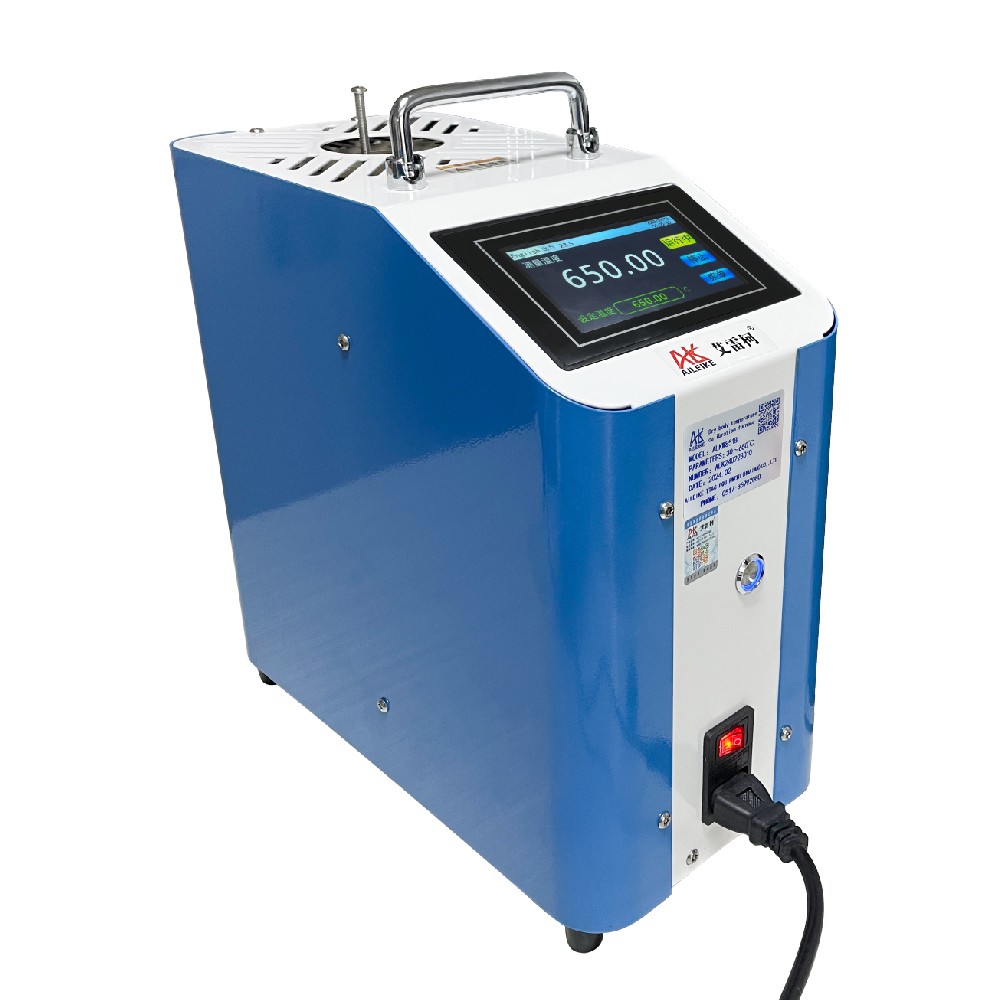

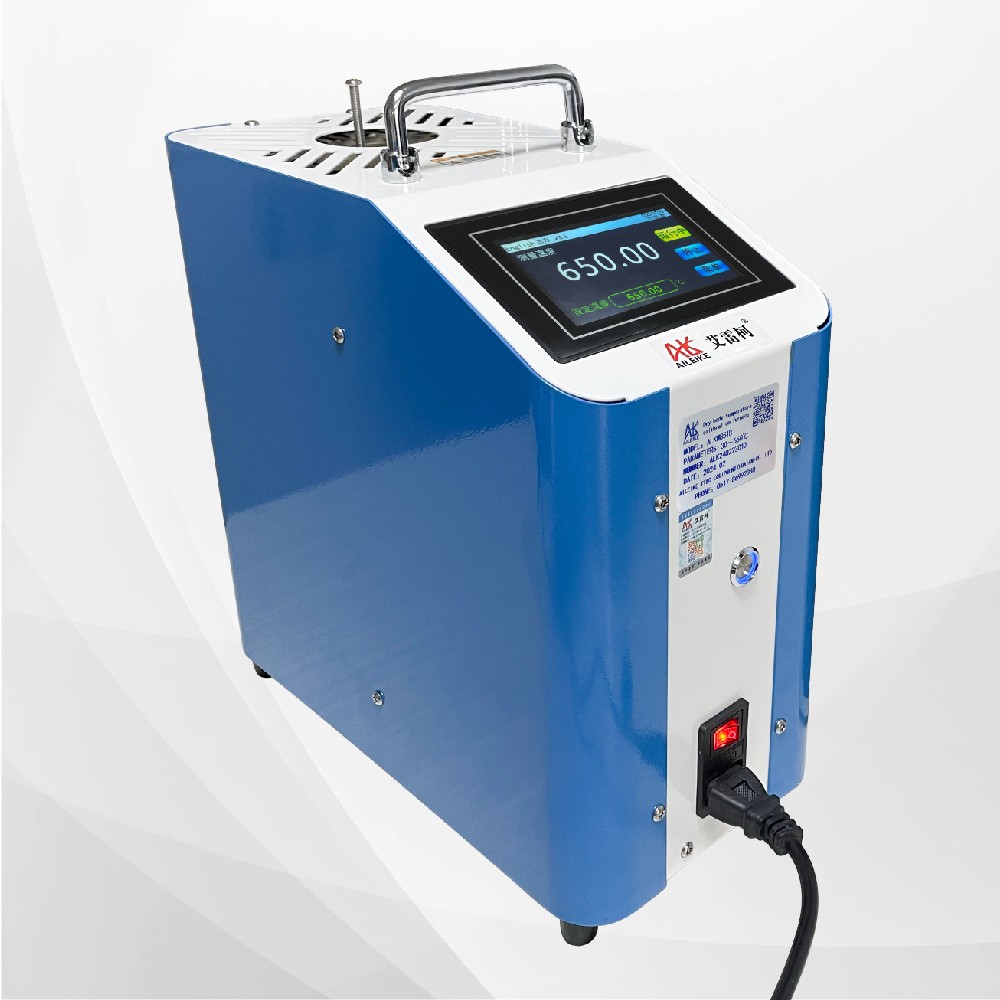

Temperature calibration furnace ALKW851B

1

2

3

4

5

6

Divergent heat dissipation

zone + homogeneous block

Portable handle

Temperature

-controlled liquid crystal

display

Heating and cooling

pause switch

Main power switch

Power cord jack

Product name

Dry body temperature test furnace

Model

ALKW851B

Temperature range

30~350℃//30~600℃/30~650℃

Heat source

Electric heating

Control method

LCD touch screen

Accuracy

0.1 level

Display resolution

0.01℃

Stability

±0.1℃

Uniformity

士0.1℃

Power supply

220V/50HZ 60HZ 600W

Calibration well depth

150mm

Well opening dimensions

32mm

Measurement hole diameter

∅6mm ,∅8mm , ∅10mm, ∅12mm( customizable )

Default display

Chinese/English switch

Operating temperature

20±2℃

Furnace size

360×165×330mm

Furnace weight

Approximately 8.7kg

Weight of instrument box

440×220×370mm

Instrument box size

Approximately 3.0kg

Product outer box size

520×300×450mm ( The packaging material is a wooden box )

Product outer box weight

Approximately 17kg

Standard Accessories

Power cord×1, Furnace core×1, User manual×1, Certificate of conformity×1, Matching packaging: Instrument case×1
