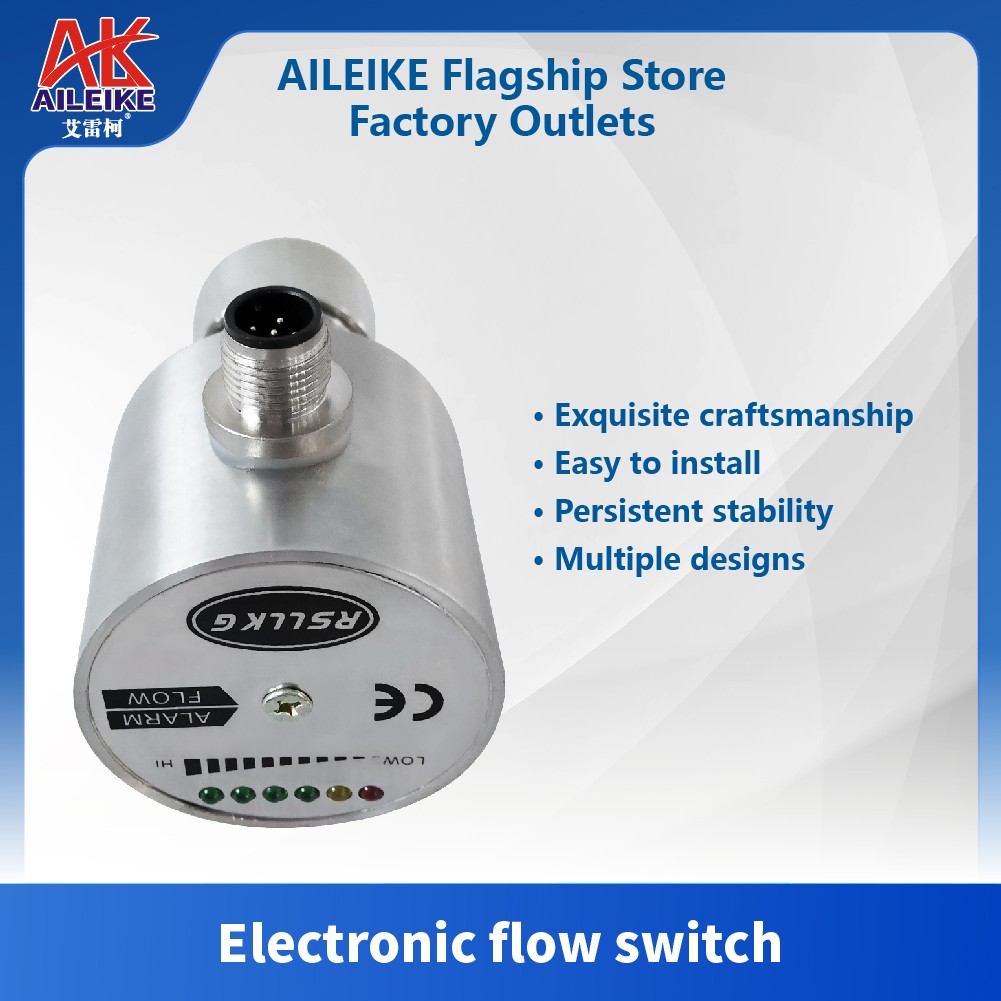

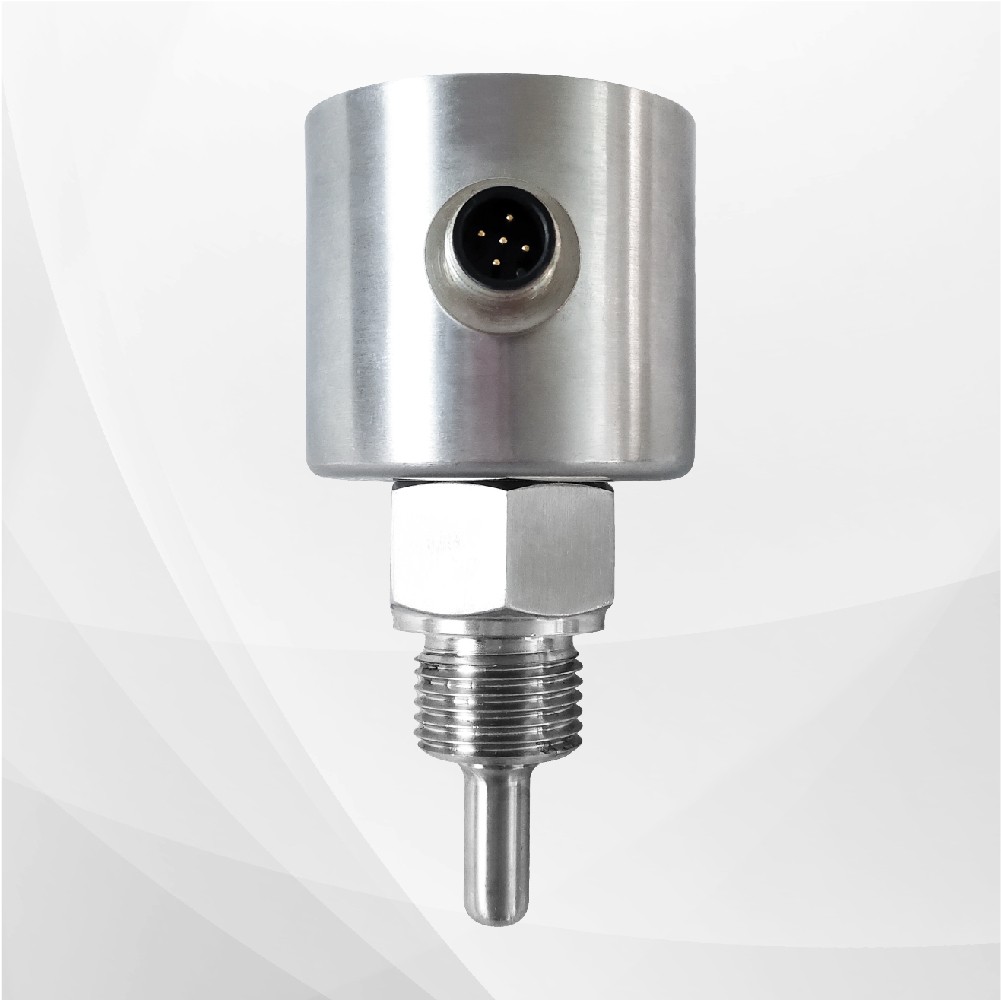

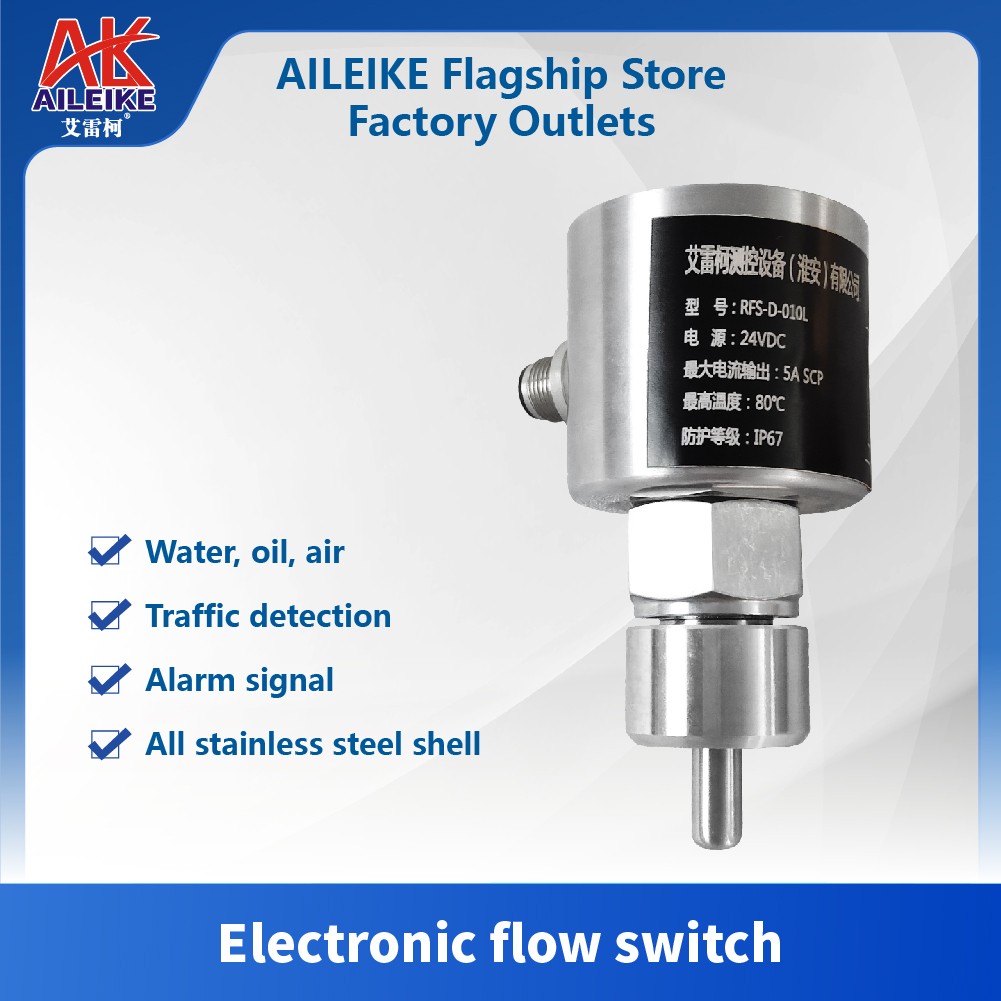

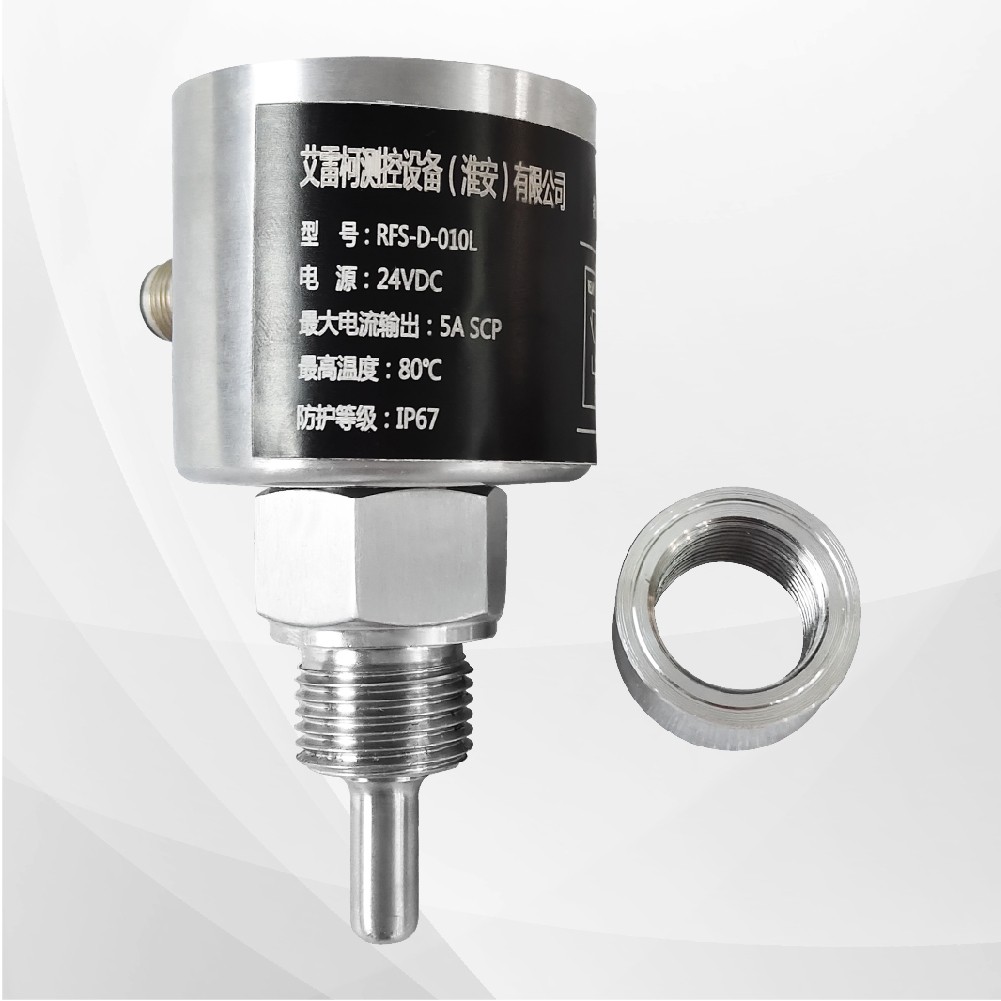

Electronic flow switch RFS-D-010L

وصف

Product Information
Product name	Electronic flow switch
Model	RFS-D-010L
Response time	1~13S, typical value 2S
Setting Range	1-150cm/s (water), 3-300cm/s (oil), 20-2000cm/s (air)
Output	PNP,NPN, Relay normally open+normally closed (SPDT)
Switched on	400mA (PNP or NPN type)/zui large 1A@48V(Relay type)
Connection	M12 connector/optional 2-meter direct attachment
Texture of material	Probe: Stainless steel shell: Stainless steel PBT
Power supply	24V±20%DC
Initialization time	About 8S
No-load current	Maximum 80mA
Electrical protection	Reverse, short circuit, overload protection
Traffic indication	LED row (6 pieces)
Protection grade	IP67
Setting method	Potentiometer setting
Medium temperature	-20~100℃
Voltage endurance range	100bar
Ambient temperature	-20~80℃
Product size	53x108x53mm
Weight	0.4kg
Product weight	Approximately 2.4kg
Product packaging size	140x100x100mm(The packaging material is cardboard box)
Repeatability	± 2% measurement value
Thread	Default G1/2 (customizable)
Pole length	Default 50mm (customizable)

Product Display
01	02	03
Compact probe	IP67 dustproof and waterproof	High temperature /high pressure resistance
Plug in installation is convenient Small probe can reduce water resistance Small traffic loss Strong anti pollution ability	LCD Chinese display Humanized data display The reading is intuitive and clear	Using standard stainless steel flange connection Good sealing and corrosion resistance

Stainless steel shell design

Base

Wiring port

Needle made of

copper alloy

Connect according to

the wiring instructions

Easy to install

No moving parts

Maintenance

free

Stainless

steel thread

Durable and resistant

to corrosion

Good toughness

and high plasticity

The length of

the probe can

be customized

Potentiometer

adjustment knob

Panel indicator light

Easy to debug and maintain

Compact structure LED display

Flow setting and adjustment:

After installing the flow switch and turning it on, first enter the initialization process (6 LED lights light up together, after 8S, other lights turn off in sequence, and the red light lights up). After the initialization process is completed, open the pipeline medium to flow. At this time, adjust the potentiometer adjustment knob to monitor the flow rate flow, so that the yellow light turns on exactly. Afterwards, when the flow rate is lower than the current value, the switch is released. To make the switch point smaller than the current flow rate, adjust the potentiometer to make the green LED light up more. Reduce clockwise and increase counterclockwise.
