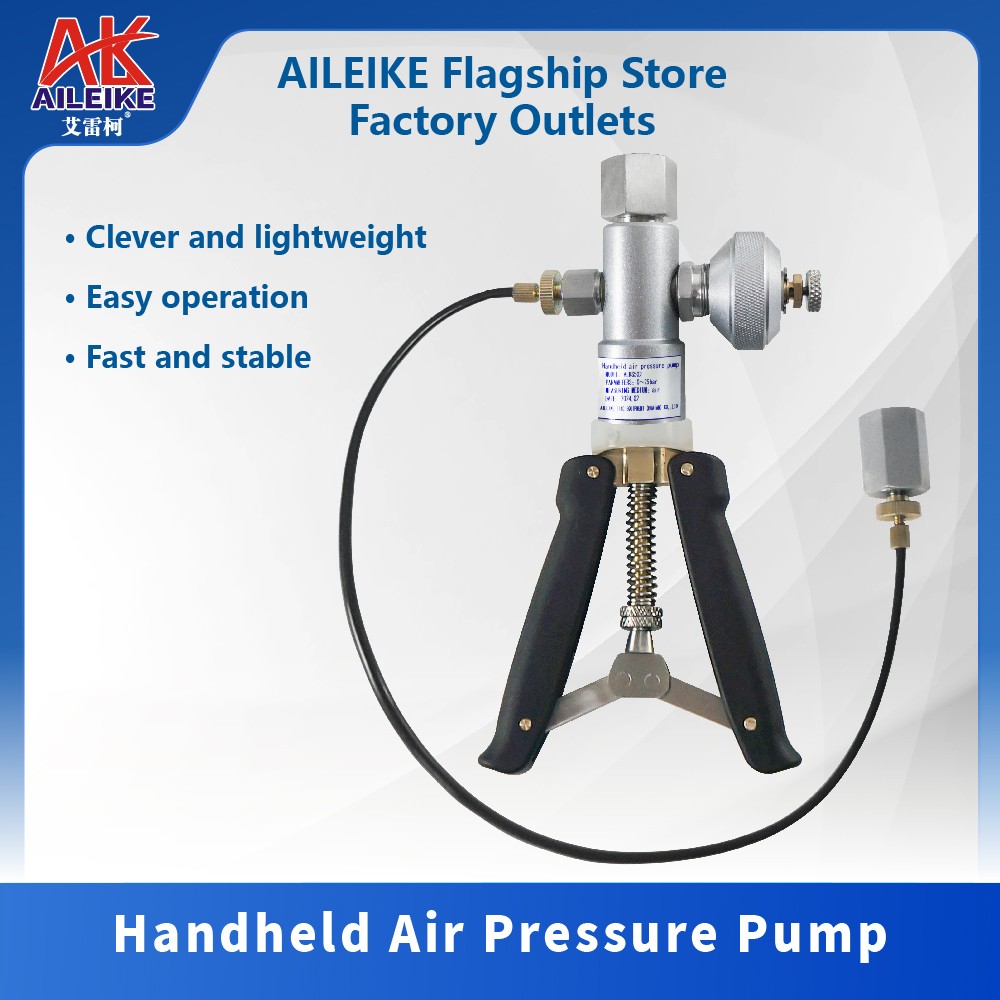

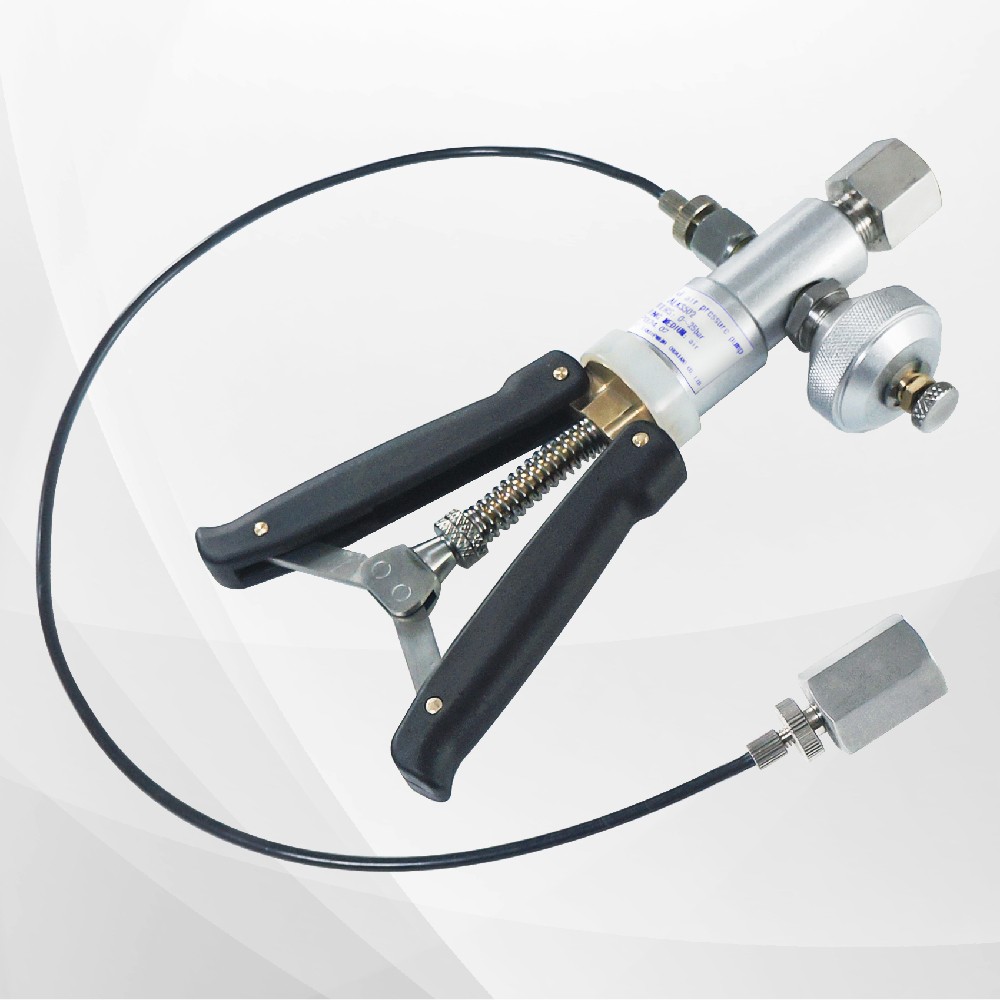

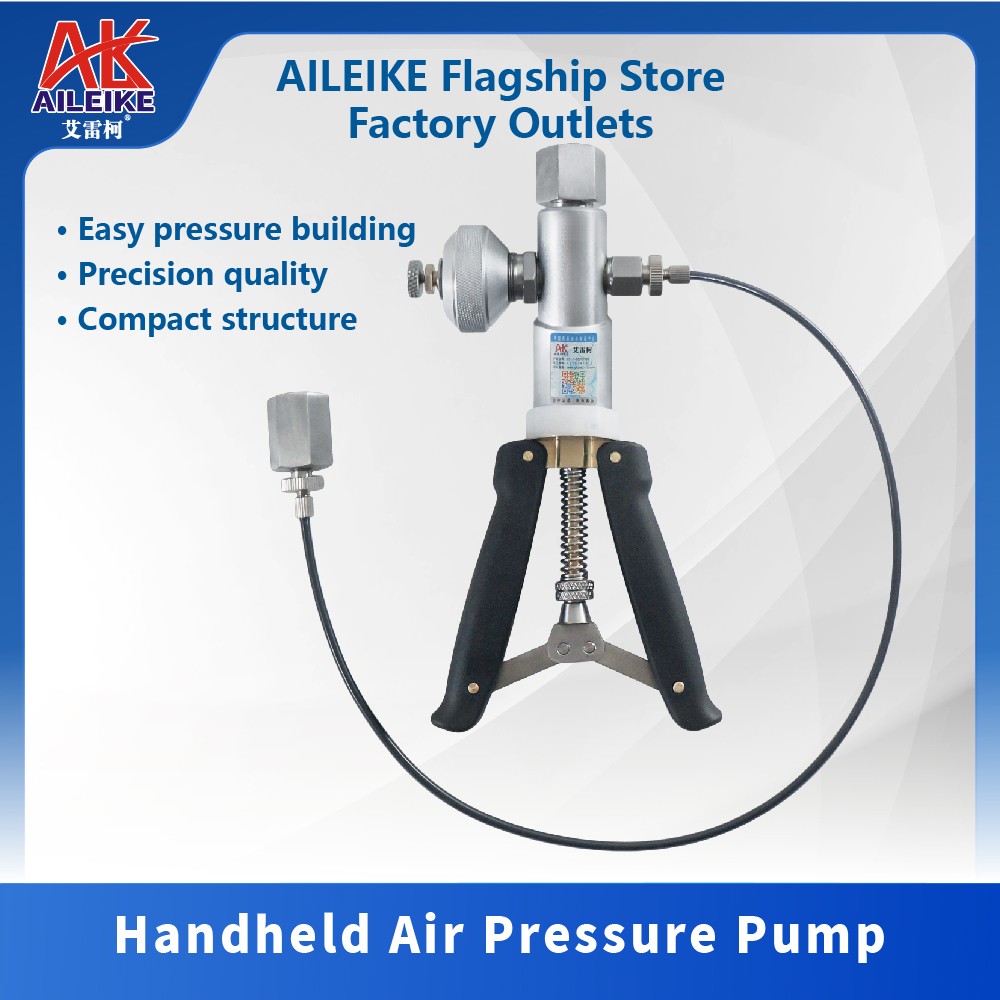

Handheld pressure pump ALKS502 0~25bar

①

②

③

④

⑤

Pressure outputport

Connection table

Connecting threads:

M20X1.5

Fine tuning

Increase or decreasepressure

within a smallrange

Pressure relief value

Close during suppressionRelease

gas at the endof measurement

Pressure output port

Connect to the checkedtable

Connecting threads:

M20X1.5

Pressure rod

Grip tightly andrelax Repeatedly

exerting pressure

Product name

Handheld Air Pressure Pump

Model

ALKS502

Measuring range

0~25bar

Environmentalconditions

Laboratory or field

Environmentaltemperature

0～50℃

Way of Pressure

Hand movement

Connecting threads

The default thread size for the pressure output port is M20 × 1.5. If other thread sizes are required, such as Bsp 1/2, G1/4, NPT1/4, G1/2, NPT1/2, etc., other special thread sizes can also be customized

Applicable medium

Clean air

Net weight

Approximately 0.8Kg

Size

220×110×55mm

Product weight

Approximately 3.3Kg

Product packaging size

310×290×160mm

Product standard

configuration

Certificate of conformity x 1 copy

Instructions x 1 copy

Quality assurance card x 1 copy

Sealing ring x 1 pack

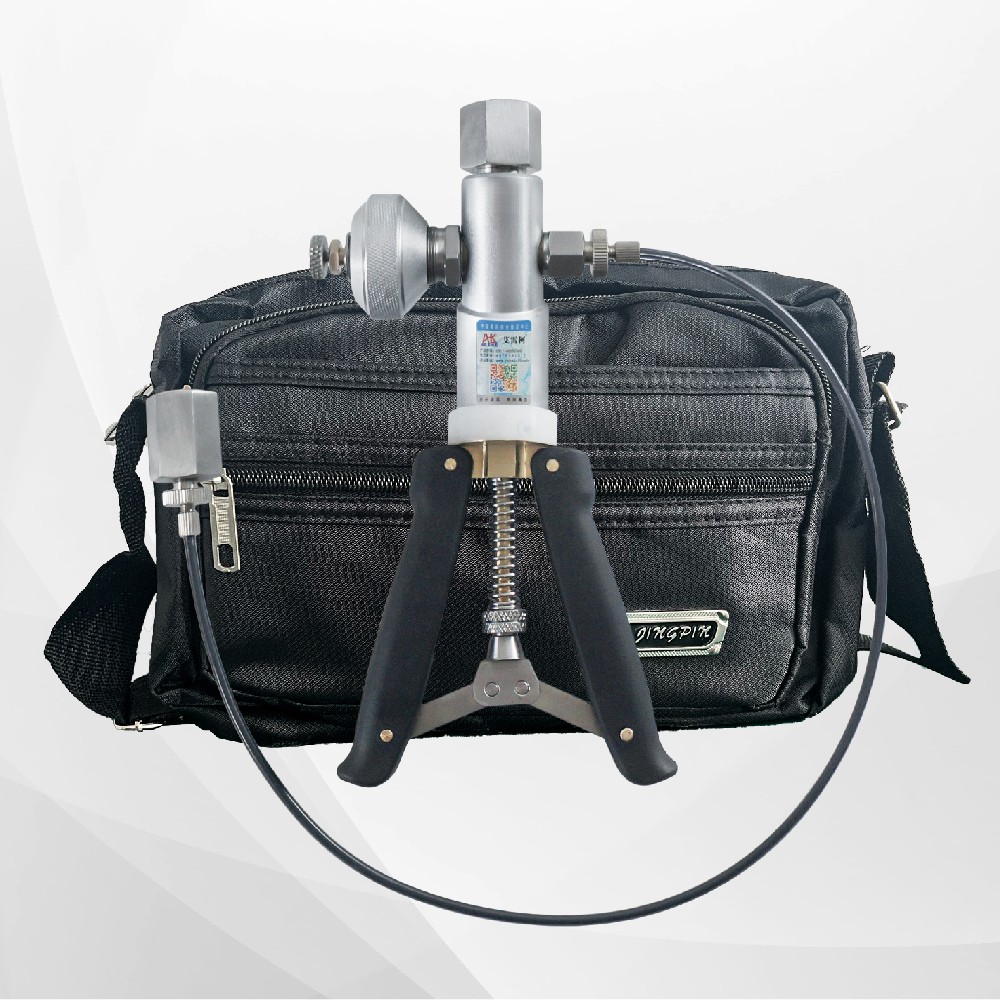

Portable bag x 1 piece

4 connector sets：

G1/4(F) M20x1.5(M)x 1 piece

G1/4(M) M20x1.5(M)x 1 piece

NPT1/4(F) M20x1.5(M)x 1 piece

NPT1/4(M) M20x1.5(M)x 1 piece
