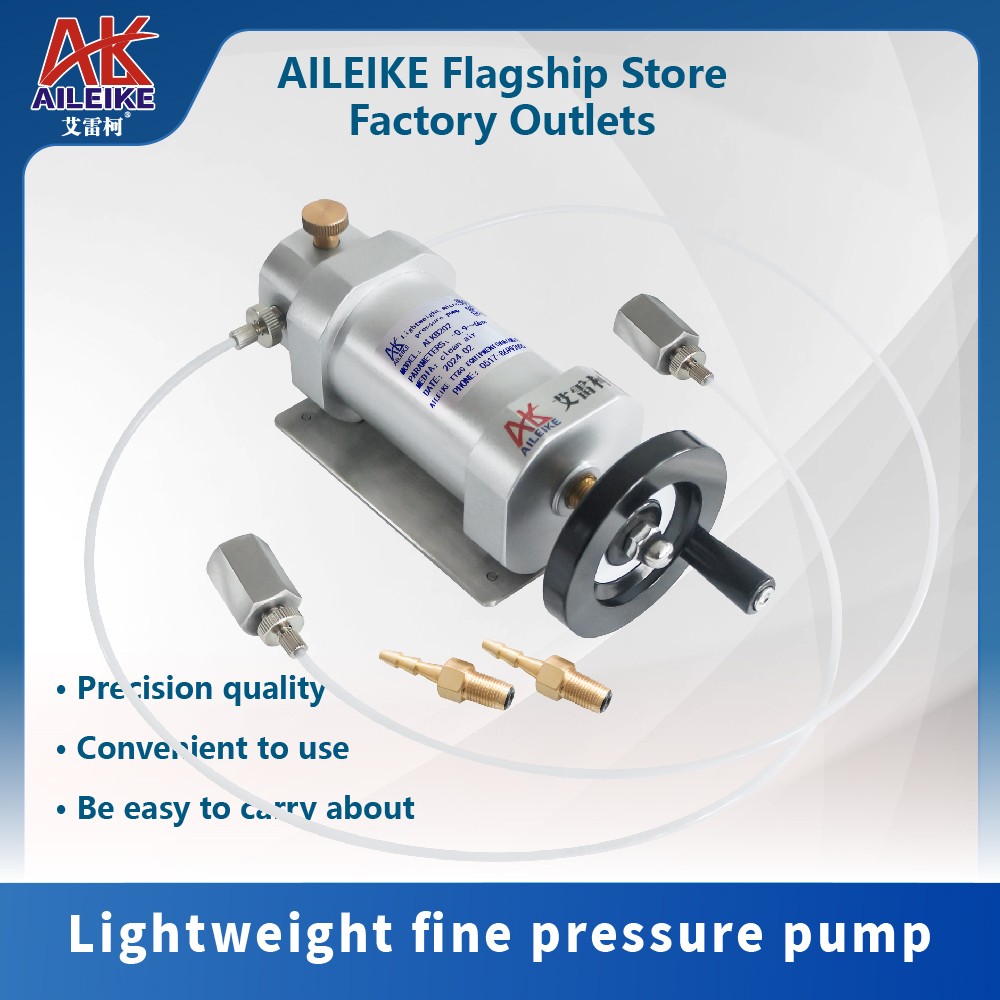

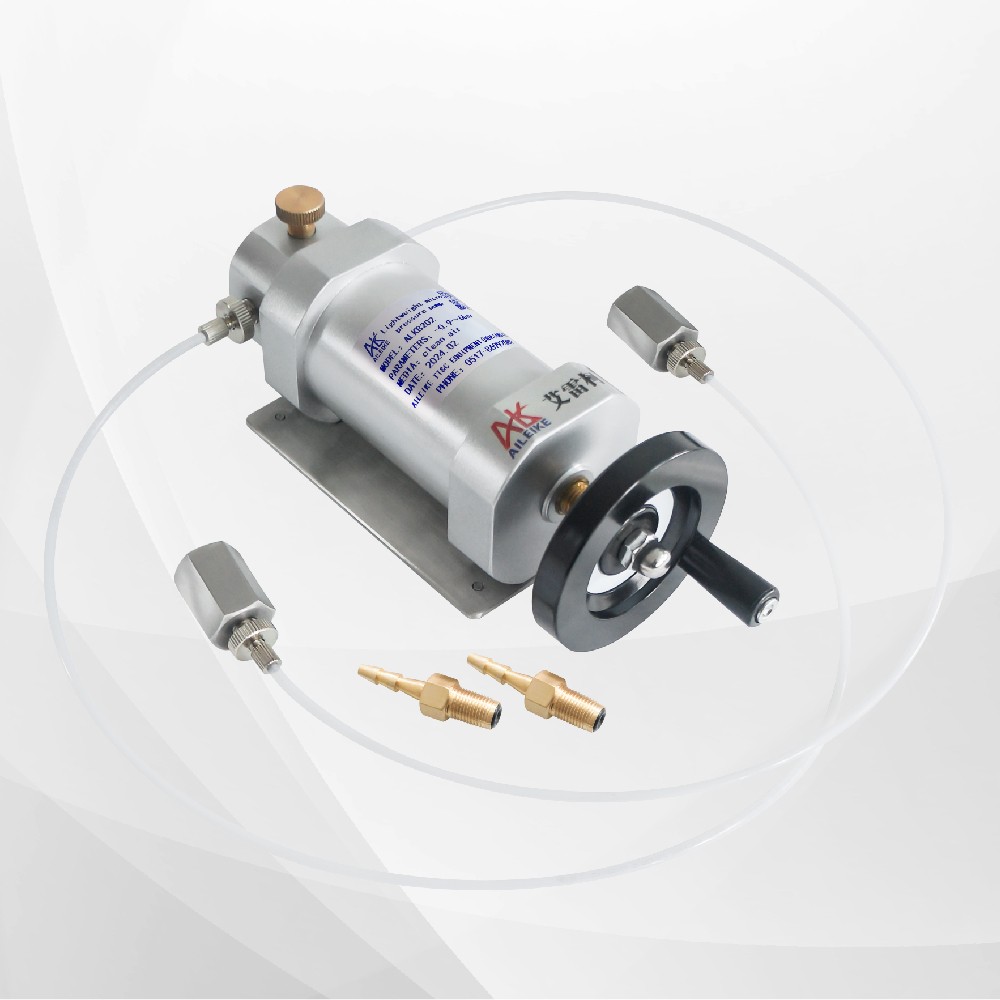

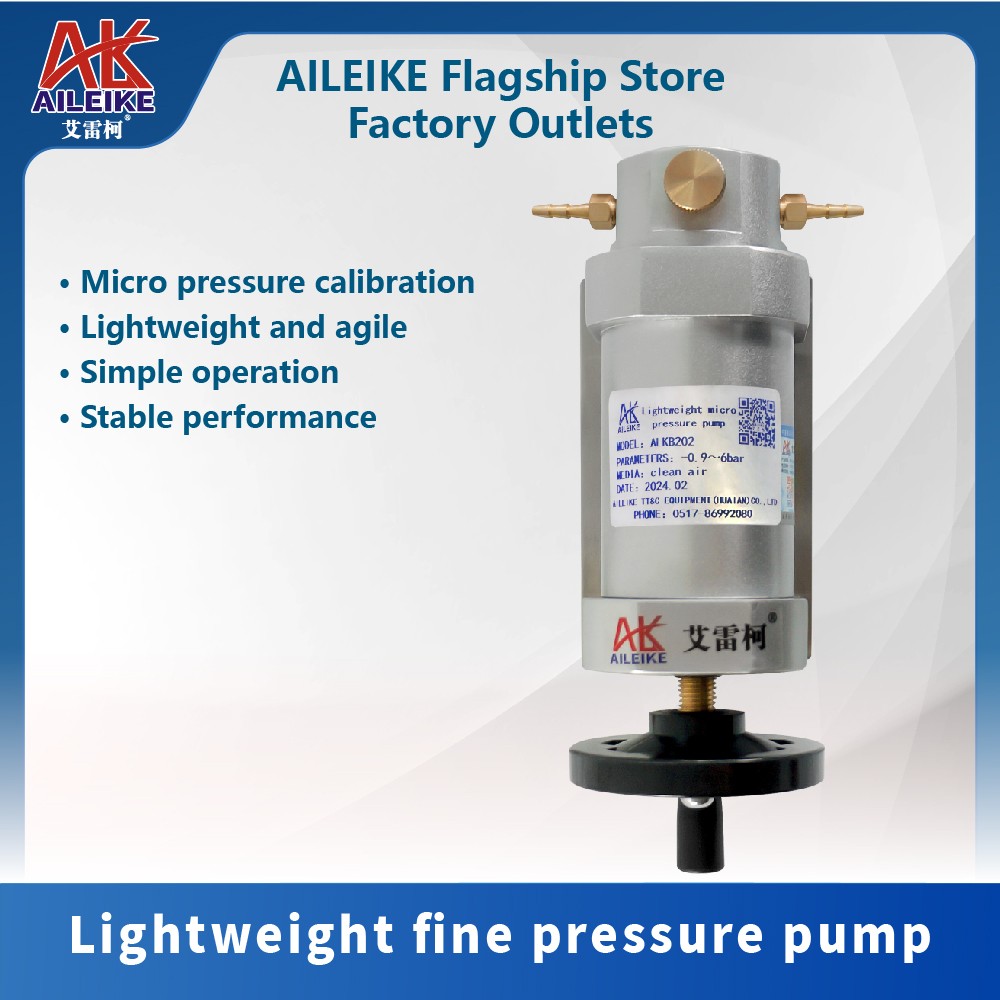

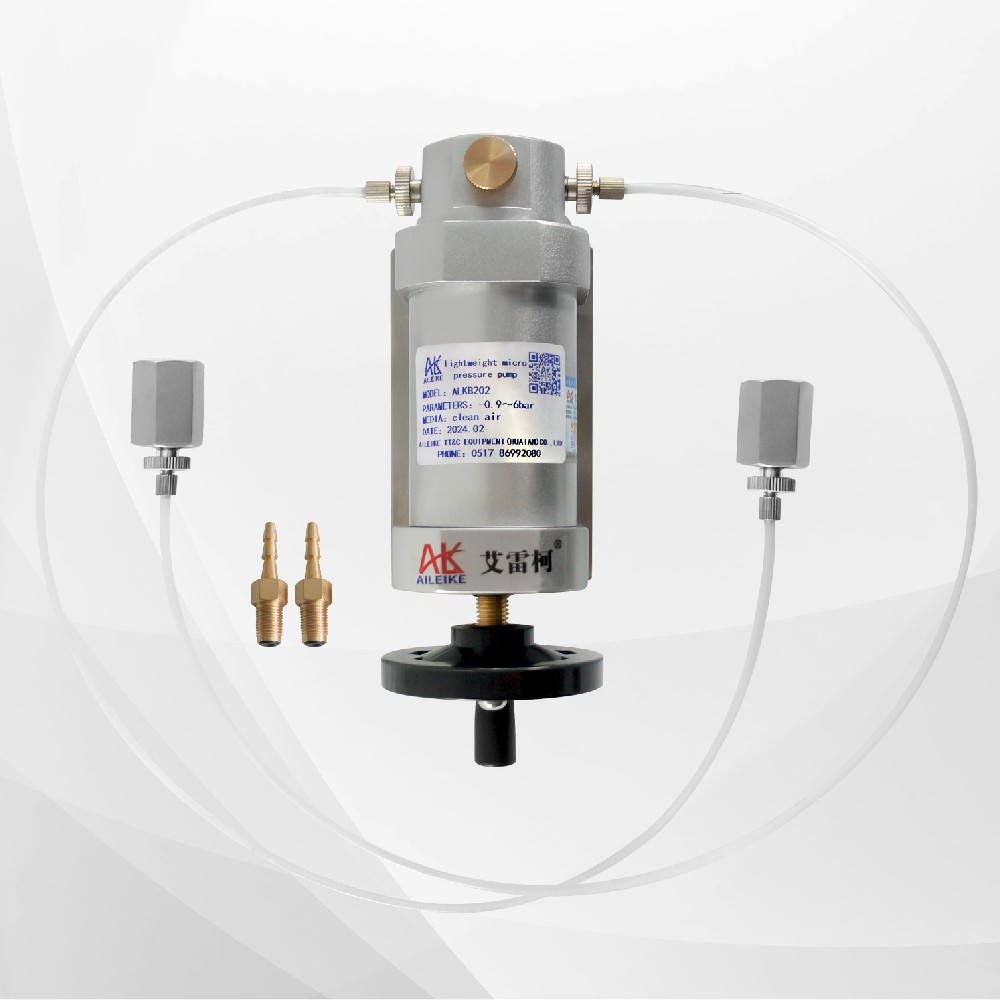

Portable micro-pressure pump ALKB202

1

2

3

4

Output 1

Connecting standard

tables or checklists

Connecting threads：

M20X1.5

Air release valve

Locking during pressurization

Open during back pressure

Fine tuning

Drive piston movement

through operation

Output 2

Connecting standard

tables or checklists

Connecting threads：

M20X1.5

Product name

Lightweight micro pressure pump

Model

ALKB202

Measuring range

-0.9~6 bar

Regulating fineness

10 pa

Output port

Two

Pressure connection

The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation.

Ambient temperature

-10~60℃

Measurement medium

Clean air

Way of Pressure

Hand movement

Net weight

Approximately 1.8kg

Size

220×80×90mm

Weight after packaging

Approximately 3.6kg

Product packaging size

320×300×270mm

Product standard configuration

Joint hose x2

Guiding hose x2

Guide joint x 2

Sealing ring x 4

Output port plug x 1

Instruction manual x 1

Certificate of conformity x 1

Warranty card x 1
