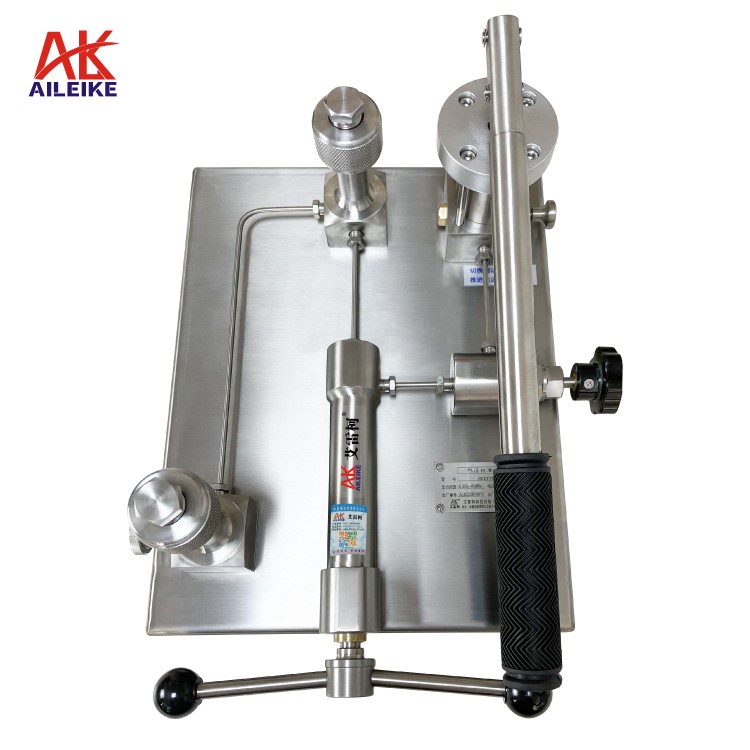

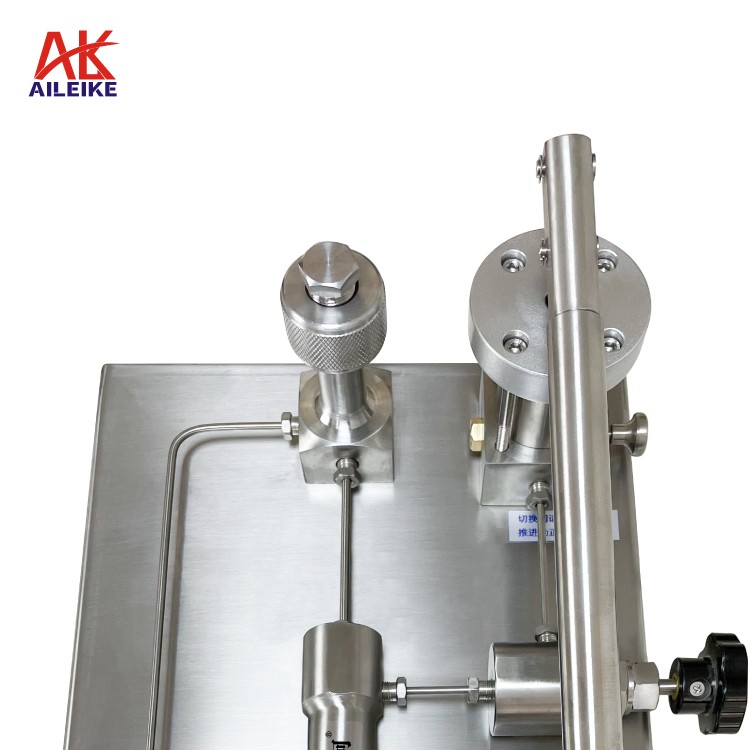

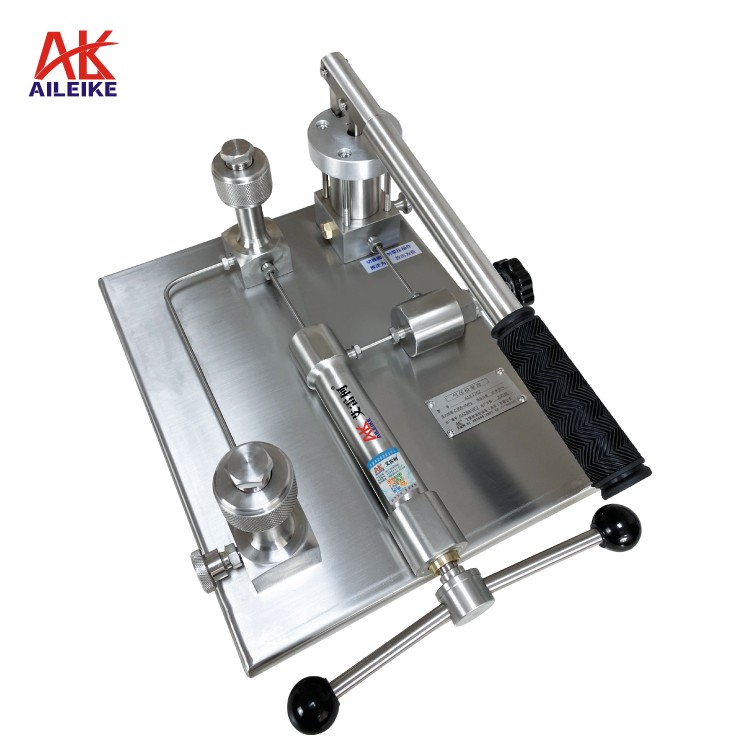

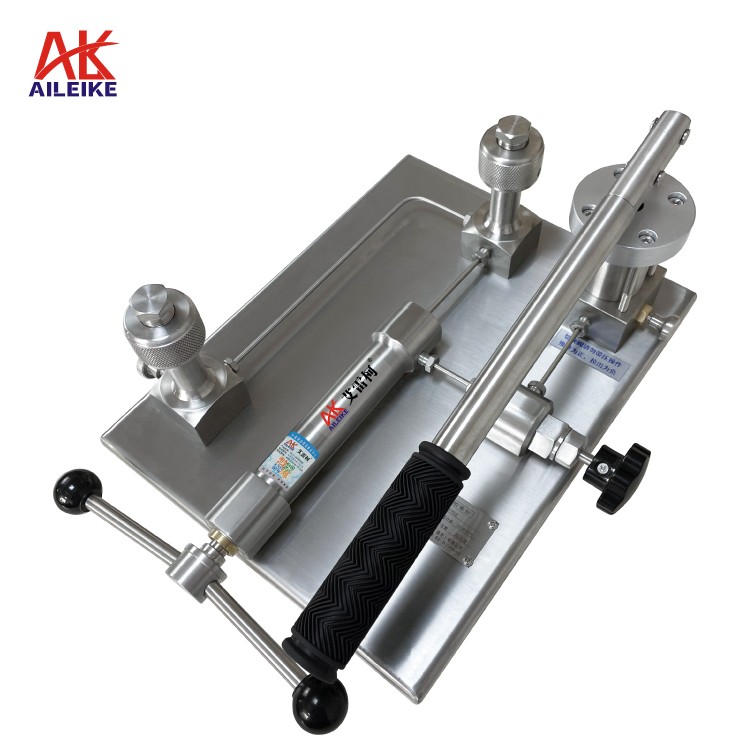

Air pressure calibration table ALKT702G

Output 2

Connecting standard

tables or checklists

Connecting threads：M20X1.5

Ｐiston

A device that

produces gas

through upward

and downward

movement

Pump body assembly

Output 1

Connecting

standard tables or

checklists

Connecting threads：

M20X1.5

Switching valve

Press in to measure

positing pressure

Pull out to measure

negative pressure

Vent valve

Close during

pressurization,

release gas at

the end of

measurement

Pressure

stabilizing valve

When the output

pressure is

unstable

Lock to maintain

stable pressure

Fine tuning

Small scle increase or

decrease

in pressure

Rod

Drive the piston column

to move through operation

Product name	Pressure table
Model	ALKT702G
Measuring range	-0.95~100 bar
Regulating fineness	10 pa
Output port	Two
Pressure connection	Quick thread (M20 × 1.5)
Ambient temperature	0~50℃
Measurement medium	Clean air
Way of Pressure	Hand movement
Net Weight	Approximately 9.0kg
Product size	420×320×190mm
Packaged weight	Approximately 9.8kg(packaging material is cardboard box)
Product packaging size	460×390×290mm
Product standard configuration	Certificate of conformity × 1 Instruction manual × 1 Quality assurance card × 1 Sealing ring × 2 Plugs × 2
