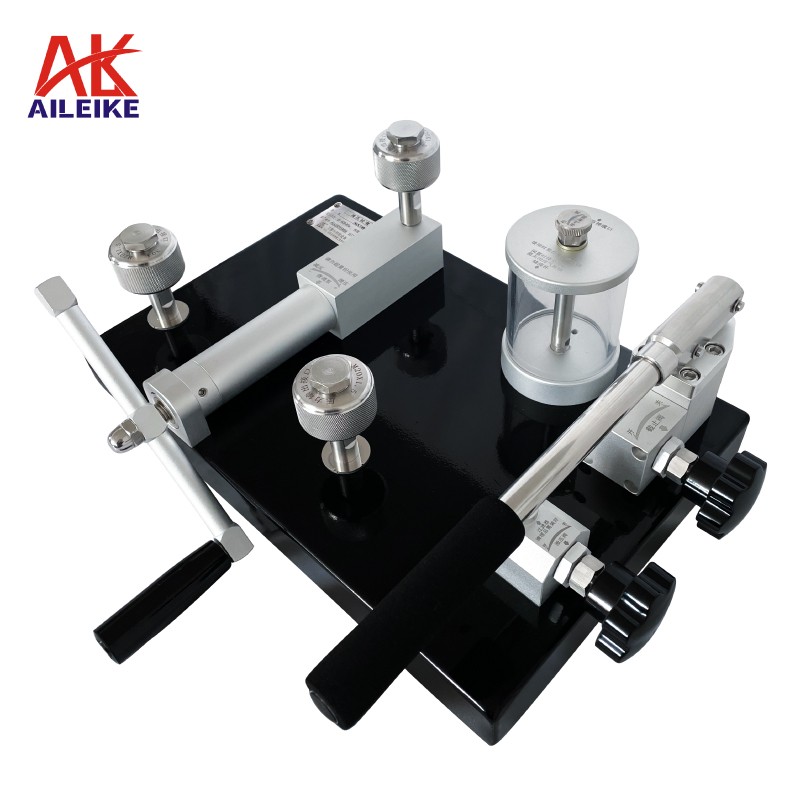

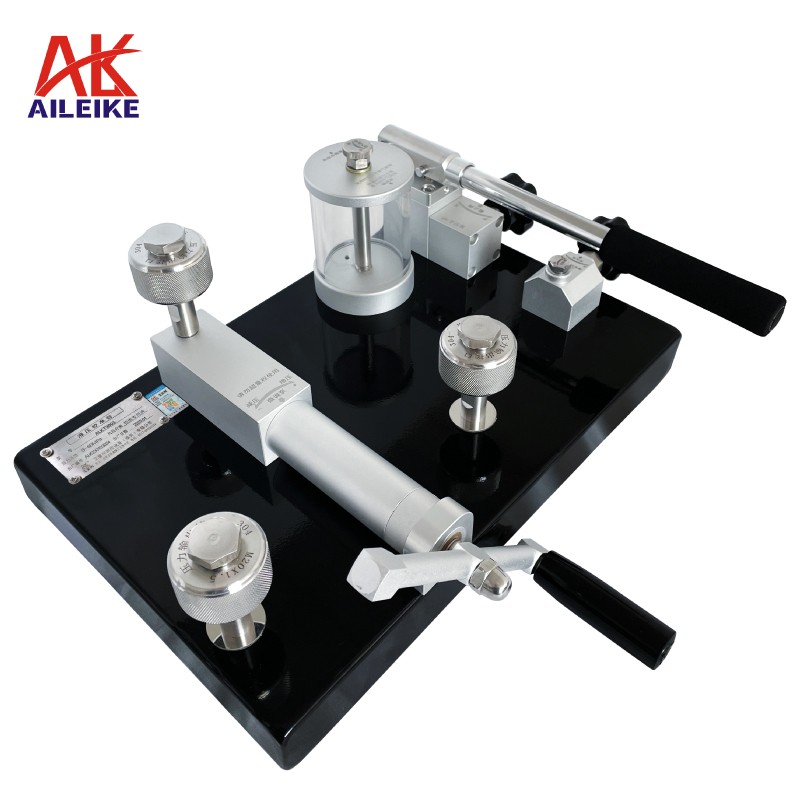

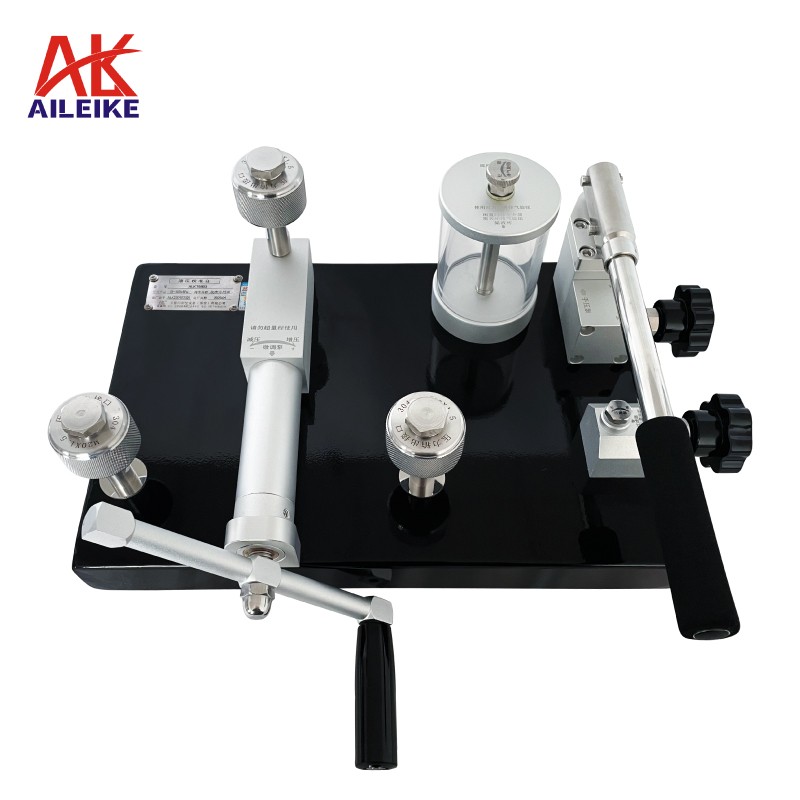

Hydraulic calibration table ALKT9803 0~600bar

01

02

Hydraulic calibration

Easy to create pressure

Rapid increase in voltage

Stable voltage reduction

Multiple measuring ranges

Customizable according

to requirements

1

2

3

4

5

6

7

8

9

10

11

Standard output port

Connecting threads：

M20X1.5

Nameplate

Liquid

storage cup

Exhaust

button

Exported

by the school

Connecting

threads：

M20X1.5

Stop valve

Filter

Pressure

relief valve

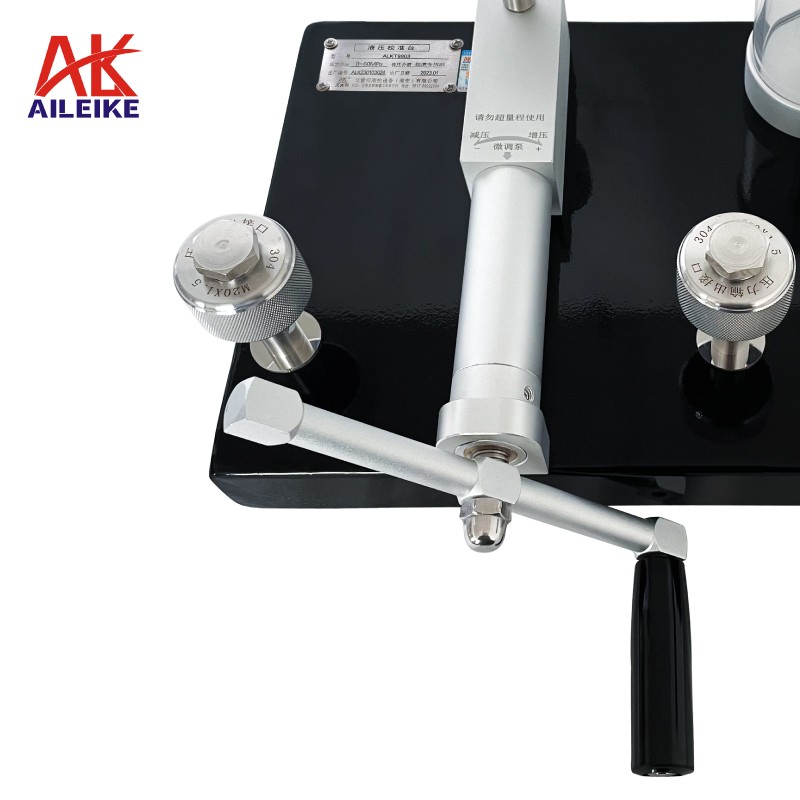

Fine tuning

Exported

by the school

Connecting

threads：

M20X1.5

Hand

pressure rod

Product name

Hydraulic calibration table

Model

ALKT9803

Measuring range

0~600bar/0~8700psi/0~60MPa (Pressure selectable)

Adjust the fineness

100pa

Output port

Three

Pressure connection

The default thread size for the pressure output port is M20 × 1.5(F). If you need other thread sizes, please contact us for consultation.

Ambient temperature

0~50℃

Measurement medium

Store purified water or transformer oil 25#

Pressurization method

Hand movement

Net Weight

Approximately 7.3kg

Product size

380×350×170mm

Packaged weight

Approximately 9.5kg(packaging material is cardboard box)

Product packaging size

460×410×230mm

Product standard configuration

Certificate × 1 instruction × 1 quality assurance card × 1 seal ring × 3 plug × 3
