وصف
|

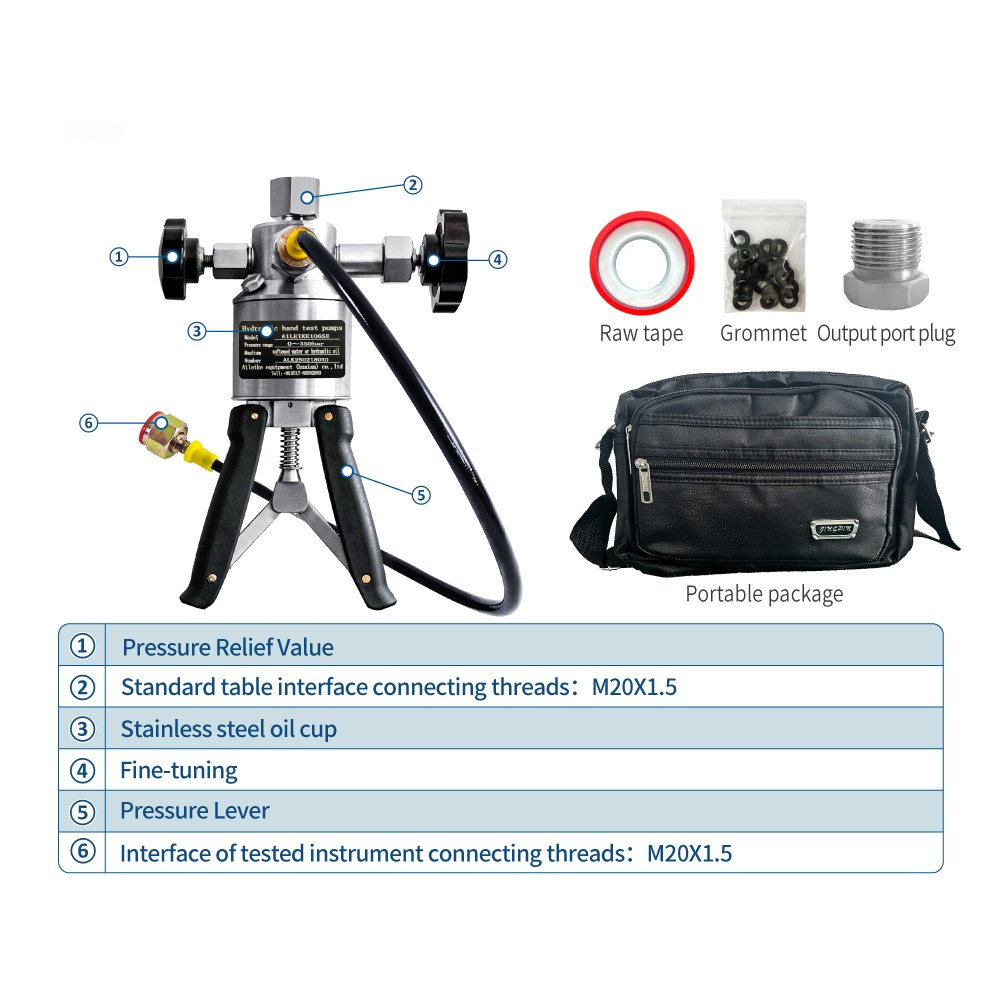

① |
② |
③ |
④ |
⑤
|
⑥ |
|
Pressure Relief Value |
Standard table interface Connecting threads： M20X1.5
|
Stainless steeloil cup |
Fine-tuning |
Pressure Lever |
Interface of tested instrument Connecting threads： M20X1.5 |
|

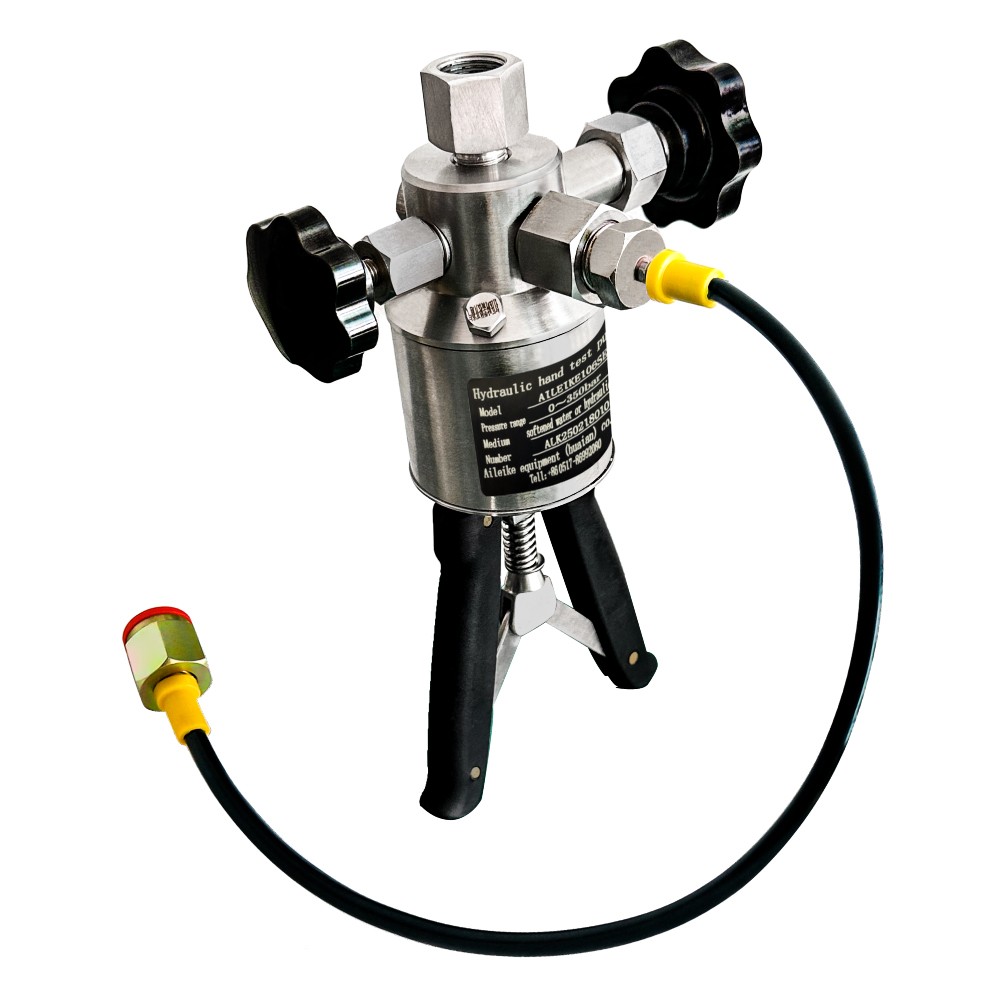

Product name |
Handheld hydraulic pump |
|
Model |
AILEIKE106SE |
|
Measuring range |
0~350bar |
|
Environmental conditions |
Laboratory or field |
|
Way of Pressure |
Hand movement |
|
Basic thread |
M20×1.5 |
|
Applicable medium |
Softened water or hydraulic oil |
|
Net weight |
Approximately 2.3Kg |
|

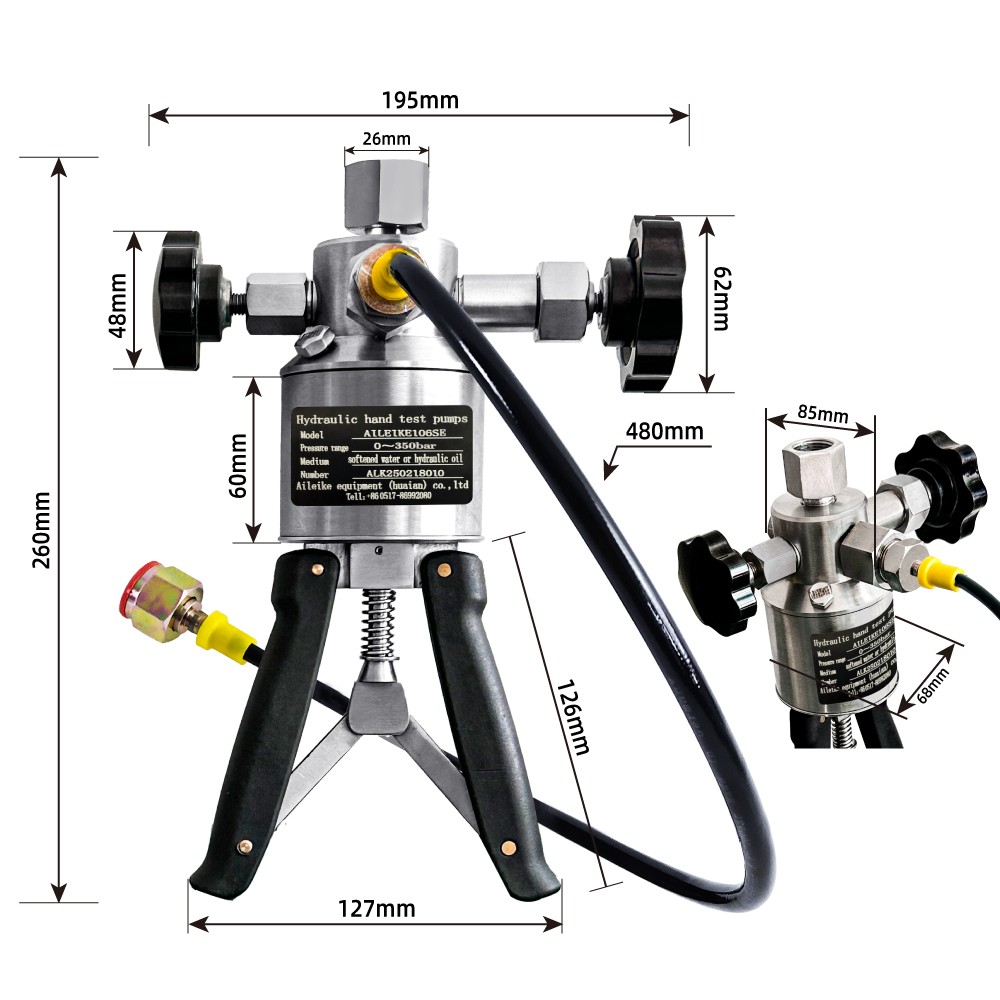

Size |
260×195×85mm |
|
Weight after product packaging |
Approximately 5.3Kg |
|
Product packaging size |
360×340×190mm |
|

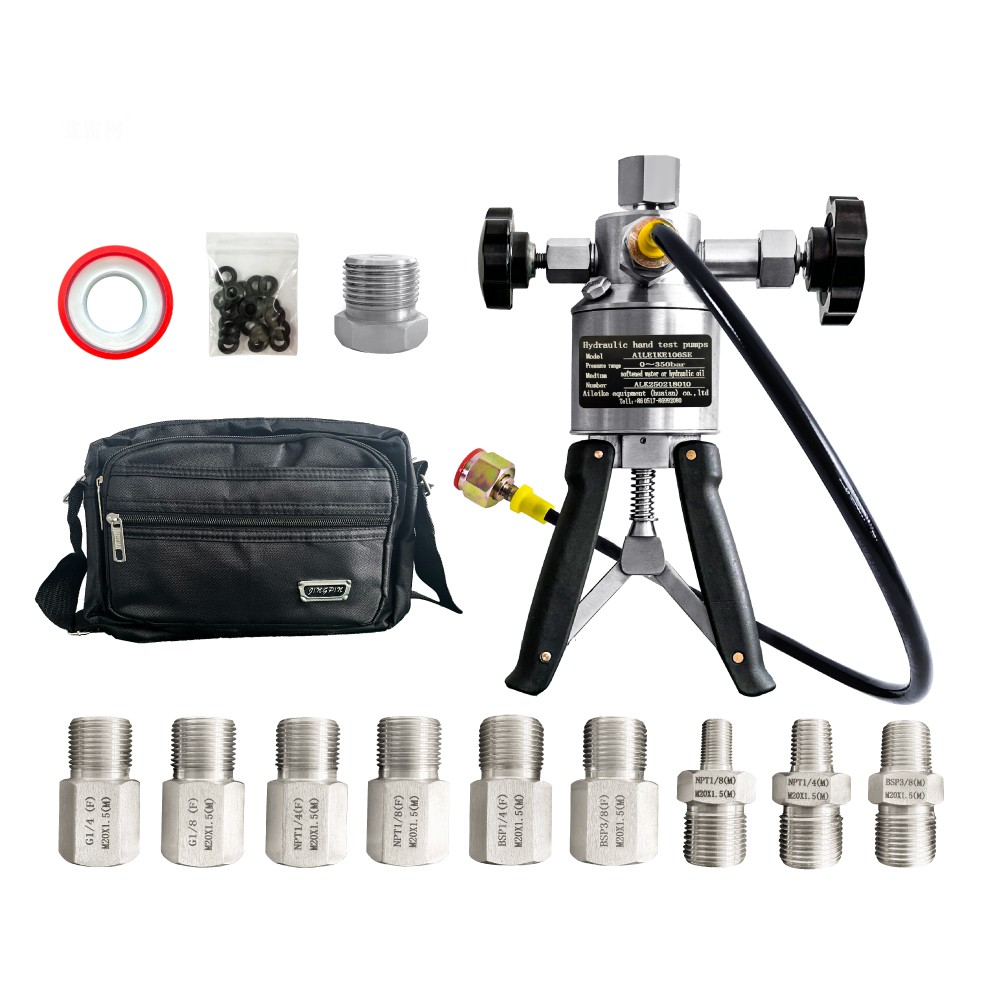

Product standard configuration |
Certificate of conformity x 1 copy Instructions x 1 copy Quality assurance card x 1 copy Output portplug x 1 piece Portable bag x 1 piece Gaskets x 40 piece PTFE sealing tape x 1 piece Pressure conversion joint x 9 piece |
|
Equipped with nine conversion joints |
|
|
M20X1.5(M) G1/4(F) |
1 piece |
|
M20X1.5(M) G1/8(F) |
1 piece |
|
M20X1.5(M) NPT1/4(F) |
1 piece |
|
M20X1.5(M) NPT1/8(F) |
1 piece |
|
M20X1.5(M) BSP1/4(F) |
1 piece |
|
M20X1.5(M) BSP3/8(F) |
1 piece |
|
M20X1.5(M) NPT1/8(M) |
1 piece |
|
M20X1.5(M) NPT1/4(M) |
1 piece |
|
M20X1.5(M) BSP3/8(M) |
1 piece |
